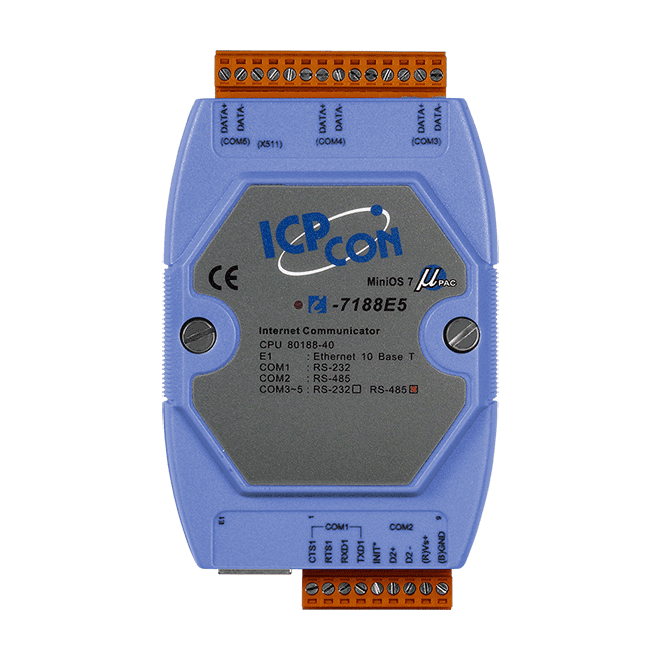

I-7188E5-485 Programmable Ethernet to Serial Converter, 1x RS-232 + 4x RS-485
Programmable device server that brings one RS-232 and four RS-485 serial ports onto Ethernet, with Virtual COM or raw TCP access for existing serial devices.
- One RS-232 and four RS-485 serial ports bridged to a 10BASE-T Ethernet connection
- Virtual COM driver for 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016, or raw TCP connection
- Programmable through the Xserver structure, running on the built-in MiniOS7 from ICP DAS
- Serial baud rates up to 115200 bps with even, odd or no parity and 7 or 8 data bits
- Watchdog timer for use in harsh environments
- Removable on-board terminal block for straightforward field wiring
303,00 € pro Stück
| 1–9 Stück | 303,00 € | |
|---|---|---|
| 10–30 Stück | 294,00 € | −3 % |
| ab 31 Stück | 288,00 € | −5 % |
Produktinformationen "I-7188E5-485 Programmable Ethernet to Serial Converter, 1x RS-232 + 4x RS-485"
I-7188E5-485 is a programmable Ethernet device server that links a mix of RS-232 and RS-485 serial equipment to a TCP/IP network. Each of its five serial ports, one RS-232 and four RS-485, can be reached over Ethernet, so legacy devices can be integrated without replacing them.
Engineers can expose the serial ports to a Windows host as Virtual COM ports using the VxComm driver, or open raw TCP connections from their own software. The built-in Xserver programming structure and the MiniOS7 operating system allow custom Ethernet logic to be developed and deployed on the unit, with the MiniOS7 boot time quoted at about one second.
The unit is built for industrial wiring and environments, with a removable on-board terminal block, a watchdog timer, reverse polarity protection on its non-regulated +10 to +30 VDC supply, and an operating range of -25 to +75 °C. Its compact housing measures 123 x 72 x 33 mm.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 5 serial |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) 4 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Technische Daten laut Hersteller. Änderungen vorbehalten.
