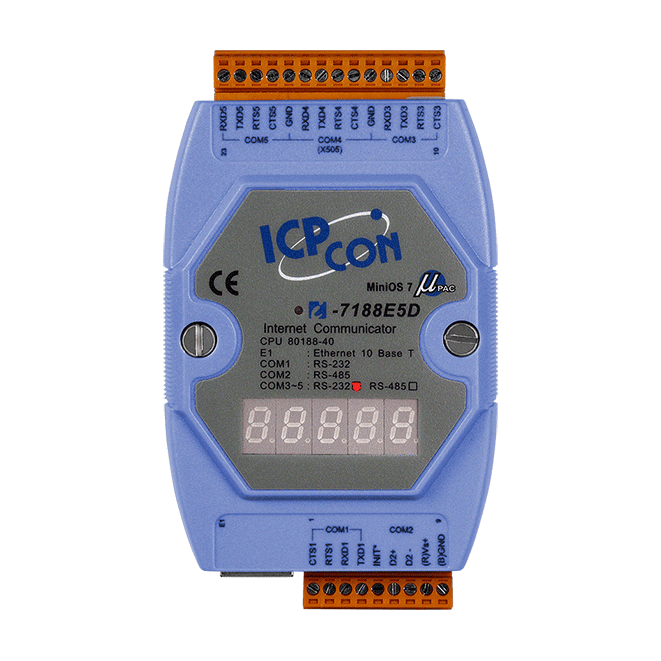

I-7188E5D Ethernet to 5-Port Serial Converter, 4x RS-232 and 1x RS-485
Programmable device server linking four RS-232 and one RS-485 serial devices to Ethernet, with Virtual COM or raw TCP access and an LED status display.
- Converts four RS-232 ports and one RS-485 port to Ethernet
- Virtual COM or raw TCP data transmission
- VxComm driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in MiniOS7 with Xserver programming structure
- Watchdog timer for use in harsh environments
- Palm-sized housing with multiple serial ports
322,00 € pro Stück
| 1–9 Stück | 322,00 € | |
|---|---|---|
| 10–30 Stück | 312,00 € | −3 % |
| ab 31 Stück | 306,00 € | −5 % |
Produktinformationen "I-7188E5D Ethernet to 5-Port Serial Converter, 4x RS-232 and 1x RS-485"
The I-7188E5D is a programmable device server that brings four RS-232 ports and one RS-485 port onto an Ethernet network. Serial devices can be reached either through Virtual COM ports on a Windows host or through raw TCP connections, which suits both legacy PC software and custom network applications.
Its built-in MiniOS7 and Xserver programming structure let engineers build their own Ethernet logic on a compact, palm-sized unit. A watchdog timer supports operation in harsh environments, and the status LED display gives a quick visual check of the unit. The power input accepts non-regulated +10 VDC to +30 VDC and includes reverse polarity protection.
Typical choices for this unit are cases where several serial devices must be consolidated onto Ethernet within factory, building or home automation installations. The removable terminal block simplifies wiring during installation.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Device server |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | raw TCP |
| Ports: | 5 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 4 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 3W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Technische Daten laut Hersteller. Änderungen vorbehalten.
