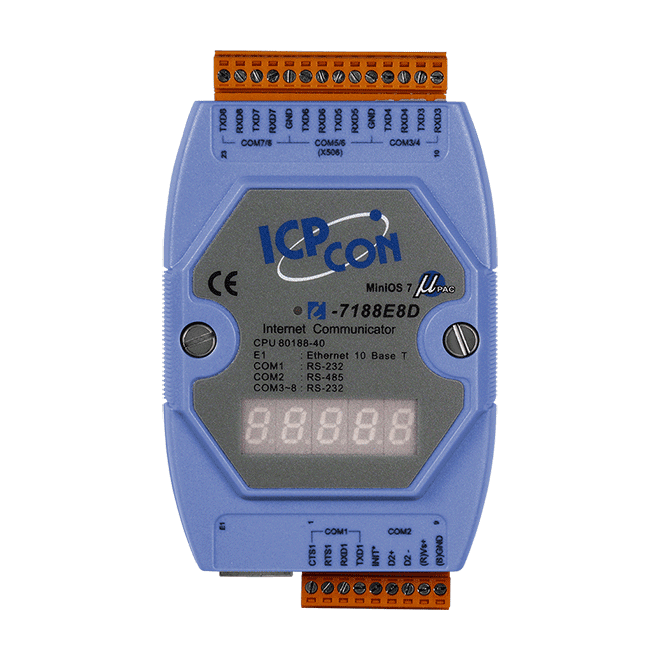

I-7188E8D Programmable Ethernet to Serial Converter, 7x RS-232 / 1x RS-485
Programmable device server that brings seven RS-232 ports and one RS-485 port onto Ethernet, with Virtual COM or raw TCP access and a built-in MiniOS7 runtime.
- Eight serial ports in total: seven RS-232 and one RS-485
- Virtual COM operation via the VxComm driver, or raw TCP connection
- Programmable with the built-in MiniOS7 and Xserver structure
- Watchdog timer for use in harsh environments
- Removable terminal block connector for industrial wiring
- Serial baud rates up to 115200 bps, with even, odd or no parity and 7 or 8 data bits
358,00 € pro Stück
| 1–9 Stück | 358,00 € | |
|---|---|---|
| 10–30 Stück | 347,00 € | −3 % |
| ab 31 Stück | 340,00 € | −5 % |
Produktinformationen "I-7188E8D Programmable Ethernet to Serial Converter, 7x RS-232 / 1x RS-485"
I-7188E8D is a programmable Ethernet device server for connecting eight serial devices to a network: seven RS-232 ports and one RS-485 port. It belongs to the I-7188EN device server family and suits engineers who need legacy serial equipment to be reachable over TCP/IP without redesigning the device.
Serial data can be carried either through Virtual COM ports, using the VxComm driver on supported 32-bit and 64-bit Windows systems, or over a raw TCP connection for custom host software. The built-in MiniOS7 and Xserver programming structure allow the unit to be adapted to individual Ethernet applications.
The unit has a removable on-board terminal block for wiring, a watchdog timer, a status LED and reverse polarity protection on its non-regulated +10 VDC to +30 VDC supply. It is housed in a compact enclosure measuring 123 mm x 72 mm x 33 mm, with an operating range of -25 °C to +75 °C.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 8 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) 6 x RS-232 (TXD, RXD, GND) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 3W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Technische Daten laut Hersteller. Änderungen vorbehalten.
