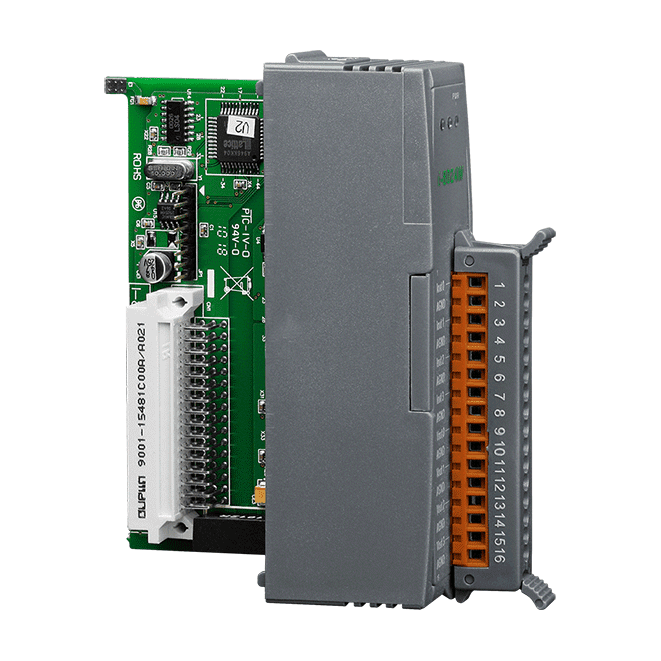

I-8024W-G 4-Channel Analog Output Module, ±10 VDC / 0 ~ +20 mA
14-bit, 4-channel analog output module for the I-8K/I-87K High Profile series. Each channel is set individually to ±10 VDC or 0 ~ +20 mA, with ±4 kV ESD protection per terminal.
- Four analog output channels, each individually configurable for voltage or current output
- Output ranges of ±10 VDC or 0 ~ +20 mA
- 14-bit resolution with ±0.1% of FSR voltage accuracy and ±0.2% of FSR current accuracy
- 25 µs response time per channel
- ±4 kV ESD contact protection for each terminal
- Intra-module isolation and RF immunity matching IEC 61000-4-3
259,00 € pro Stück
| 1–9 Stück | 259,00 € | |
|---|---|---|
| 10–30 Stück | 251,00 € | −3 % |
| ab 31 Stück | 246,00 € | −5 % |
Produktinformationen "I-8024W-G 4-Channel Analog Output Module, ±10 VDC / 0 ~ +20 mA"
I-8024W-G is a 14-bit analog output module with four single-ended sink channels. Each channel can be configured independently for ±10 VDC voltage or 0 ~ +20 mA current output, so a single module can handle either signal type without a separate module for each.
The module offers RF immunity matching IEC 61000-4-3, ±4 kV ESD contact protection on each terminal and intra-module isolation. A 25 µs response time per channel supports fast output updates, and readback accuracy of ±1% of FSR allows output values to be verified.
- Suited to building, factory and machine automation I/O
- Part of the I-8K/I-87K High Profile series
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog output module |
|---|---|
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Output | |
| Channels | 4 Sink |
| Type | Voltage Current |
| Range | ±10 VDC, 0 ~ +20 mA |
| Resolution | 14-bit |
| Accuracy | Voltage: ±0.1% of FSR Current: ±0.2% of FSR |
| Zero Drift | Voltage: ±30 μV/ °C Current: ±0.2 μA/ °C |
| Span Drift | ±20 ppm/°C |
| Response Time | 25 us per channel |
| Programmable Output Slope | Voltage: 0.72 V /us Current: 0.107 mA /us |
| Readback Accuracy | ±1% of FSR |
| Voltage Output Capability | 10 VDC @ 20 mA |
| Current Load Resistance | External +24 VDC: 1050 Ω |
| Power | |
| Consumption | 2 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
