I-8041W-G 32-ch Isolated Sink DO Module, 5~30 VDC
32-channel isolated open-collector digital output module with sink-type NPN outputs, 5~30 VDC load voltage and 100 mA per channel. Supplied with a CA-4002F DB37 female connector.
- 32 isolated digital output channels, each photocoupler isolated
- Sink-type open-collector outputs, load voltage +5 ~ +30 VDC
- 100 mA load current per channel
- 32 LED indicators for channel status plus one power and communication LED
- ±4 kV ESD contact protection per terminal
- 3750 Vrms intra-module isolation
148,00 € pro Stück
| 1–9 Stück | 148,00 € | |
|---|---|---|
| 10–30 Stück | 144,00 € | −3 % |
| ab 31 Stück | 141,00 € | −5 % |
Produktinformationen "I-8041W-G 32-ch Isolated Sink DO Module, 5~30 VDC"

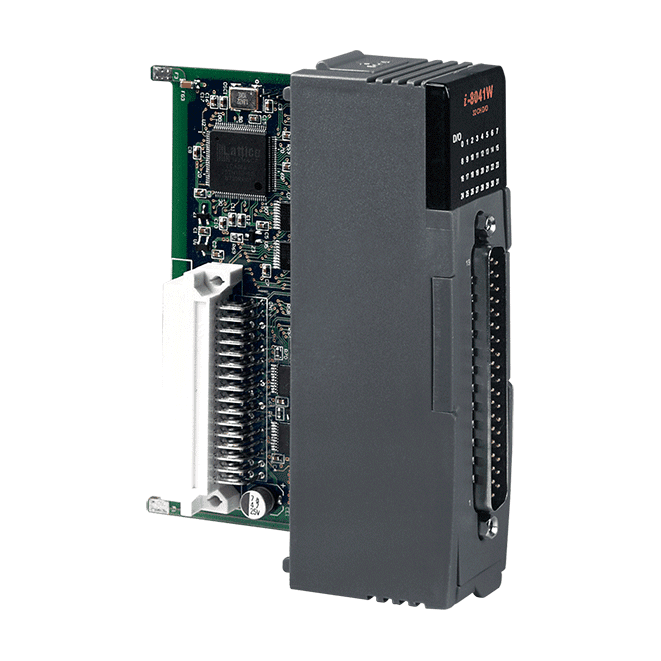

The I-8041W-G CR is a 32-channel digital output module for switching loads in automation and control cabinets. Each channel is photocoupler isolated and uses a sink-type open-collector output, so it can drive loads from 5 to 30 VDC at up to 100 mA per channel.
Each output is monitored by its own LED, and a separate LED shows power and communication status, which simplifies commissioning and fault finding. The module provides ±4 kV ESD contact protection on each terminal and 3750 Vrms intra-module isolation as standard.

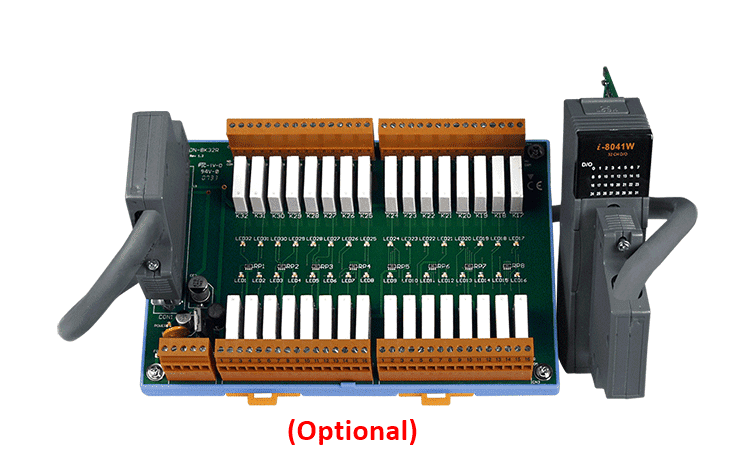

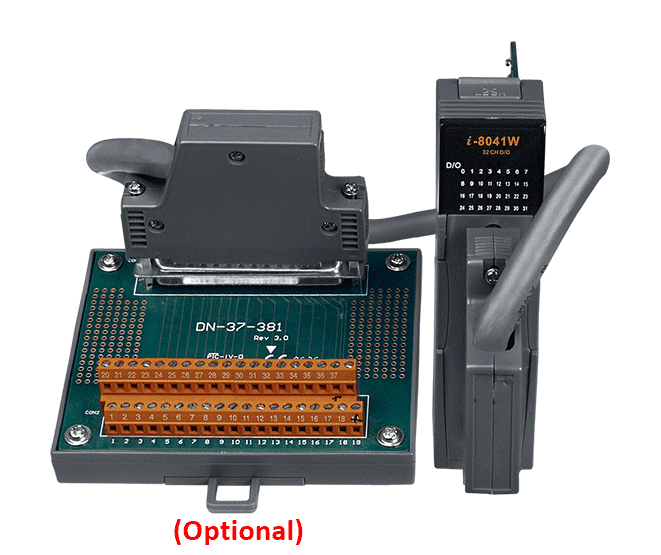

This ordering code includes the CA-4002F DB37 female connector with plastic cover. For wiring, the module can be paired with the DN-37-381-A CR daughterboard, or with the DN-8K32R if relay outputs are required.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Digital output module |
|---|---|
| Interface: | DB37 |
| Digital outputs: | 32 |
| Isolation: | 3750 Vrms |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 Vrms |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 32 x I/O |
| Digital Output | |
| Channels | 32 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
| Consumption | 1.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 85 x 114 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
