I-8042 Digital I/O Module, 16-ch Isolated DI and 16-ch Sink DO
16-channel isolated digital input and 16-channel isolated sink-type open-collector output module for the I-8K/I-87K series, supplied with a DB37 female connector.
- 16 isolated digital inputs, wet contact type, sink configuration
- 16 isolated open-collector outputs, sink (NPN), 100 mA per channel
- Load voltage +5 ~ +30 VDC on the outputs
- Photocoupler isolation with 3750 VDC intra-module isolation
- ±4 kV ESD protection contact for each terminal
- CA-4002F DB37 female connector with plastic cover included
138,00 € pro Stück
| 1–9 Stück | 138,00 € | |
|---|---|---|
| 10–30 Stück | 134,00 € | −3 % |
| ab 31 Stück | 131,00 € | −5 % |
Produktinformationen "I-8042 Digital I/O Module, 16-ch Isolated DI and 16-ch Sink DO"

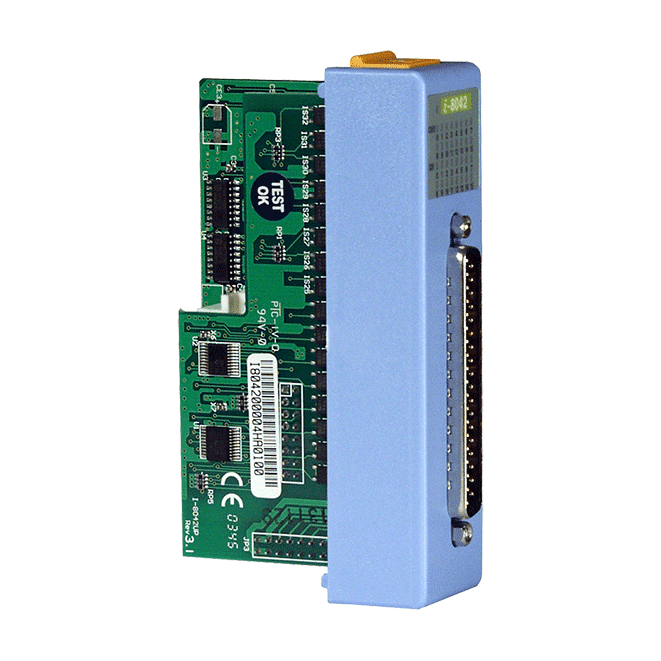

The I-8042 CR is a digital I/O module from the I-8K/I-87K low-profile series, combining 16 optically isolated digital inputs with 16 isolated open-collector outputs in a single unit. Its inputs are wet contact type and can be wired as sink or source, which suits mixed field wiring in automation cabinets.
Each output channel is a sink-type (NPN) isolated open collector rated for a load of +5 ~ +30 VDC and up to 100 mA per channel. Photocoupler isolation, 3750 VDC intra-module isolation and ±4 kV ESD protection on each terminal help protect the module and the control system from electrical disturbance.

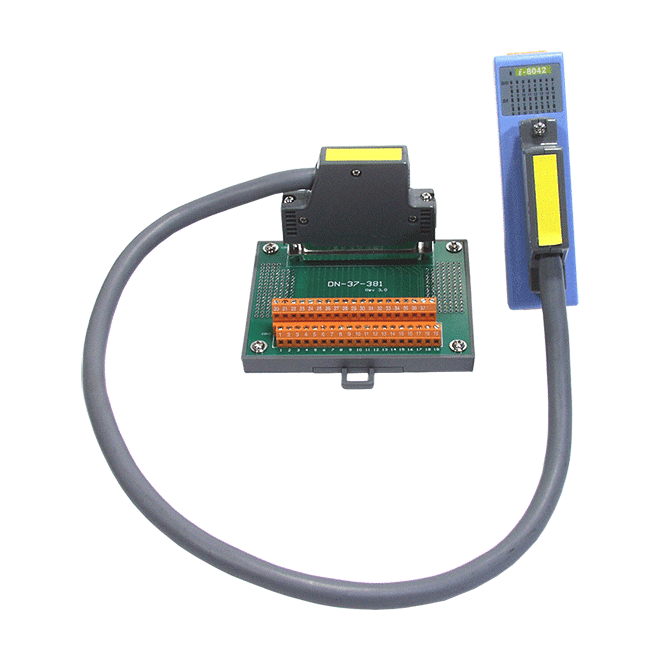

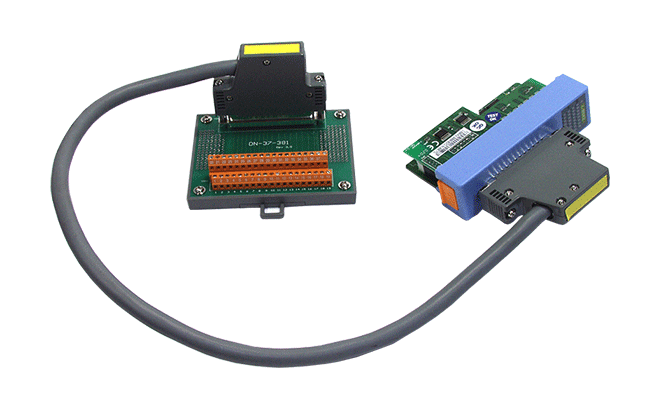

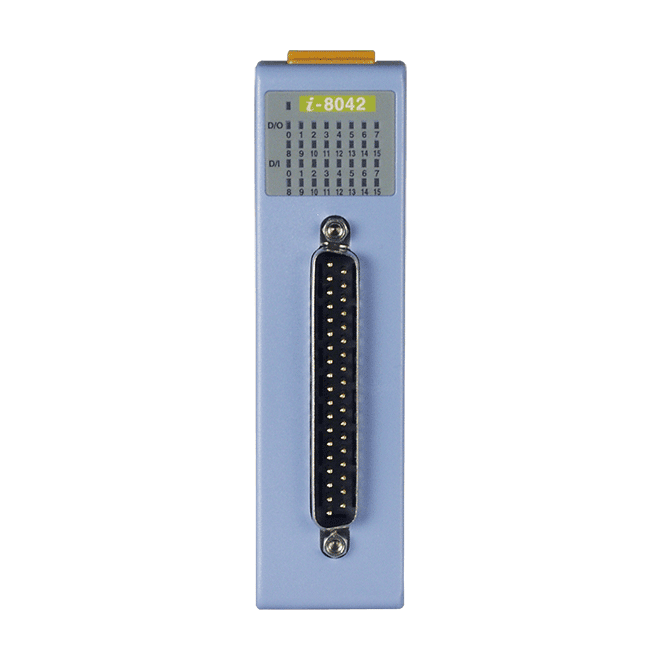

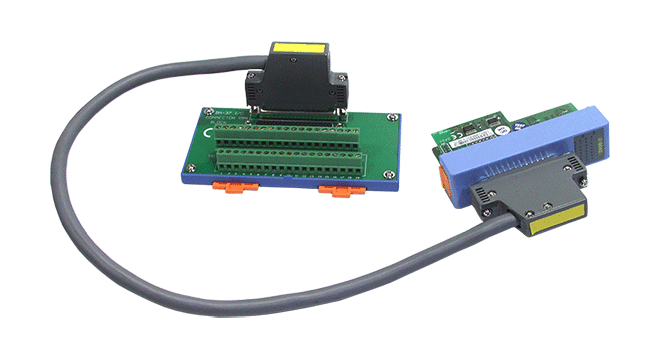

The CR ordering variant ships with the CA-4002F DB37 female connector with plastic cover and is identified by its blue cover. The module draws 1.5 W maximum and is rated for an operating range of -25 ~ +75 °C.
Applications
- Industry automation
- Industrial machinery
- Building automation
- Food and beverage
- Semiconductor fabrication
- Control systems
| Product type: | Digital I/O Module |
|---|---|
| Interface: | DB37 |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 32 x I/O |
| Digital Input | |
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | +10 ~ +3.5 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Input Impedance | 3 kΩ, 0.33W |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
| Consumption | 1.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 114 x 66 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
