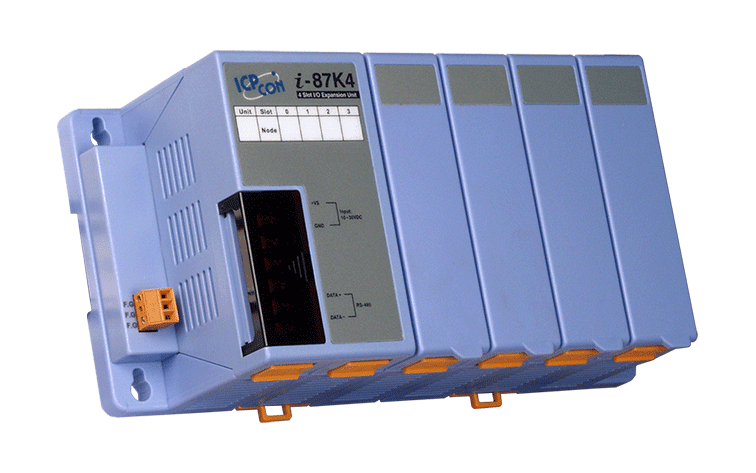

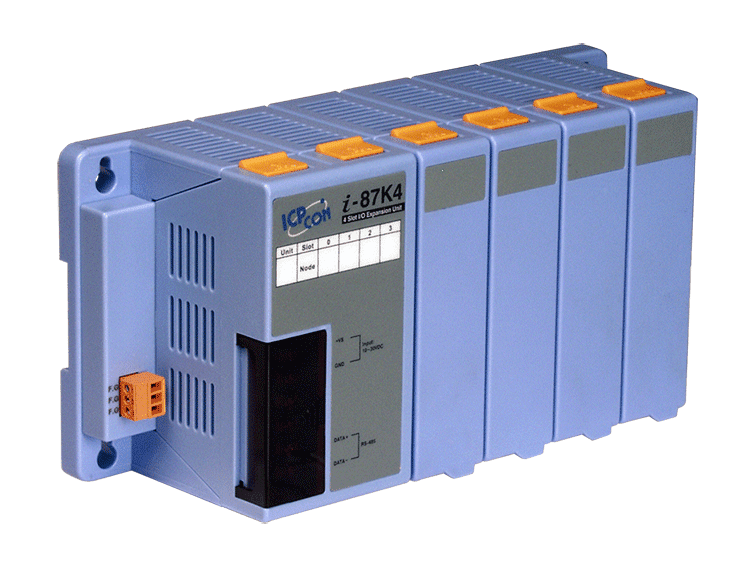

I-87K4 4-Slot RS-485 I/O Expansion Unit for I-87K Modules
4-slot RS-485 expansion unit that adds up to four I-87K series I/O modules to a DCON network over one isolated RS-485 port, with a -25 ~ +75 °C operating range.
- Four I-87K slots for expanding RS-485 I/O at a remote location
- Single RS-485 port with 3000 VDC isolation, suited to multi-drop topologies
- DCON protocol with up to 115200 bps baud rate
- Wide 10 ~ 30 VDC power input with isolated power input
- Operating temperature -25 ~ +75 °C, storage -30 ~ +75 °C
- Power LED indicator and 2.0 W typical consumption
162,00 € pro Stück
| 1–9 Stück | 162,00 € | |
|---|---|---|
| 10–30 Stück | 157,00 € | −3 % |
| ab 31 Stück | 154,00 € | −5 % |
Produktinformationen "I-87K4 4-Slot RS-485 I/O Expansion Unit for I-87K Modules"
The I-87K4 CR extends I/O over RS-485 by hosting four I-87K series I/O modules at a remote point and linking them back to the host through a single DCON port. It suits multi-drop RS-485 layouts where a central controller needs analogue, digital, counter or frequency channels spread across several locations.
The unit is built for demanding plant environments, with a wide 10 ~ 30 VDC power input, isolated power input and an operating range of -25 ~ +75 °C. Installation is straightforward, as the modules and unit can be mounted on a DIN rail or on a wall.
More than 30 I-87K modules are supported. Software support includes DLL, ActiveX, LabVIEW, InduSoft and Linux drivers, plus an OPC server. The CR ordering code denotes the blue-cover version.
Applications
- Remote I/O expansion on RS-485 DCON networks
- Distributed analogue, digital, counter and frequency I/O in harsh or electrically noisy environments
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| LED Indicators | |
|---|---|
| Status | 1 x Power |
| I/O Expansion | |
| I/O Type | High profile I-87K |
| Slots | 4 |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC Isolated) |
| Baud Rate | 115200 bps Max. |
| Protocol | DCON |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 231 x 111 x 75 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
