I-87K9 9-Slot RS-485 I/O Expansion Unit, DCON, I-87K Modules
9-slot RS-485 expansion unit for I-87K series I/O modules, using the DCON protocol. Isolated 10 ~ 30 VDC power input and -25 ~ +75 °C operating range suit demanding sites.
- Nine slots for I-87K series I/O modules
- Single RS-485 port with 3000 VDC isolation, suited to multi-drop topologies
- DCON protocol with up to 115200 bps
- Wide 10 ~ 30 VDC power input with isolated power input
- Operating temperature -25 ~ +75 °C; storage -30 ~ +75 °C
- Power LED indicator and 2.0 W consumption
199,00 € pro Stück
| 1–9 Stück | 199,00 € | |
|---|---|---|
| 10–30 Stück | 193,00 € | −3 % |
| ab 31 Stück | 189,00 € | −5 % |
Produktinformationen "I-87K9 9-Slot RS-485 I/O Expansion Unit, DCON, I-87K Modules"

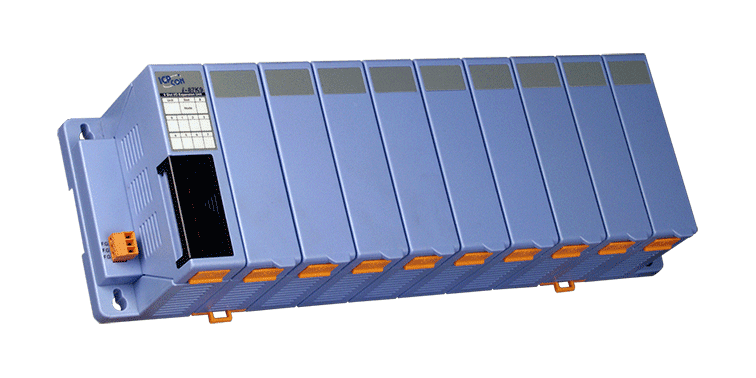

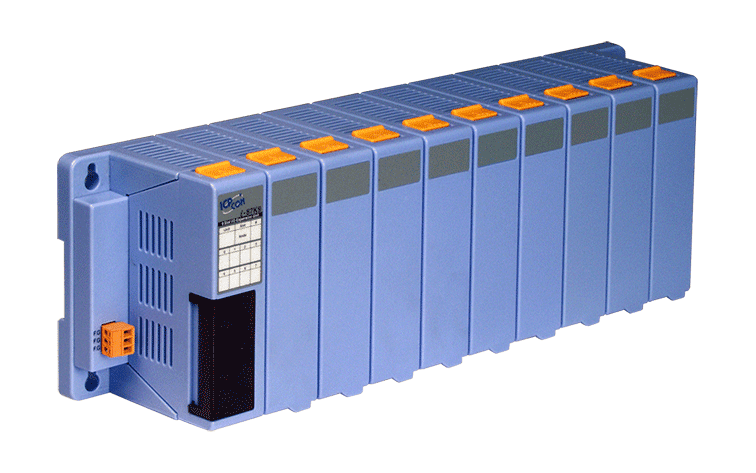

The I-87K9 CR extends I/O over an RS-485 link, giving engineers nine slots for I-87K series I/O modules on a single DCON-based network node. It suits installations where the controller sits some distance from the field I/O and a multi-drop bus is preferred.
The unit is built for electrically noisy and thermally demanding locations. It accepts a wide 10 ~ 30 VDC supply, provides isolated power input and operates from -25 ~ +75 °C, which helps reduce the number of separate I/O cabinets and simplifies installation and servicing. Its RS-485 port is isolated to 3000 VDC.
The CR ordering code denotes the blue-cover version. Supported I-87K modules cover analogue input and output, digital input and output, counter and frequency types, so one expansion unit can be populated to match the signal mix of a given machine or panel.
Applications
- Remote I/O expansion over RS-485 multi-drop networks
- Industrial control panels in harsh or electrically noisy environments
- Distributed analogue, digital, counter and frequency I/O for machine and process monitoring
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| LED Indicators | |
|---|---|
| Status | 1 x Power |
| I/O Expansion | |
| I/O Type | High profile I-87K |
| Slots | 9 |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC Isolated) |
| Baud Rate | 115200 bps Max. |
| Protocol | DCON |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 354 x 111 x 75 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
