I-9057P 16-ch Isolated Sink (NPN) Digital Output Module, Open Collector
16-channel isolated open-collector digital output module with sink-type (NPN) outputs, overcurrent, overvoltage and short-circuit protection for industrial I/O.
- 16 isolated open-collector digital outputs with sink-type (NPN) switching
- Load voltage +10 VDC to +50 VDC, 100 mA per channel
- Configurable power-on value and safe value for each channel
- 16 channel status LEDs plus a power and communication LED
- Overvoltage protection to 60 VDC, overload protection at 1.1 A and short-circuit protection
- 3750 VDC intra-module isolation and ±4 kV contact ESD protection as standard
158,00 € pro Stück
| 1–9 Stück | 158,00 € | |
|---|---|---|
| 10–30 Stück | 154,00 € | −3 % |
| ab 31 Stück | 151,00 € | −4 % |
Produktinformationen "I-9057P 16-ch Isolated Sink (NPN) Digital Output Module, Open Collector"

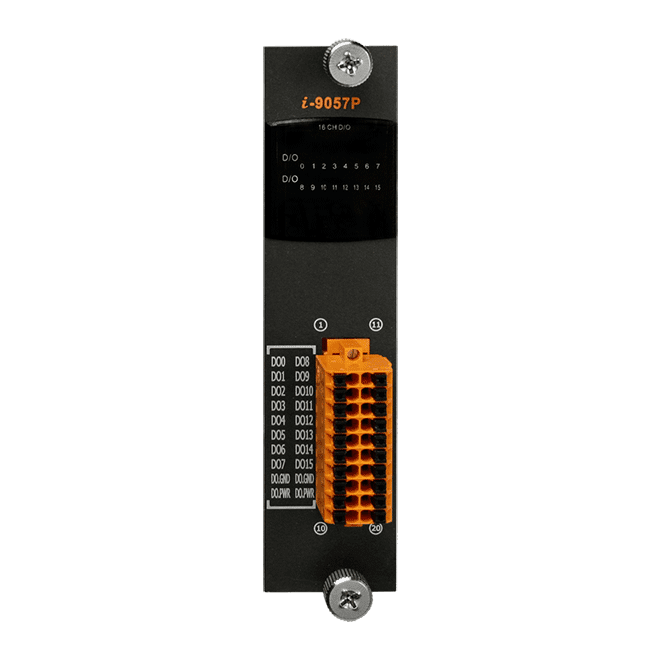

The I-9057P provides 16 isolated digital output channels in a PAC I/O module format, using sink-type open-collector outputs. It suits engineers who need to switch loads from 10 to 50 VDC at up to 100 mA per channel, with photocoupler isolation on every channel.
Each channel can be given its own power-on value and safe value, so outputs can be defined for start-up and fault conditions. Per-channel status LEDs show the state of all 16 outputs at a glance, and a further LED indicates power and communication.
Protection features include overload protection rated at 1.1 A, short-circuit protection and 60 VDC overvoltage protection. The module is rated for an operating range of -25 to +75 °C and is listed for energy storage system applications.
Applications
- Energy Storage System
| Product type: | I/O module |
|---|---|
| Digital outputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x DI |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ +50 VDC |
| Load Current | 100 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.1 A |
| Short-circuit Protection | Yes |
| Power on Value | Yes |
| Safe Value | Yes |
| Power | |
| Consumption | 1 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
