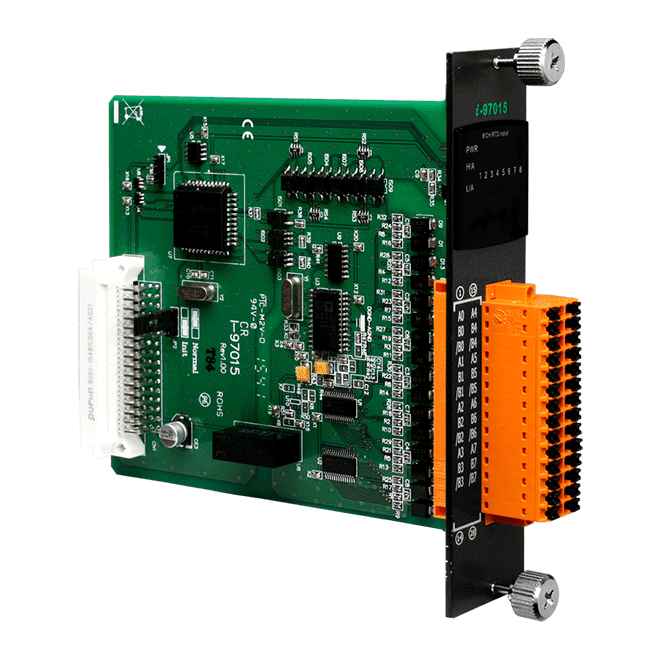

I-97015 8-ch RTD Input Module, 16-bit with RS-485 DCON
I-97015 CR 8-channel RTD input module with 16-bit resolution, 3-wire lead resistance elimination and RS-485 DCON interface for temperature measurement.
- 8 RTD input channels with individual channel configuration
- 3-wire RTD lead resistance elimination for accurate readings over long leads
- 16-bit resolution with ±0.05 % of FSR accuracy
- Open wire detection on each input
- 3000 VDC intra-module isolation and ±120 VDC overvoltage protection
- 1 x RS-485 port, DCON protocol, 1200 to 115200 bps
286,00 € pro Stück
| 1–9 Stück | 286,00 € | |
|---|---|---|
| 10–30 Stück | 278,00 € | −3 % |
| ab 31 Stück | 272,00 € | −5 % |
Produktinformationen "I-97015 8-ch RTD Input Module, 16-bit with RS-485 DCON"
The I-97015 CR is an 8-channel RTD input module from the I-9K/I-97K PAC I/O series, designed for temperature measurement with resistance temperature detectors. Each channel can be configured individually, so a single module can host different RTD sensor types across its inputs.
Three-wire RTD connections are compensated automatically, which keeps readings accurate regardless of lead length. Open wire detection and 16-bit resolution support reliable monitoring, while the 3000 VDC intra-module isolation and ±120 VDC overvoltage protection help protect the input stage.
Communication is via one RS-485 port using the DCON protocol at 1200 to 115200 bps. The module is rated for an operating range of -25 ~ +75 °C and carries CE, FCC, RoHS and WEEE marks.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis
- Testing equipment
| Product type: | RTD Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Analog inputs: | 8 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| RS Immunity (IEC 61000-4-3) | 3 V/m, 80 MHz ~ 1 GHz |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x High/Low Alarm Signals |
| Analog Input | |
| Channels | 8 |
| Sensor Type | Pt100, Pt1000, Ni100, Ni120, Cu50, Cu100, Cu1000 |
| Resistance Measurement | 3.2 kΩ |
| Resolution | 16-bit |
| Accuracy | ±0.05 % of FSR |
| Sampling Rate | 12 Hz (Total) |
| Bandwidth | 15.7 Hz |
| Input Impedance | >1 MΩ |
| Common Mode Rejection | 150 dB |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | ±120 VDC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| Zero Drift | ±0.5 μV/°C |
| Span Drift | ±20 ppm/°C |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 to 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
| Consumption | 0.6 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
