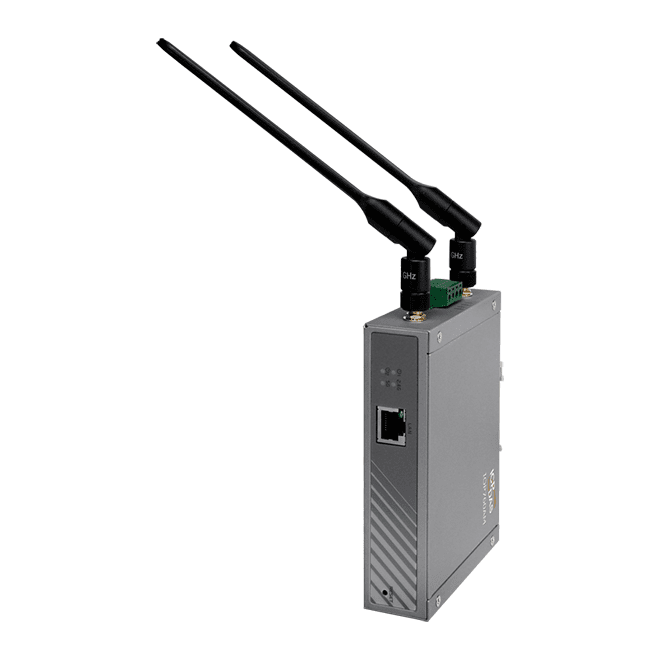

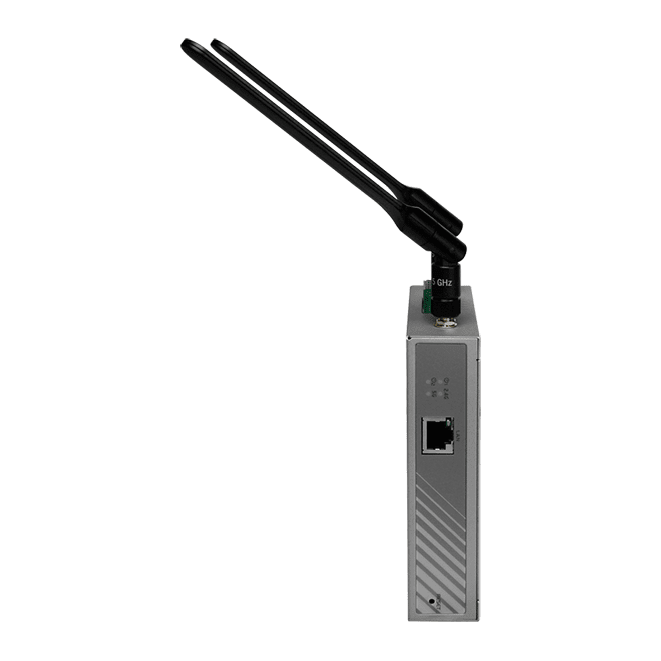

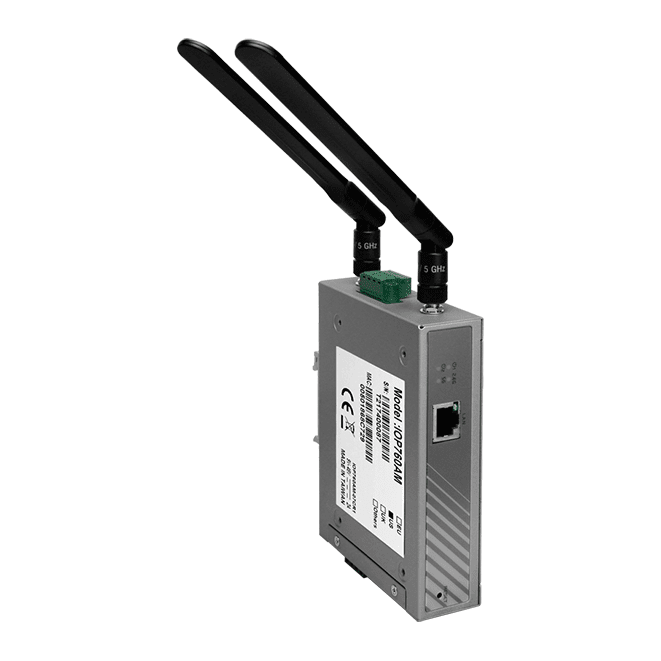

IOP760AM Ethernet/UART to Wi-Fi Converter, Category A Plug Type
Wi-Fi converter that bridges Ethernet and RS-232/485 serial devices, with one digital input, one relay output and Modbus RTU support for wireless data exchange.
- Wi-Fi uplink or Ethernet WAN connection
- One RS-232/485 port (RJ12) for Modbus RTU devices
- IEEE 802.11a/b/g/n/ac Wi-Fi with roaming when signal strength falls below threshold
- One RJ45 LAN port for linking local Ethernet devices
- One digital input (wet contact) and one relay output for event reporting and triggering
- Metal body for DIN-rail or bracket installation
537,00 € pro Stück
| 1–9 Stück | 537,00 € | |
|---|---|---|
| 10–30 Stück | 521,00 € | −3 % |
| ab 31 Stück | 510,00 € | −5 % |
Produktinformationen "IOP760AM Ethernet/UART to Wi-Fi Converter, Category A Plug Type"
The IOP760AM CR moves data between Wi-Fi, Ethernet and a serial UART port, so a Modbus RTU device or a local Ethernet device can be reached over a wireless link without running cable between them. The Wi-Fi side covers IEEE 802.11a/b/g/n/ac and can act as an uplink or as a WAN connection, depending on how the unit is set up.
For sites with changing radio conditions, the unit can switch to a stronger access point through its roaming function once the signal drops below a configured threshold. Serial data can be passed through directly or framed using the Modbus protocol, and the single RJ45 LAN port lets local Ethernet devices share the same connection.

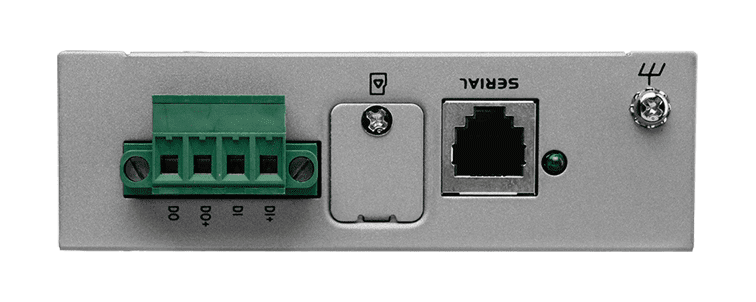

A wet-contact digital input and a relay output allow simple event reporting and device triggering. The metal body is designed for DIN-rail or bracket mounting, with a 9 to 48 VDC power input and an operating range of -20 ~ 60 °C.
Applications
- Wireless connection of Modbus RTU serial devices
- Linking local Ethernet devices over a Wi-Fi uplink
- Event reporting and device triggering via digital input and relay output
| Product type: | Wi-Fi Converter |
|---|---|
| Interface: | Ethernet, RS-232/485, Wi-Fi |
| Protocol: | Modbus RTU |
| Digital inputs: | 1 |
| Relay outputs: | 1 |
| Ports: | 2 |
| Power input: | +9 ~ 48 VDC |
| Operating temperature: | -20 ~ +60 °C |
| Mounting: | DIN-rail, bracket |
| Housing: | Metal |
Technische Daten
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11a/b/g/n/ac |
| Encryption | WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK |
| Data Transmission Rate | 2.4 GHz:300 Mbps(MIMO 2T2R) 5 GHz:866 Mbps(MIMO 2T2R) |
| Client | Max. 10 Clients (AP mode) |
| Channels | 2.4 GHz:1~11 5 GHz:36/40/44/48;149/153/157/161/165 |
| Antenna | 5 dBi 2.4/5 GHz |
| Digital Input | |
| Channels | 1 |
| Type | Wet Contact |
| ON Voltage Level | 3.3 ~ 30 VDC |
| OFF Voltage Level | 3 VDC Max. |
| Relay Output | |
| Channels | 1 |
| Contact Rating | 30V / 1A |
| Ethernet | |
| Ports | 1* RJ45 FE |
| COM Ports | |
| Ports | 1 x RJ12( RS-232/RS-485) |
| Baud Rate | RS-232: 9600 / 19200 / 38400 / 57600 / 115200 RS-485: 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800 |
| Data Bit | 8/7 |
| Stop Bit | 1/2 |
| Power | |
| Input Range | +9~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 31 x 99 x 131 (W x L x H)(without Mounting kit) 31 x 108 x 131 (W x L x H)(with DIN Rail kit) 167 x 99 x 39 (W x L x H)(with Bracket kit) |
| Installation | DIN-Rail Bracket |
| Environment | |
| Operating Temperature | -20 ℃ ~ 60 ℃ |
| Storage Temperature | -40 ℃ ~ 85 ℃ |
| Humidity | 10% ~ 95% (non-condensing) |
Technische Daten laut Hersteller. Änderungen vorbehalten.
