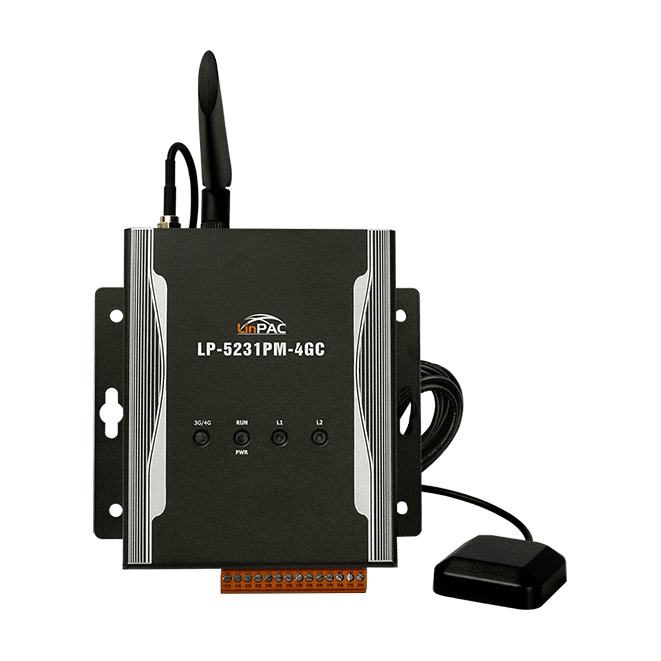

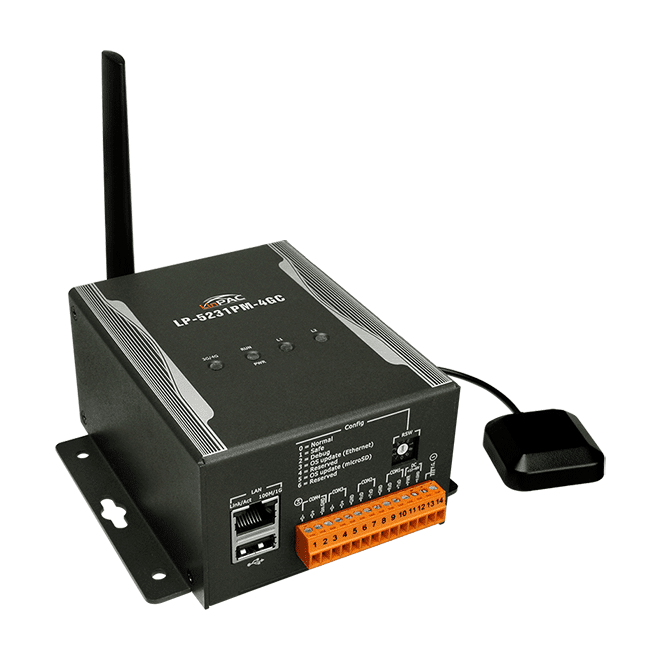

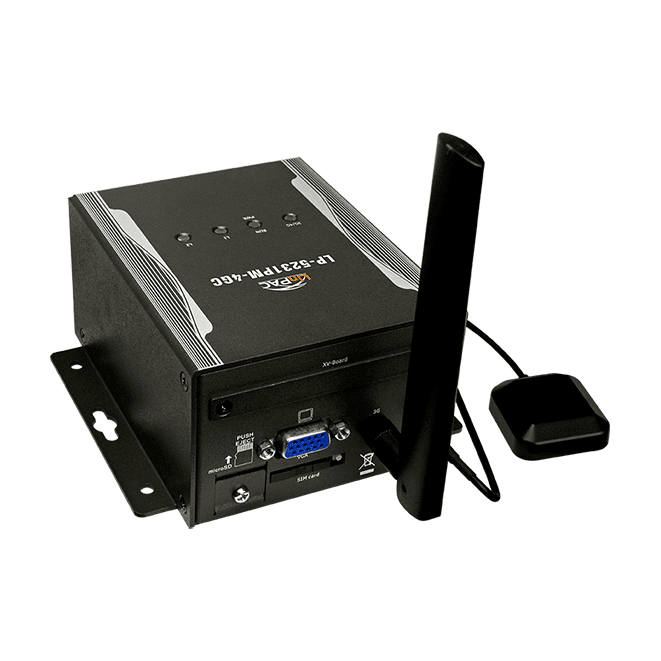

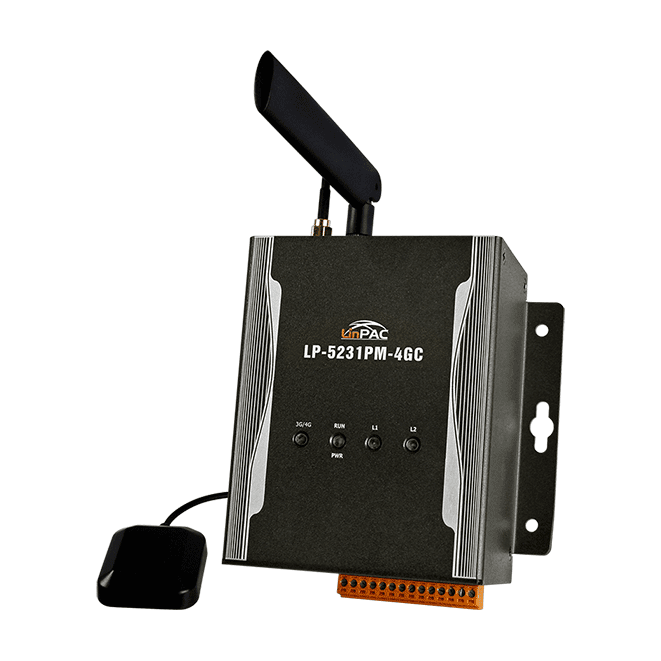

LP-5231PM-4GC 4G Linux PAC with Cortex-A8 CPU, 1 LAN Port and GPS
4G Linux-based PAC with a 1 GHz Cortex-A8 CPU, XV-board I/O expansion, four serial ports and GPS, supplied with the frequency band for China.
- 1 GHz Cortex-A8 CPU running Linux kernel 3.2.14 with a LinPAC SDK for application development
- Integrated 4G modem for remote data transfer, including SMS and GPRS/3G/4G connections
- Four serial ports (RS-232/485), with one RS-485 port isolated at 2500 VDC
- XV-board I/O expansion bus for optional additional I/O
- GPS/GNSS receiver with 32 channels and NMEA 0183 output
- Dual watchdog timers, real-time clock and 64-bit hardware serial number
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "LP-5231PM-4GC 4G Linux PAC with Cortex-A8 CPU, 1 LAN Port and GPS"
LP-5231PM-4GC is a Linux-based programmable automation controller built around a 1 GHz Cortex-A8 processor and 512 MB DDR3 SDRAM. It suits engineers who need a compact controller that runs their own application software on Linux while also sending field data over a cellular link.
The unit combines a 4G modem with four serial ports (RS-232 and RS-485, one of the RS-485 ports isolated at 2500 VDC), a single RJ-45 10/100/1000 Base-TX LAN port and a USB 2.0 host port. An optional XV-board can be fitted for additional I/O. The 4G module covers WCDMA, TD-SCDMA, CDMA2000, FDD LTE and TDD LTE bands, and the ordering code sold here carries the frequency band for China. The GPS/GNSS receiver reports NMEA 0183 data across 32 channels.
Storage includes 512 MB flash and a microSD socket, with a 4 GB card supplied and support for microSDHC cards up to 32 GB. A 64-bit hardware serial number supports software copy protection, and dual watchdog timers and a real-time clock are included. Note that this variant supports China mobile networks only.
Applications
- Remote data transfer from instruments, meters and control systems over 3G/4G cellular networks
- SMS and GPRS/3G/4G connection applications
- Multi-serial communication and data collection at remote sites
- Linux-based control applications requiring time-critical processing
| Product type: | Linux PAC |
|---|---|
| Interface: | RJ-45, RS-232/485, USB 2.0 |
| Protocol: | NMEA 0183 |
| Ports: | 1 LAN, 4 serial |
| Isolation: | 2500 VDC (1 RS-485 port) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | FRAM 64 KB |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
| Status | 1 x Power 1 x Run 2 x Programmable |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps |
| Frequency Band | WCDMA 900/2100 TD-SCDMA 1900/2100 CDMA2000 (BC0) 800 |
| 4G System | |
| Data Transmission Rate | Download Max. 100 Mbps; Upload Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B8 TDD LTE: B38/B39/B40/B41 |
| GPS/GNSS | |
| Channels | 32 |
| Protocol | NMEA 0183 |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 1 x RS-485, Non-isolated 1 x RS-485 (2500 VDC, Isolated) |
| USB | |
| Ports | 1 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
