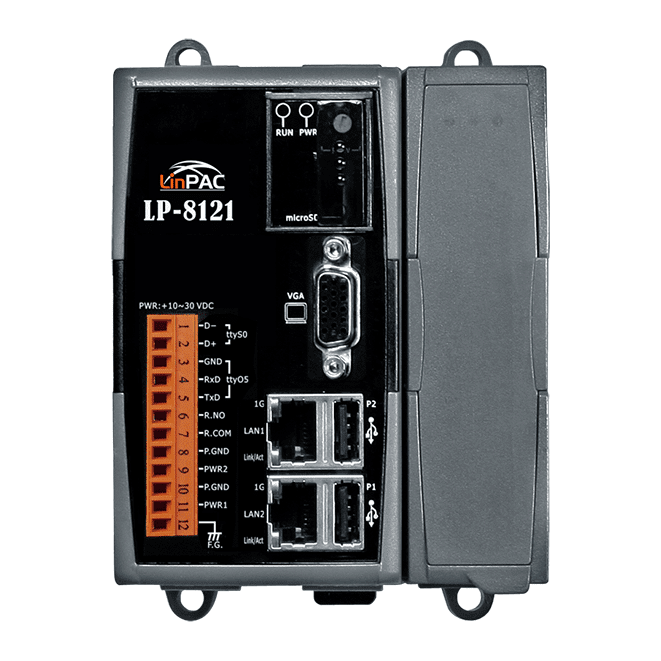

LP-8121 1-slot Linux PAC with Cortex-A8 1 GHz CPU and Redundant Power Inputs
LP-8121 CR is a 1-slot Linux-based PAC with a 1 GHz Cortex-A8 CPU, dual Ethernet, isolated RS-485 and redundant power inputs, for I-8KW and I-87KW I/O expansion.
- Cortex-A8 CPU at 1 GHz running Linux kernel 3.2.14
- Embedded web, FTP, Telnet and SSH servers
- One slot for I-8KW or I-87KW I/O modules
- Two 10/100/1000 Base-TX Ethernet ports, RS-232, isolated RS-485, two USB 2.0 host ports and VGA
- Redundant power inputs with one power relay (1 A @ 24 VDC) for alarm
- Dual watchdog timer and 64-bit hardware serial number
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "LP-8121 1-slot Linux PAC with Cortex-A8 1 GHz CPU and Redundant Power Inputs"
The LP-8121 CR is a single-slot programmable automation controller built around a 1 GHz Cortex-A8 processor running Linux kernel 3.2.14. It suits engineers who want to run their own control software in a Linux environment rather than a proprietary runtime.
The unit provides 512 MB DDR3 SDRAM, 512 MB flash and a microSD socket fitted with a 4 GB card, supporting microSDHC cards up to 32 GB. Connectivity includes two RJ-45 Ethernet ports (10/100/1000 Base-TX), an RS-232 console port, an isolated RS-485 port rated 3000 VDC, two USB 2.0 host ports and a VGA display output. The single slot accepts an I-8KW or I-87KW I/O module.
Dual watchdog timers, a 64-bit hardware serial number for software copy protection and redundant power inputs with an alarm relay support dependable operation. Embedded web, FTP, Telnet and SSH servers simplify access, and the standard LinPAC SDK supports development in GNU C on Windows and Linux.
Applications
- Embedded Linux control applications
- Serial device integration over RS-232 and RS-485
- Distributed I/O expansion with I-8KW and I-87KW modules
- CAN bus connectivity
- Machine control and automation in a Linux environment
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 x RJ-45 |
| Isolation: | RS-485 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | Web Server, FTP Server, Telnet Server, SSH Server |
| SDK | Standard LinPAC SDK for Windows and Linux by GNU C language |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | • MRAM 512 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
| Status | 1 x Power 1 x Run (Programmable) |
| I/O Expansion | |
| I/O Type | I-8KW, I-87KW series |
| Slots | 1 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | No |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-485 (3000 VDC, Isolated) |
| USB | |
| Ports | 2 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 7.3 W (0.3 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 95 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
