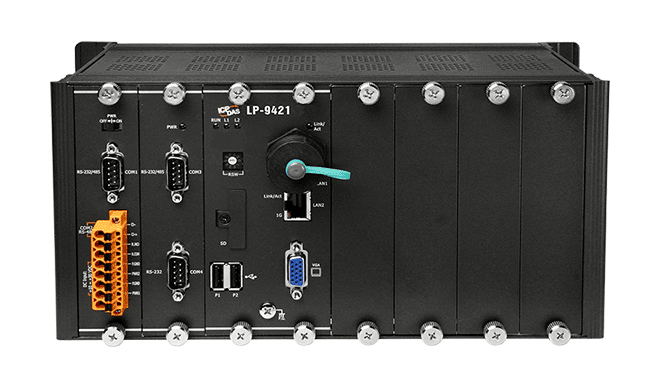

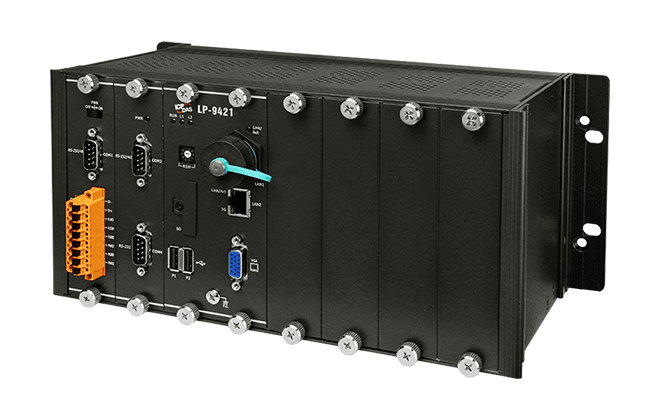

LP-9421 Linux PAC, 4-Slot I-9K/I-97K Expansion, Cortex-A8 1 GHz
4-slot Linux-based programmable automation controller with a 1.0 GHz Cortex-A8 CPU, dual Gigabit Ethernet, four isolated serial ports and redundant power inputs.
- 1.0 GHz Cortex-A8 CPU running Linux kernel 3.2.14
- Four expansion slots for I-9K and I-97K series I/O modules
- Two 10/100/1000 Base-TX Ethernet ports
- Four isolated serial ports (RS-232/485), 3000 VDC isolation
- Embedded web, FTP, Telnet and SSH servers
- LinPAC SDK with GCC-based toolchain and LinPAC libraries
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "LP-9421 Linux PAC, 4-Slot I-9K/I-97K Expansion, Cortex-A8 1 GHz"
The LP-9421 CR is a Linux-based PAC (Programmable Automation Controller) that combines a 1.0 GHz Cortex-A8 processor with four expansion slots for I-9K (parallel-type) and I-97K (serial-type) I/O modules. It suits engineers who need a standalone controller with a full Linux environment, built-in network services and a wide range of serial and USB connectivity in one metal-cased unit.
Connectivity includes two 10/100/1000 Base-TX Ethernet ports, four isolated serial ports (RS-232 and RS-485 options, one of which serves as the console), and two USB 2.0 host ports. Application programs can be stored on a microSD card or USB mass storage device. The LinPAC SDK, with a GCC-based toolchain, supports developing I/O applications in GNU C for I-7000, I-9000 and I-97K series modules.
The unit includes redundant power inputs with an alarm relay, a dual watchdog timer, a real-time clock and a 64-bit hardware serial number for software copy protection. It mounts on DIN-rail or wall and operates from -25 ~ +75 °C.
Applications
- CAN bus and CANopen networks
- DeviceNet networks
- Modbus-based systems
- Multi-serial device communication
- Ethernet-based control and monitoring
- SNMP network management
| Product type: | Linux PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB |
| Ports: | 2 Ethernet, 4 serial, 2 USB |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | • MRAM 128 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
| Status | 1 x Power 1 x Run 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | 4 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (Console, 3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
| Ports | 2 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 10.8 W (0.45 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 300 x 133 x 164 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
