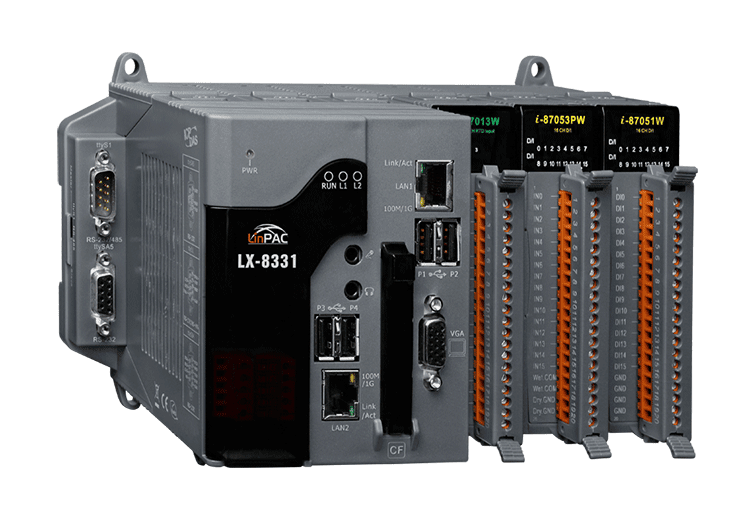

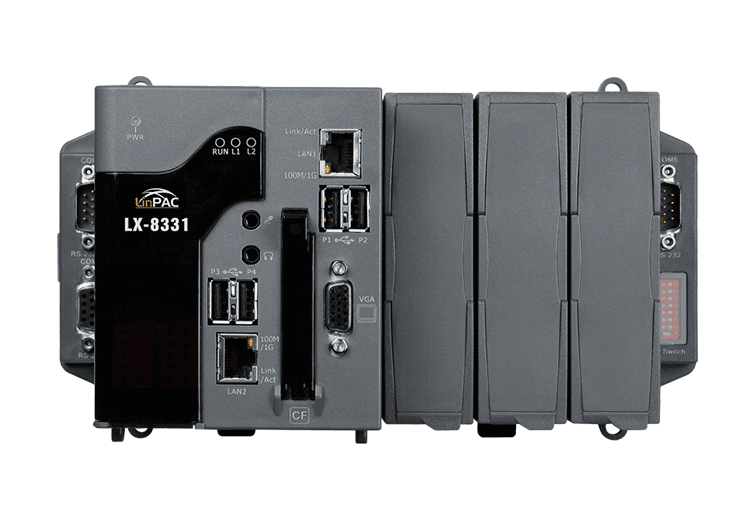

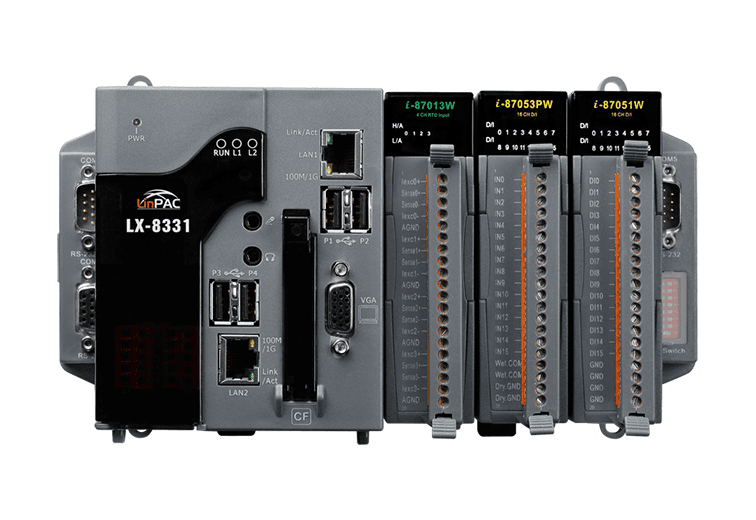

LX-8331 3-Slot Linux PAC with x86 Dual-Core CPU
Linux-based PAC with an x86 dual-core CPU, three I/O expansion slots and dual Gigabit Ethernet, combining control, HMI and data acquisition in one unit. Operating range -25 ~ +75 °C.
- x86 dual-core CPU at 1.0 GHz on a Linux kernel 3.2 platform
- Three I/O expansion slots for I-8KW and I-87KW series modules
- Two 10/100/1000 Mbit Ethernet ports plus VGA, USB 2.0 and RS-232/RS-485
- Isolated serial ports rated 3000 VDC, including RS-232 console
- LinPAC SDK with GCC toolchain and libraries for C application development
- Dual watchdog timer and 64-bit hardware serial number for software protection
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "LX-8331 3-Slot Linux PAC with x86 Dual-Core CPU"
The LX-8331 CR brings computing, I/O and operator interface together in a single 3-slot Linux controller. It suits projects that need control, data acquisition and a local display handled by one PAC rather than a separate PC and I/O stack.
Hardware centres on a 1.0 GHz x86 dual-core CPU with 2 GB DDR3 SDRAM, a 32 GB mSATA SSD and a CF card slot for program storage. Connectivity includes a VGA output, four USB 2.0 host ports, two 10/100/1000 Mbit Ethernet ports and isolated RS-232 and RS-485 interfaces. Three slots accept I-8KW and I-87KW series I/O modules, and remote expansion is possible over RS-485 and FRnet.
The controller runs Linux kernel 3.2 with built-in web, FTP, Telnet and SSH services. The LinPAC SDK provides a GCC-based toolchain and libraries for developing I/O applications in C. Dual watchdog timers, a 64-bit hardware serial number for software protection and redundant power inputs support reliable long-term operation.
Applications
- Integrated HMI, data acquisition and control in a single PAC
- Local I/O expansion with I-8KW and I-87KW modules
- Remote I/O expansion over Ethernet and RS-485 I/O modules
- Standalone controller storing user programs on CF card or USB storage
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC (serial ports) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| Software | |
|---|---|
| OS | Linux kernel 3.2 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | x86 dual-core (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | • Flash: mSATA slot with one 32 GB SSD • CF card slot |
| Non-Volatile Memory | • MRAM 512 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | 1280 × 1024 to 1920 × 1080 for 16:9 display 640 × 480 to 1024 × 768 for 4:3 display |
| LED Indicators | |
| Status | 1 x Power 1 x Run (Programmable) 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8KW, I-87KW series |
| Slots | 3 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Power Switch | Yes |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, 3000 VDC, Isolated) 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
| Ports | 4 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 15.6 W (0.65 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 231 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
