MDC-711 Modbus Data Concentrator, 1x Ethernet to 1x RS-232 and 1x RS-485
MDC-711 CR Modbus data concentrator with one Ethernet port, one 5-wire RS-232 port and one 2-wire RS-485 port. Brings serial Modbus devices onto Modbus TCP hosts.

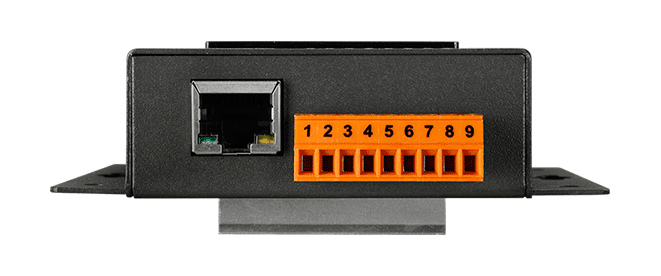

- One 10/100 Base-TX Ethernet port serving Modbus TCP slave connections to up to 8 hosts simultaneously

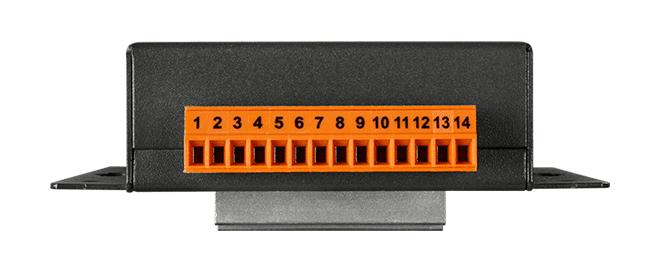

- One 5-wire RS-232 port and one 2-wire RS-485 port, each usable as Modbus RTU master or slave
- Polling command table for up to 250 definitions across all serial ports
- Data pool of up to 9600 registers for each of AI, AO, DI and DO data
- Parallel COM port communication with per-port baud rate, data format and timeout settings
- CSV-based configuration and an HTML5 web-based user interface
303,00 € pro Stück
| 1–9 Stück | 303,00 € | |
|---|---|---|
| 10–30 Stück | 294,00 € | −3 % |
| ab 31 Stück | 288,00 € | −5 % |
Produktinformationen "MDC-711 Modbus Data Concentrator, 1x Ethernet to 1x RS-232 and 1x RS-485"
The MDC-711 CR links a serial Modbus RTU device or two to an Ethernet network. Its RS-232 and RS-485 ports can act as Modbus RTU master or slave, while the Ethernet port serves Modbus TCP slave connections to up to eight host controllers at the same time. A user-defined command table polls the attached devices and merges their data into one continuous address space, so a SCADA host can read or write everything in a single bulk transaction.
Each COM port can be configured independently for baud rate, data format and timeout. Baud rates run from 1200 to 115200 bps, with N81, E81 and O81 data formats. Write commands are queued with first priority to keep control values current. Polling definitions are set up from a simple CSV file, and an HTML5 web interface handles configuration import, export and start-up.

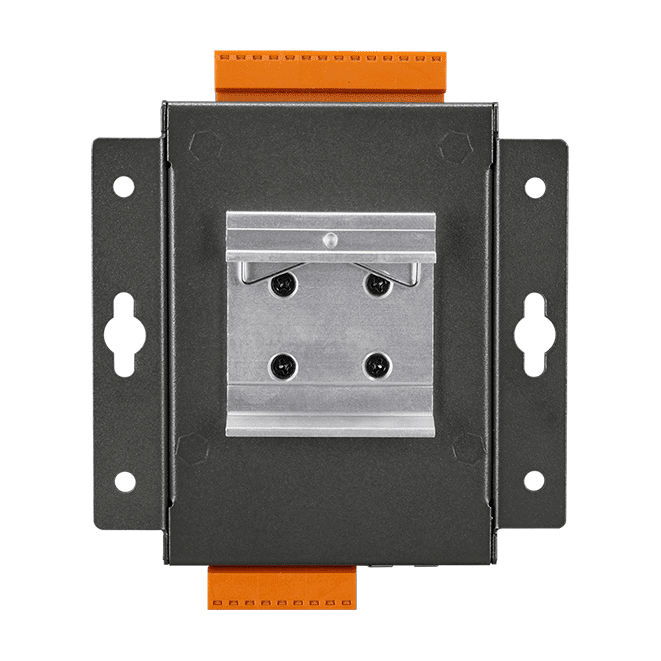

The unit has a metal casing for wall mounting and accepts a non-regulated +10 VDC to +30 VDC supply, drawing 2.5 W. It is rated for operation from -25 to +75 °C and is CE, UKCA, FCC, RoHS and WEEE marked. It suits upgrading legacy Modbus RTU equipment to Ethernet-based monitoring.
Applications
- Upgrading legacy Modbus RTU devices to Ethernet-based systems
- SCADA applications requiring centralised data monitoring
- Consolidating data from multiple serial Modbus devices for bulk reading by a host
| Product type: | Modbus data concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 3 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall |
| Housing: | Metal |
Technische Daten
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System, to display heart beat |
| Ethernet | |
| Ports | x1, 10/100 Base-TX |
| Protocol | Modbus/TCP Slave |
| COM Ports | |
| Ports | MDC-711: 1 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-714: 1 x 5-wire RS-232, 4 x 2-wire RS-485 MDC-714i: 1 x 5-wire RS-232, 1 x 2-wire RS-485, 3 x 2-wire RS-485 (2500 VDC Signal Isolation) MDC-741: 4 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-771: 1 x 5-wire RS-232, 6 x 3-wire RS-232, 1 x 2-wire RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Modbus RTU Slave |
| Polling Definition | 250 definitions for all RS-232/485 ports |
| Shared Memory | 9600 registers for each of AI, AO, DI and DO data |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 102 mm x 125 mm x 28 mm (W x H x D) |
| Installation | Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
