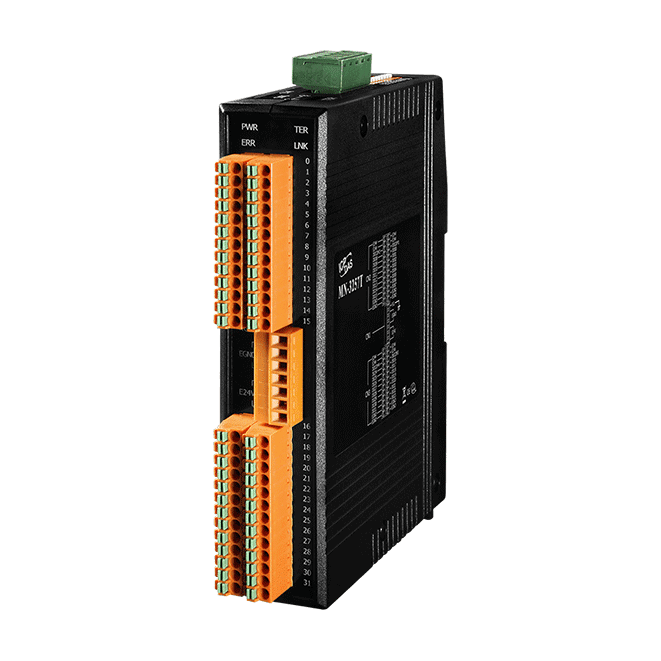

MN-3257T Motionnet 32-ch Isolated Digital Output Module, Sink Type
Distributed Motionnet I/O module with 32 isolated open-collector sink outputs, 200 mA per channel and terminal block connections for DIN-rail installation.
- 32 isolated digital outputs, open-collector sink type with internal flywheel diode
- Up to 64 modules per Motionnet transfer line, expandable to 2048 output channels
- Transfer speed selectable at 2.5, 5, 10 or 20 Mbps by DIP switch
- Load voltage up to +30 VDC and 200 mA maximum per channel
- 3000 Vrms output isolation, with isolation between power, communication and I/O
- Flywheel diode of each port can be connected to a different power source individually
228,00 € pro Stück
| 1–9 Stück | 228,00 € | |
|---|---|---|
| 10–30 Stück | 221,00 € | −3 % |
| ab 31 Stück | 217,00 € | −5 % |
Produktinformationen "MN-3257T Motionnet 32-ch Isolated Digital Output Module, Sink Type"
MN-3257T CR is a Motionnet expansion module that adds 32 isolated digital output channels to a Motionnet network. Each channel is an open-collector sink output with an internal flywheel diode, rated up to +30 VDC and 200 mA per channel, so it can switch typical industrial loads directly from the module.
Engineers typically choose this module to grow a distributed I/O network without adding CPU load. Up to 64 modules can share one Motionnet transfer line, giving up to 2048 output channels. Output status is updated automatically at a fixed cycle, and input-change interrupts can be set for points that need monitoring, avoiding repeated polling.
Isolation is provided between power, communication and I/O, with 3000 Vrms rated on the outputs. The flywheel diode of each 8-channel port can be connected to a separate power source, and LEDs show communication state and I/O status. The module is supplied from 24 VDC and mounts on a DIN rail.
Applications
- Machine automation
- Distributed digital output expansion on Motionnet networks
| Product type: | Digital output module |
|---|---|
| Interface: | Motionnet |
| Protocol: | Motionnet |
| Digital outputs: | 32 |
| Isolation: | 3000 Vrms |
| Power input: | 24 VDC |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| Hardware | |
|---|---|
| Connector | 13-pin pluggable terminal block x 4 |
| LED Indicators | |
| Status | Communication state (Link, Error) Internal 3.3 V Power Termination Resistor Switch Input/Output state |
| Digital Output | |
| Channels | 32 |
| Type | Open Collector (Sink), with internal flywheel diode |
| Load Voltage | +30 VDC max. |
| Load Current | 200 mA max. for each channel |
| Isolation | 3000 Vrms |
| Motionnet | |
| Communication Connectors | 5-pin terminal block |
| Transfer Speed | Selectable 2.5, 5, 10 or 20 Mbps by DIP Switch. |
| Cyclic Time | 15.1 μs per device (20 Mbps) |
| Power | |
| Input Range | 24 VDC (1000 V isolated) |
| Consumption | 2 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 mm x 140 mm x 126.6 mm |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
