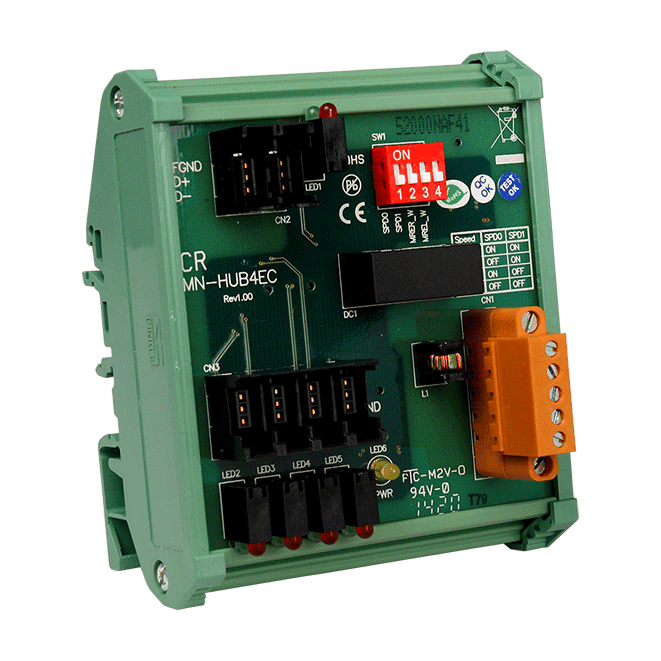

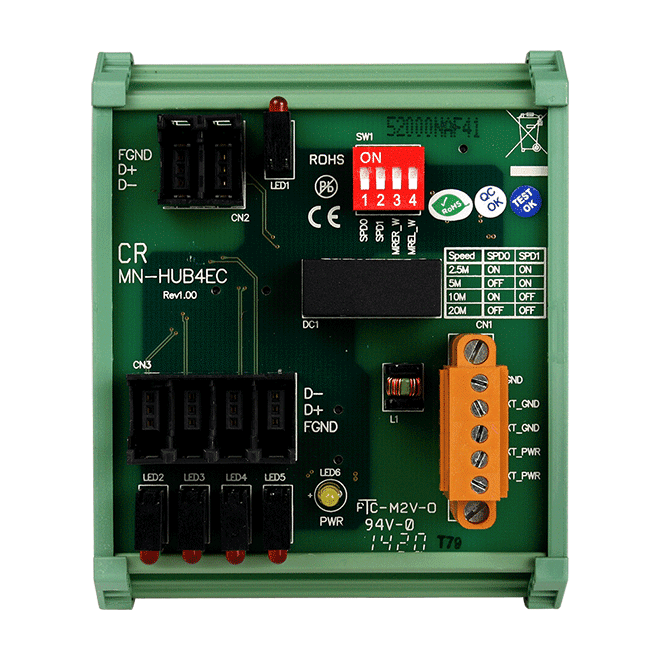

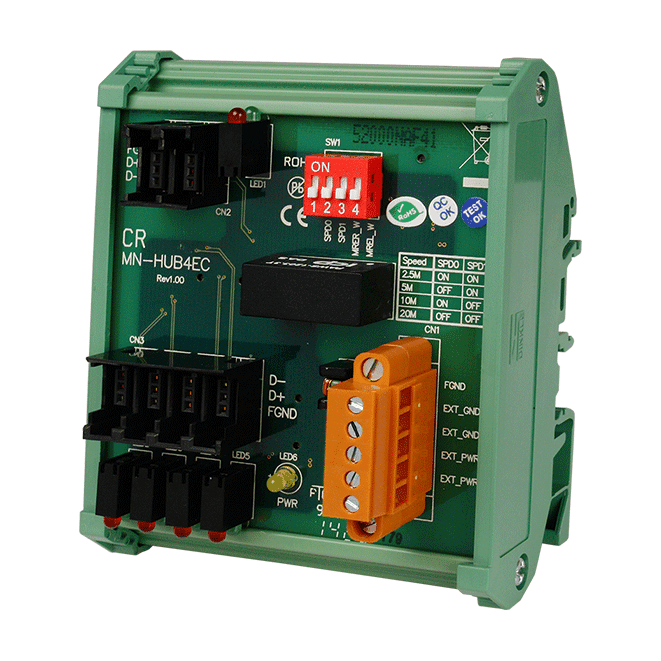

MN-HUB4EC Distributed Motionnet 4-Port Star Hub Module, e-CON Mini-Clamp
Distributed Motionnet 4-port hub with e-CON Mini-Clamp connectors for star and tree network layouts, transferring up to 20 Mbps.
- True Motionnet star wiring hub for star and tree topologies
- Independent Motionnet transceiver on each of the four channels
- Transfer speeds of 2.5, 5, 10 and 20 Mbps
- Mini-Clamp (e-CON) communication connectors
- LEDs for Motionnet activity on each channel, plus link and error status
- Power input range 12 - 24 V
256,00 € pro Stück
| 1–9 Stück | 256,00 € | |
|---|---|---|
| 10–30 Stück | 248,00 € | −3 % |
| ab 31 Stück | 243,00 € | −5 % |
Produktinformationen "MN-HUB4EC Distributed Motionnet 4-Port Star Hub Module, e-CON Mini-Clamp"
The MN-HUB4EC is a Motionnet hub module that lets engineers build star or tree networks, where standard Motionnet only supports a daisy-chain layout. Each of its four channels has its own independent Motionnet transceiver, so branches can be routed from a central point.
Using a hub rather than a single chain can shorten the overall cable run and simplify installation, which can also reduce wiring cost. The module uses Mini-Clamp (e-CON) connectors for its communication lines and is powered from 12 to 24 V.
Per-channel LEDs show Motionnet activity, while the status indicators report communication state (link and error). The unit is rated for an operating temperature of 0 to +60 °C.
Applications
- Machine automation
- Motionnet networks that need star or tree wiring instead of daisy-chain
| Product type: | Motionnet hub module |
|---|---|
| Interface: | Motionnet |
| Protocol: | Motionnet |
| Ports: | 4 |
| Power input: | 12 ~ 24 V |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| LED Indicators | |
|---|---|
| Status | Communication state (Link, Error) Internal 3.3 V Power |
| Motionnet | |
| Communication Connectors | Mini-clamp Connector |
| Transfer Speed | 2.5, 5, 10, 20 Mbps |
| Layers between Modules | I/O or independent axis: 3 (Max.) Between two interpolation axes: 2 (Max.) |
| Length | 100 M Max. (20 Mbps; up to 32 modules) 50 M Max. (20 Mbps; up to 64 modules) 100 M Max. (10 Mbps; up to 64 modules) |
| No. of Connection Line | Main Line (same layer): 2 Branch Line (to next layer): 4 |
| Power | |
| Input Range | 12 - 24 V |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
