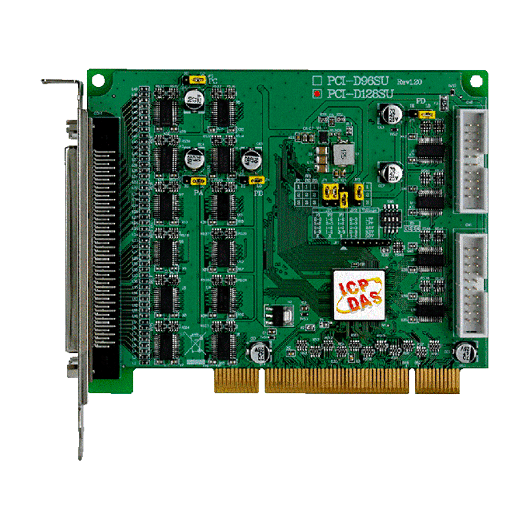

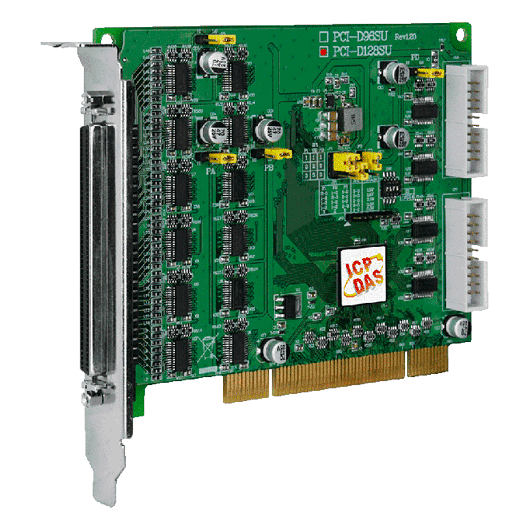

PCI-D128SU Universal PCI Digital I/O Board, 128-ch, 32-bit
128-channel bi-directional digital I/O board for 3.3 V/5 V universal PCI slots, with four 32-bit ports and software-selectable logic levels from 1.8 V to 5 V.
- 128 bi-directional digital I/O channels across four 32-bit ports
- Software-configurable logic levels: 1.8 V, 2.5 V, 3.3 V and 5 V TTL
- Digital pattern generator and waveform generation on outputs
- Pattern-matching and change-of-state interrupt monitoring
- Pull-high/pull-low jumpers for predefined digital input states
- Onboard 4-bit Card ID switch for multi-board systems
261,00 € pro Stück
| 1–9 Stück | 261,00 € | |
|---|---|---|
| 10–30 Stück | 253,00 € | −3 % |
| ab 31 Stück | 248,00 € | −5 % |
Produktinformationen "PCI-D128SU Universal PCI Digital I/O Board, 128-ch, 32-bit"
The PCI-D128SU CR gives a PC 128 digital I/O lines organised as four 32-bit bi-directional ports. Each channel can be configured in software as an input or an output, which suits general-purpose digital control and monitoring in engineering test and automation work.
Logic levels can be set to 1.8 V, 2.5 V, 3.3 V or 5 V TTL, so the board can interface with a range of signal standards. Pull-high and pull-low jumpers define the state of digital inputs when a channel is disconnected or interrupted, rather than leaving it floating. Pattern-matching and change-of-state interrupt monitoring are available for event-driven designs.
An onboard 4-bit Card ID switch allows software to identify each board when two or more are fitted in the same computer. All connections run through a single high-density female SCSI II 100-pin connector, with two 20-pin box headers also provided. DLL and ActiveX control, plus sample programs for several development environments including LabVIEW, are supplied to help with application development.
Applications
- General-purpose digital input and output in PC-based control and test systems
- Event-driven monitoring using pattern matching and change-of-state interrupts
- Digital waveform generation on output channels
- Multi-board installations requiring individual board identification
| Product type: | Digital I/O board |
|---|---|
| Interface: | PCI |
| Digital inputs: | 128 |
| Digital outputs: | 128 |
| Ports: | 4 x 32-bit |
| Power input: | 3.3/+5 V PCI bus |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI slot |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female SCSI II 100-pin x 1 20-pin Box Header x 2 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 128 (Bi-Direction) |
| Type | 1.8 V/TTL, 2.5 V/TTL , 3.3 V/TTL, 5 V/TTL |
| ON Voltage Level | 1.8V/TTL(Logic 1: 1.2 V Min.) 2.5V/TTL(Logic 1: 1.7 V Min.) 3.3V/TTL(Logic 1: 2.0 V Min.) 5V/TTL(Logic 1: 3.5 V Min.) |
| OFF Voltage Level | 1.8V/TTL(Logic 0: 0.65 V Max.) 2.5V/TTL(Logic 0: 0.7 V Max.) 3.3V/TTL(Logic 0: 0.8 V Max.) 5V/TTL(Logic 0: 1.5 V Max.) |
| Response Speed | 1 MHz (Typical) |
| Trigger Mode | Software (Pattern Match, Change of Status) |
| Data Transfer | Polling, Interrupt |
| Digital Output | |
| Channels | 128 (Bi-Direction) |
| Type | 1.8 V/TTL, 2.5 V/TTL , 3.3 V/TTL, 5 V/TTL |
| Sink/Source (NPN/PNP) | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Operation Mode | Static update, Waveform generation |
| Load Voltage | 1.8V/TTL(Logic 0: 0.65 V Max. ,Logic 1: 1.2 V Min.) 2.5V/TTL(Logic 0: 0.7 V Max. ,Logic 1: 1.7 V Min.) 3.3V/TTL(Logic 0: 0.8 V Max. ,Logic 1: 2.0 V Min.) 5V/TTL(Logic 0: 1.5 V Max. ,Logic 1: 3.5 V Min.) |
| Response Speed | 1 MHz (Typical) |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 32-bit |
| Power | |
| Consumption | 760 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 129 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
