PCI-P16C16U Universal PCI Card, 16-ch Isolated DI and 16-ch Sink DO
Universal PCI digital I/O card with 16 optically isolated DI channels (5000 Vrms) and 16 open-collector NPN DO channels for PC-based control and monitoring.
- Universal PCI interface supporting 3.3 V and 5 V bus signalling, 32-bit, 33 MHz
- 16 optically isolated digital input channels with 5000 Vrms isolation
- 16 open-collector sink (NPN) digital output channels, 600 mA/+30 V per channel
- Selectable DC signal input filter and AC input with filter
- 4-bit Card ID switch for identifying boards in multi-card systems
- External power status LED indicator
225,00 € pro Stück
| 1–9 Stück | 225,00 € | |
|---|---|---|
| 10–30 Stück | 218,00 € | −3 % |
| ab 31 Stück | 214,00 € | −5 % |
Produktinformationen "PCI-P16C16U Universal PCI Card, 16-ch Isolated DI and 16-ch Sink DO"

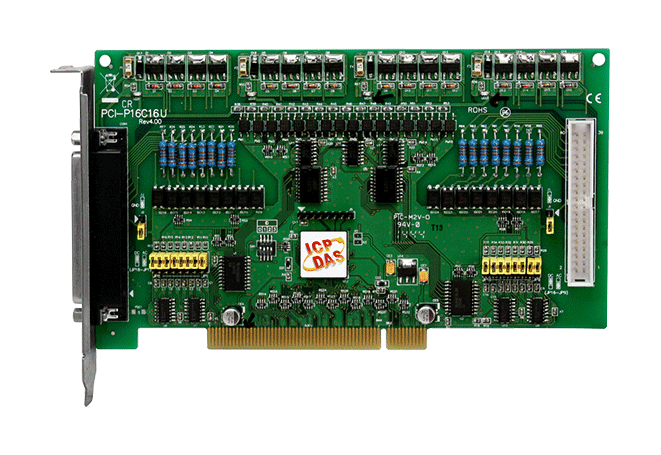

The PCI-P16C16U CR is a universal PCI card for 3.3 V/5 V slots that gives a host PC 16 optically isolated digital inputs and 16 open-collector sink (NPN) digital outputs. The input side isolates the computer from ground loops and voltage spikes, so field signals can be floated safely.
Each input accepts AC or DC signals from 5 to 24 V, with a selectable DC filter for noisy lines. The outputs suit alarm and warning circuits, signal switching and driving external loads that need a higher voltage level, with each channel rated at 600 mA/+30 V at 100% duty.
Where two or more boards share one computer, the 4-bit Card ID switch lets software identify each card. This order includes a CA-4037W cable and two CA-4002 D-Sub connectors for wiring.
Applications
- Alarm and warning notifications
- Control of signal outputs
- Switching external circuits that require a higher voltage level
- Signal transmission
- Digital input monitoring in PC-based data acquisition
| Product type: | PCI DAQ board |
|---|---|
| Interface: | PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Isolation: | 5000 Vrms |
| Operating temperature: | 0 ~ +60°C |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 40-pin box header x 1 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 16 |
| Type | Wet Contact Photocoupler |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz) |
| OFF Voltage Level | AC/DC 0 ~ 1 V |
| Response Speed | Without Filter: 50 kHz (Typical) With Filter: 0.455 kHz (Typical) |
| Trigger Mode | Static Update |
| Isolation | 5000 Vrms |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Operation Mode | Static Update |
| Load Current | DC: 600 mA/+30 V for one channel @ 100% duty |
| Response Speed | 4 kHz (Typical) |
| Isolation | 3750 Vrms |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 800 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 183 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
