PCIe-S118/D2 PCI Express Serial Board, 8-Port RS-232
PCI Express serial communication card with 8 RS-232 ports, a 256-byte FIFO per port and speeds up to 921600 bps. Supplied with one CA-9-6210 cable.
- Eight RS-232 ports on a PCI Express x1 card
- 256-byte hardware FIFO for each port
- Baud rates from 2400 to 921600 bps with full-duplex support
- COM port number assigned automatically or selected under software control
- Parity options None, Even, Odd, Mark and Space; 5 to 8 data bits; 1, 1.5 or 2 stop bits
- Short card design with 0 to +60 °C operating temperature
276,00 € pro Stück
| 1–9 Stück | 276,00 € | |
|---|---|---|
| 10–30 Stück | 268,00 € | −3 % |
| ab 31 Stück | 262,00 € | −5 % |
Produktinformationen "PCIe-S118/D2 PCI Express Serial Board, 8-Port RS-232"

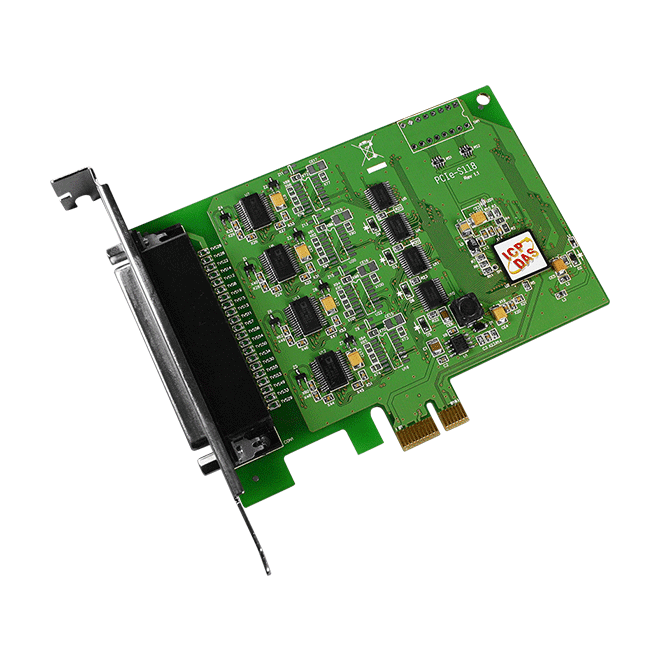

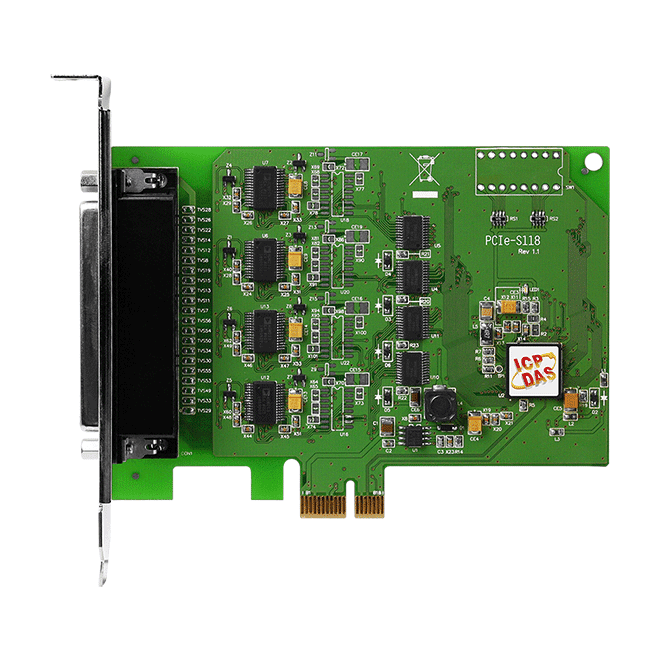

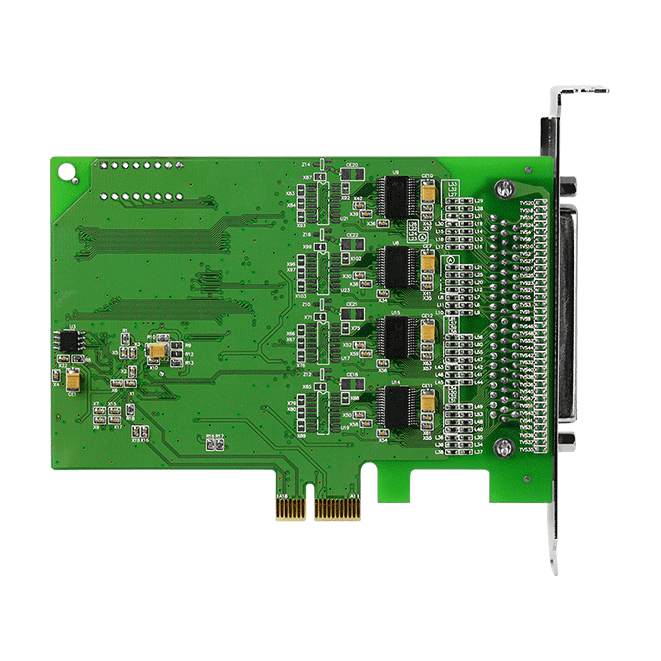

PCIe-S118/D2 CR adds eight RS-232 serial ports to a host PC through a single PCI Express x1 slot. Each port has its own 256-byte hardware FIFO and supports full-duplex communication at rates from 2400 to 921600 bps, which suits engineers connecting several serial devices to one workstation or industrial PC.

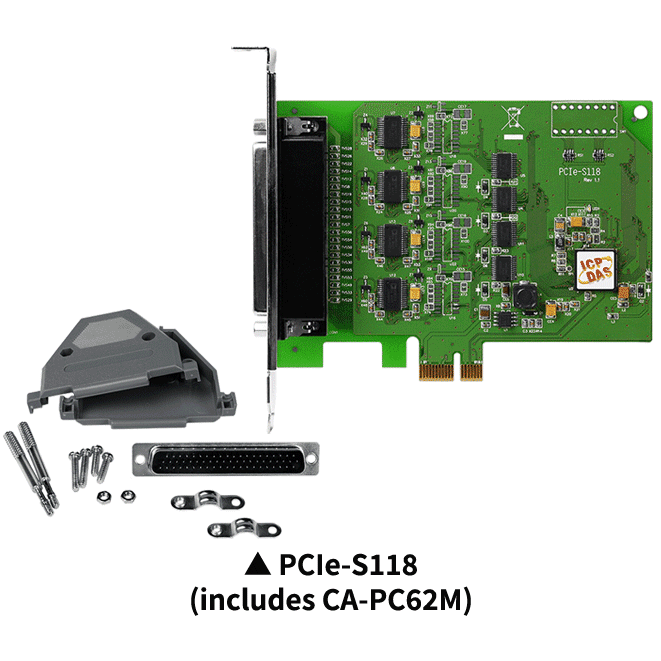

This variant ships with the CA-9-6210 cable rather than the CA-PC62M D-Sub connector supplied with the PCIe-S118 CR. COM port numbers can be assigned automatically by the driver or selected under software control, and the short card design fits compact chassis.
Typical targets include bar code readers, serial printers, intelligent sensors and instrumentation equipment, as well as any device fitted with an RS-232 port.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
| Product type: | Multi-port serial board |
|---|---|
| Interface: | PCI Express |
| Ports: | 8 |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Hardware | |
|---|---|

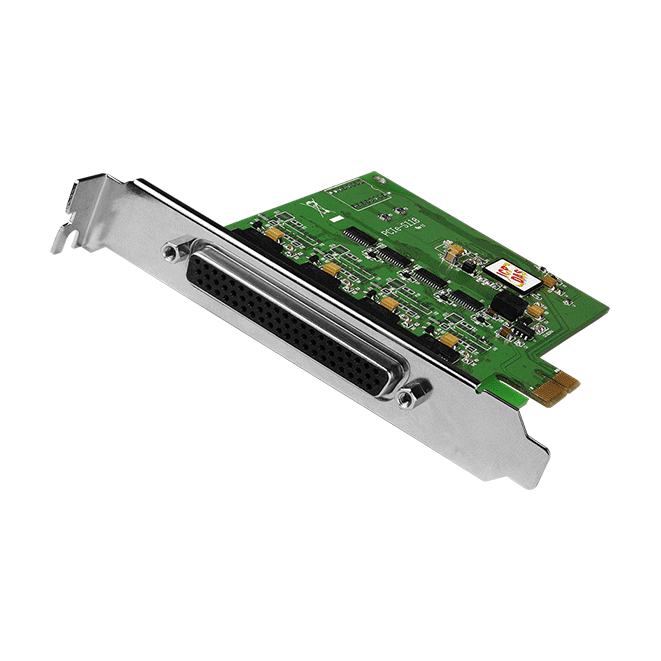

| Connector | Female DB-62 |
| COM Ports | |
| Ports | 8 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND) |
| Baud Rate | 2400 - 921600 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 121 x 131 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
