PCIe-S148 PCI Express Serial Board, 8-Port RS-422/485
8-port RS-422/485 PCI Express serial communication board with a 256-byte FIFO per port, speeds up to 921600 bps and full-duplex support. Supplied with CA-PC62M D-Sub connector.
- Eight RS-422/485 ports on one PCI Express x1 card
- 256-byte hardware FIFO for each port
- Baud rates from 2400 to 921600 bps with full-duplex support
- Automatic COM port number assignment or software-controlled selection
- Data bits 5 to 8, stop bits 1, 1.5 or 2, and five parity options
- Short card design, 120 mA at 5 V
165,00 € pro Stück
| 1–9 Stück | 165,00 € | |
|---|---|---|
| 10–30 Stück | 160,00 € | −3 % |
| ab 31 Stück | 157,00 € | −5 % |
Produktinformationen "PCIe-S148 PCI Express Serial Board, 8-Port RS-422/485"

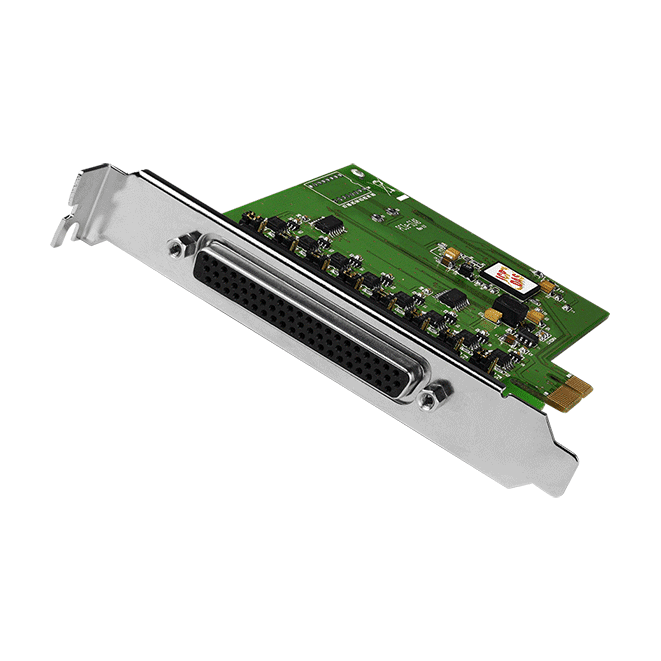

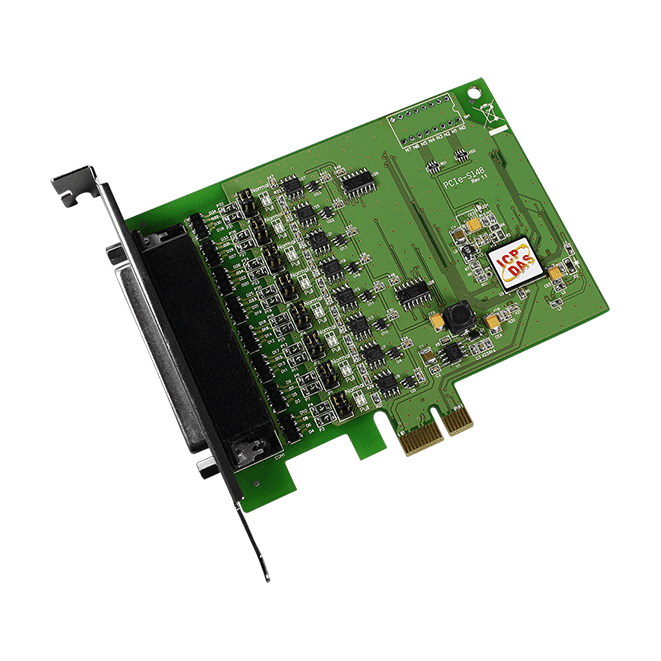

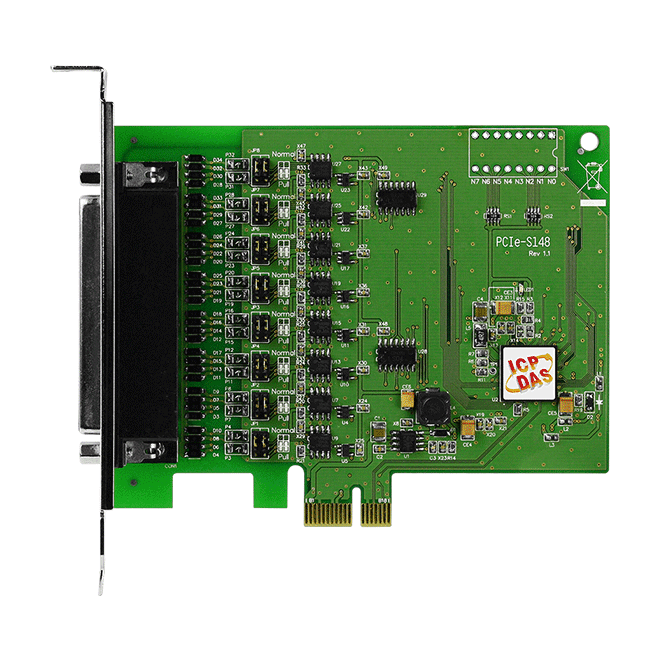

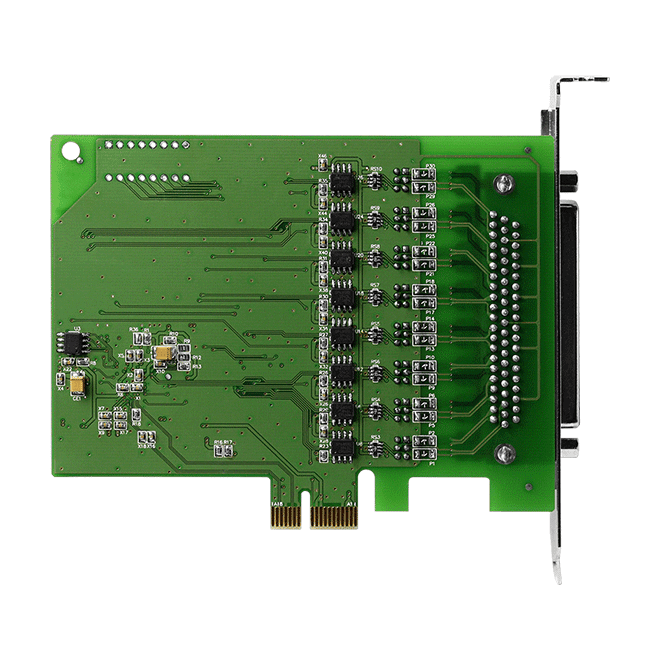

The PCIe-S148 CR adds eight RS-422/485 serial ports to a PC through a single PCI Express x1 slot. Each port has its own 256-byte hardware FIFO, which helps keep data flowing reliably when several serial devices are connected at once.
Ports run from 2400 to 921600 bps and support full-duplex communication. Data bits (5 to 8), stop bits (1, 1.5 or 2) and parity (none, even, odd, mark or space) are configurable, so the board can be matched to most legacy and modern serial peripherals.

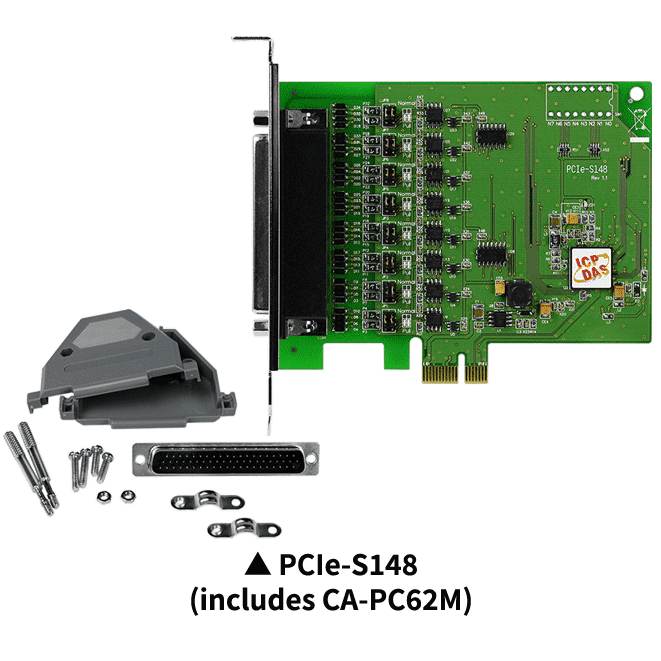

COM port numbers can be assigned automatically by the driver or selected under software control. This version ships with a CA-PC62M D-Sub connector; the /D2 variant is supplied with a CA-9-6210 cable instead.
Applications
- Industrial machinery
- Building automation
- Restaurant appliances
- Laboratory equipment and research
- Industrial communication
| Product type: | Serial communication board |
|---|---|
| Interface: | PCI Express x1 |
| Ports: | 8 |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB-62 |
| COM Ports | |
| Ports | 8 x RS-422/485 (RS-422: TxD+, TxD-, RxD+, RxD-, GND / RS-485: Data+, Data-, GND) |
| Baud Rate | 2400 - 921600 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 93.1 x 115.7 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
