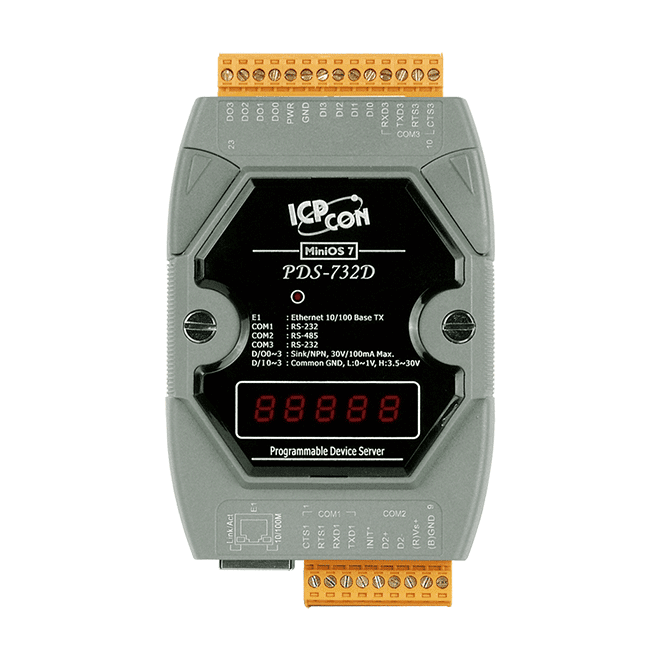

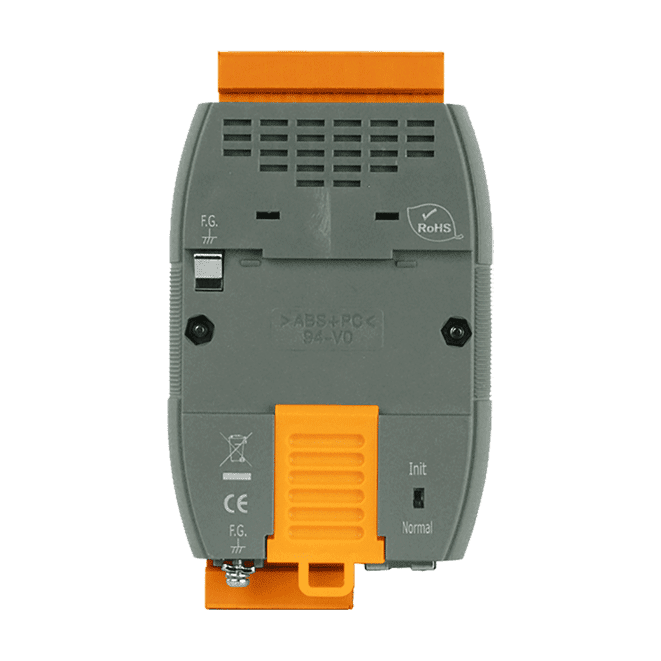

PDS-732D Serial-to-Ethernet Device Server, 2x RS-232 and 1x RS-485
Programmable device server that links two RS-232 ports and one RS-485 port to an Ethernet network, with 4 DI, 4 DO and an LED display. Includes CA-0910 cable.
- Connects RS-232 and RS-485 serial devices to an Ethernet network
- VxComm driver extends PC COM ports as virtual COM ports, supporting 32/64-bit Windows 7 SP1/10/2012/2016
- Modbus TCP to RTU/ASCII gateway function for SCADA and HMI communications
- Programmable with the built-in MiniOS7 and Xserver programming structure
- 4 digital inputs with latched and counter functions, plus 4 open-collector digital outputs
- Watchdog timer and +/-4 kV ESD protection circuit on serial port
290,00 € pro Stück
| 1–9 Stück | 290,00 € | |
|---|---|---|
| 10–30 Stück | 281,00 € | −3 % |
| ab 31 Stück | 275,00 € | −5 % |
Produktinformationen "PDS-732D Serial-to-Ethernet Device Server, 2x RS-232 and 1x RS-485"
PDS-732D CR is a programmable serial-to-Ethernet device server for bringing legacy RS-232 and RS-485 equipment onto an Ethernet network without replacing the serial devices. The built-in VxComm driver maps the serial ports to virtual COM ports on a Windows PC, so existing COM-based software can continue to work over the network.
The unit runs the MiniOS7 operating system and an Xserver programming structure, allowing custom Ethernet applications to be developed on the device. It can also act as a Modbus TCP to RTU/ASCII gateway, which suits SCADA and HMI systems that speak Modbus TCP to serial field devices. Four digital inputs support latched and counter functions, and four open-collector digital outputs (NPN sink) switch loads up to 30 VDC and 100 mA.
The plastic-cased PDS-732D is intended for DIN-rail or wall mounting and is powered from a +10 ~ 30 VDC terminal block. Its operating range is -25 ~ +75 °C. A watchdog timer and +/-4 kV ESD protection on the serial port support use in demanding environments. A CA-0910 cable is included with each unit.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 3 serial, 1 Ethernet |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 5 x digit 7 Segment |
| Digital Input | |
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source, Common Ground |
| ON Voltage Level | +3.5 ~ +30 V |
| OFF Voltage Level | +1 V max. |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 2 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 |
| Stop Bit | 1, 2: for COM1 ~ COM3 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.7 W |
| Powered from Terminal Block | +10 ~ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
