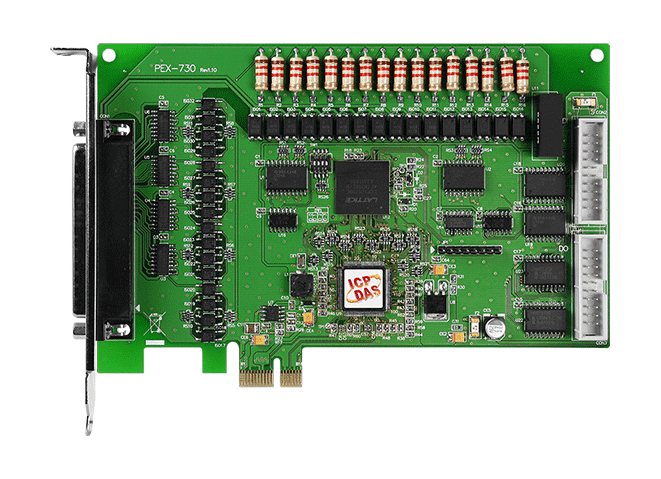

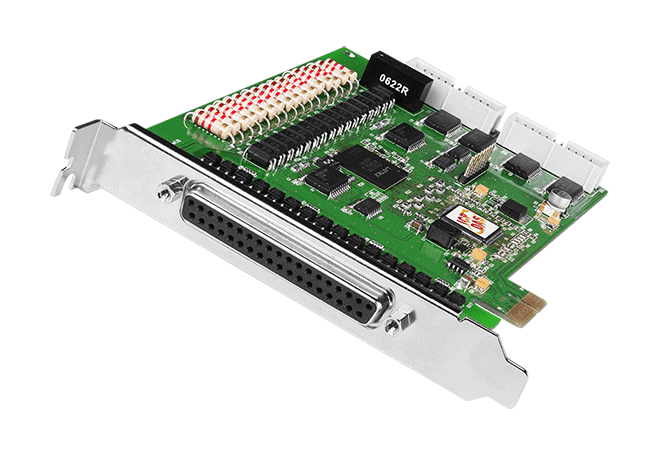

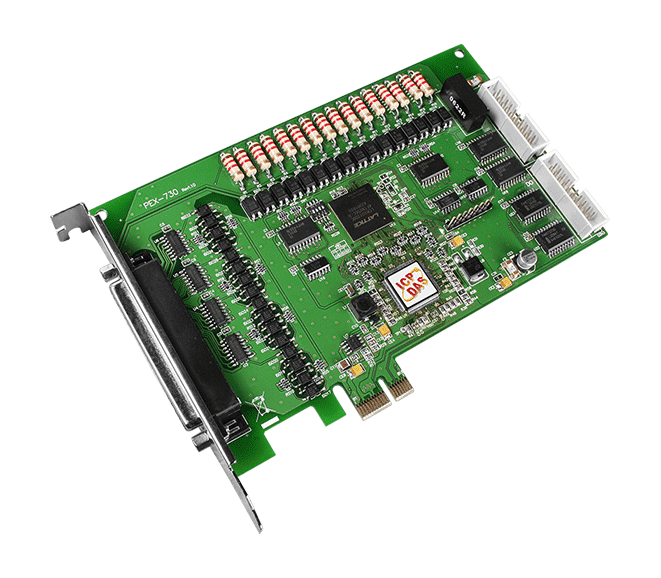

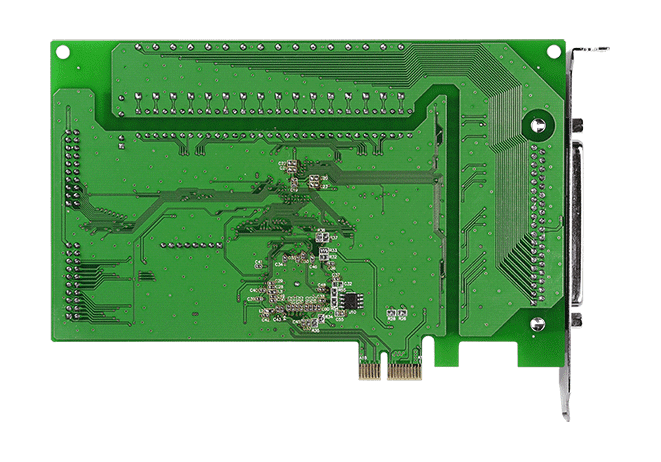

PEX-730 PCI Express Digital I/O Board, 32-ch Isolated DI/DO (NPN Sink)
PCI Express x1 board with 32 isolated DI/DO channels (NPN sink outputs) and 32 TTL I/O channels. Includes one CA-4002 D-Sub connector.
- PCI Express x1 interface with 8-bit data bus
- 16 optically isolated digital inputs with 3750 Vrms isolation
- 16 isolated open-collector outputs, NPN sink, 100 mA/+30 V per channel
- 16 additional 5 V/TTL digital inputs and 16 TTL digital outputs
- Output status readback and two interrupt sources
- 4-bit Card ID SMD switch for multi-card systems
239,00 € pro Stück
| 1–9 Stück | 239,00 € | |
|---|---|---|
| 10–30 Stück | 231,00 € | −3 % |
| ab 31 Stück | 227,00 € | −5 % |
Produktinformationen "PEX-730 PCI Express Digital I/O Board, 32-ch Isolated DI/DO (NPN Sink)"
The PEX-730 CR is a PCI Express x1 digital I/O board that combines 16 optically isolated digital inputs and 16 isolated open-collector outputs with 16 TTL-level inputs and 16 TTL-level outputs. Isolation is rated at 3750 Vrms, so field inputs can be floated to avoid ground loops and the host computer is protected from damaging voltages.
The isolated outputs are NPN Darlington sink types with an integrated suppression diode for inductive loads, rated at 100 mA/+30 V per channel at 100% duty. They suit alarm and warning signalling, control of external circuits needing a higher voltage level, and general signal output control. The inputs support wet contact sensing from 9 to 24 V, and the internal power supply for dry-contact inputs is isolated to 3000 VDC.
When more than one card is fitted in the same PC, the onboard 4-bit Card ID switch lets software identify each board. The PEX-730 CR is designed as a direct replacement for the PISO-730U and PISO-730A with no software or driver modifications required.
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 16 isolated + 16 TTL |
| Digital outputs: | 16 isolated + 16 TTL |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI Express slot |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 16 (Isolated) + 16 (Non-isolated ) |
| Type | Wet Contact Isolated: Photocoupler Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Wet: 9 ~ 24 V (Min. 7 V; Max. 30 V) TTL: 2.0 V Min. |
| OFF Voltage Level | Wet: 0 ~ 1 V TTL: 0.8 V Max. |
| Response Speed | 4 kHz (Typical) (Isolated) 500 kHz(Typical) (Non-isolated) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Isolated) |
| Digital Output | |
| Channels | 16 (Isolated) + 16 (Non-isolated ) |
| Type | Open Collector Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Operation Mode | Static Update |
| Load Voltage | Non-isolated: Logic 0: 0.4 V max. Logic 1: 2.4 V min. |
| Load Current | 100 mA/+30 V for each channel @ 100% duty (Isolated) Sink: 2.4 mA @ 0.8 V (Non-isolated) Source: 0.8 mA @ 2.0 V (Non-isolated) |
| Response Speed | 4 kHz (Typical) (Isolated) 500 kHz (Non-isolate) |
| Isolation | 3750 Vrms (Isolated) |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 8-bit |
| Power | |
| Consumption | 350 mA @ +3.3 V 250 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 116 x 163 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
