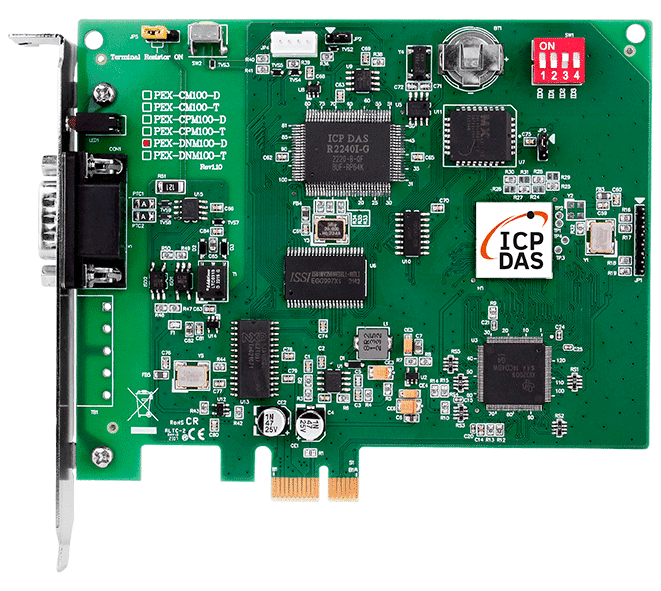

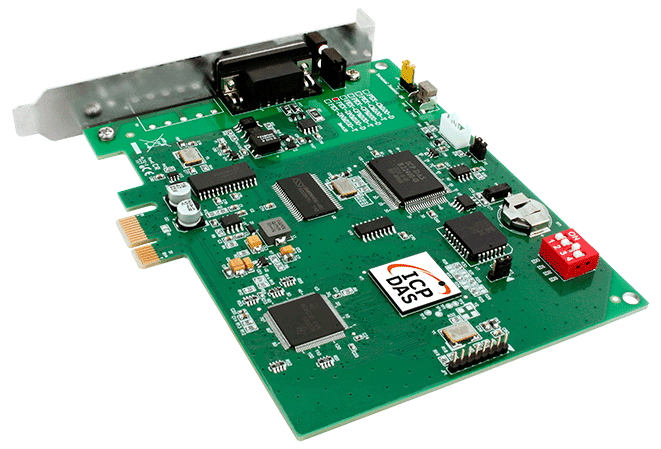

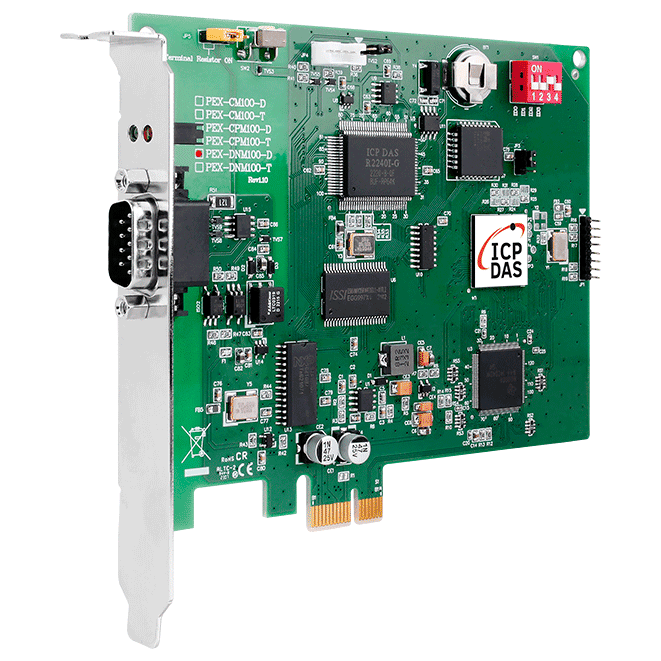

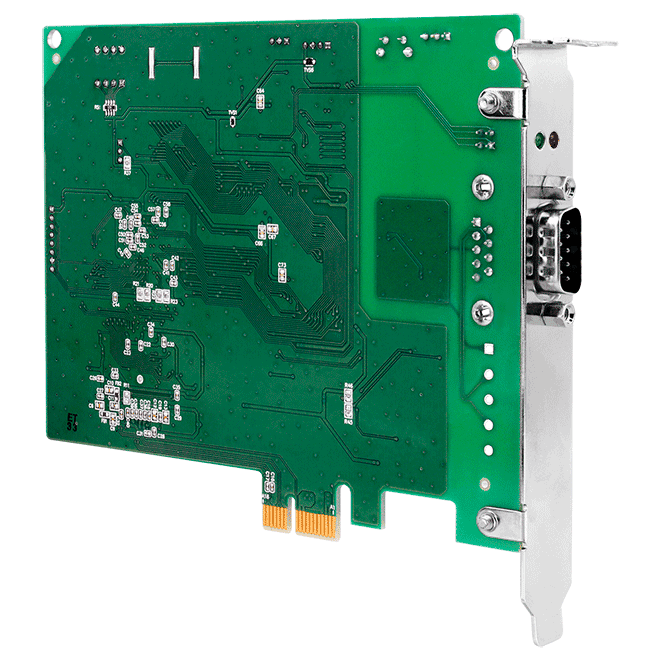

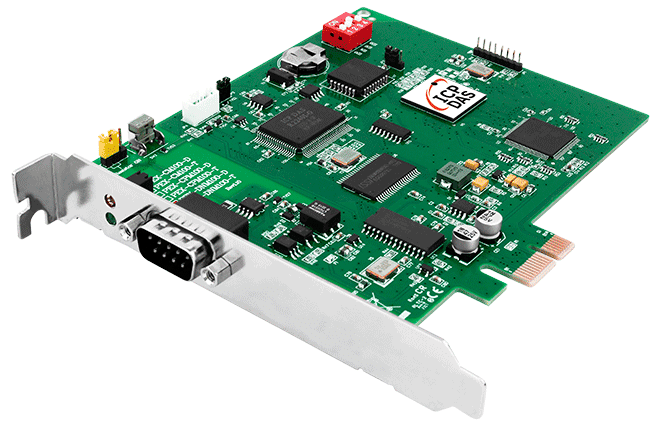

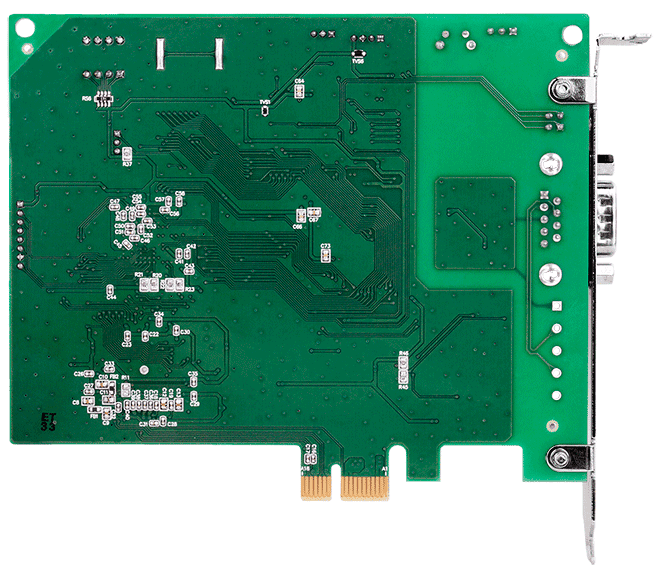

PEX-DNM100-D PCI Express DeviceNet Master Board, 1-Port
1-port intelligent DeviceNet master PCI Express board with a 9-pin D-Sub connector, supporting 125, 250 and 500 kbps and up to 63 slave nodes.
- DeviceNet Volume I and II, Release 2.0 master with programmable MAC ID and baud rate
- Baud rates of 125 kbps, 250 kbps and 500 kbps
- Up to 63 slave nodes, with 512 bytes maximum input and output per slave
- I/O operating modes: Poll, Bit-Strobe and Change of State / Cyclic
- Group 2 and UCMM connection support with auto-detection of Group 2 and UCMM devices
- Auto-search, on-line adding and removing of devices, and auto-reconnect
460,00 € pro Stück
| 1–9 Stück | 460,00 € | |
|---|---|---|
| 10–30 Stück | 446,00 € | −3 % |
| ab 31 Stück | 437,00 € | −5 % |
Produktinformationen "PEX-DNM100-D PCI Express DeviceNet Master Board, 1-Port"
The PEX-DNM100-D adds a DeviceNet master to a Windows PC through a PCI Express slot. It acts as the master on a DeviceNet network and communicates with slave devices using the predefined master-slave connection set, with Group 2 server and UCMM functions. Its independent CAN bus port makes it a cost-effective option for DeviceNet applications that need a dedicated master interface.
The board uses an NXP SJA1000 CAN controller, which handles bus arbitration, error detection with automatic correction and retransmission. Master MAC ID and baud rate are programmable, and the board supports auto-search, on-line adding and removing of devices, and automatic reconnection after a broken connection.
Supplied with drivers for Windows XP, 7, 8 and 10 (32-bit and 64-bit) and an SDK for VB 6.0, VC++ 6.0, BCB 6.0 and Visual Studio .NET, it suits industrial automation, building automation, vehicle, marine and embedded control networks.
Applications
- Industrial automation
- Building automation
- Vehicle systems
- Marine systems
- Embedded control networks
| Product type: | DeviceNet master board |
|---|---|
| Interface: | PCI Express |
| Protocol: | DeviceNet |
| Ports: | 1 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Operating temperature: | 0 ~ +60 ℃ |
Technische Daten
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS) |
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Visual Studio .NET |
| LED Indicators | |
| Status | Green LED, Red LED |
| PC Bus | |
| Type | PCI Express bus |
| Board No. | By DIP switch |
| DeviceNet | |
| Controller | NXP SJA1000T Built-in Microprocessor |
| Ports | 1 |
| Baud Rate | 125 k, 250 k, 500 k |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Protocol | DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
| CAN Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power | |
| Consumption | 300 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 133 x 22 x 98 (W x L x H) |
| Environment | |
| Operating Temperature | 0 ~ +60 ℃ |
| Storage Temperature | -20 ~ +70 ℃ |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
