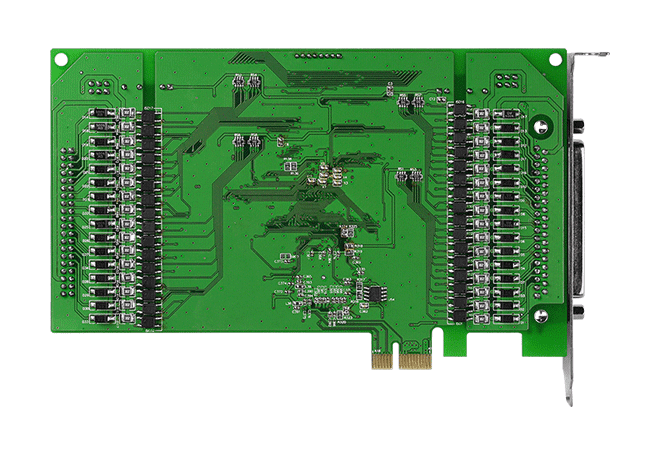

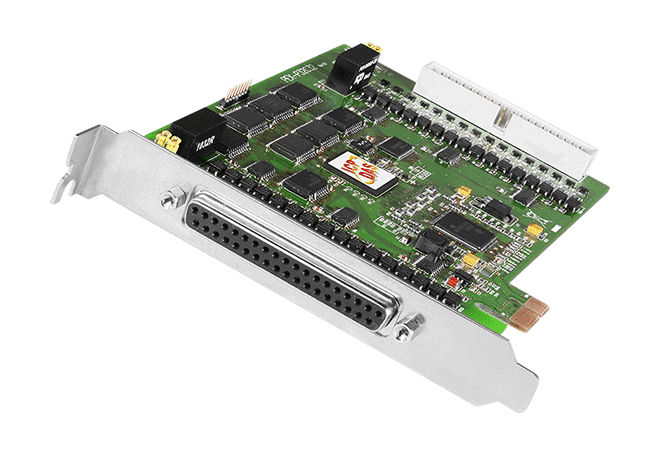

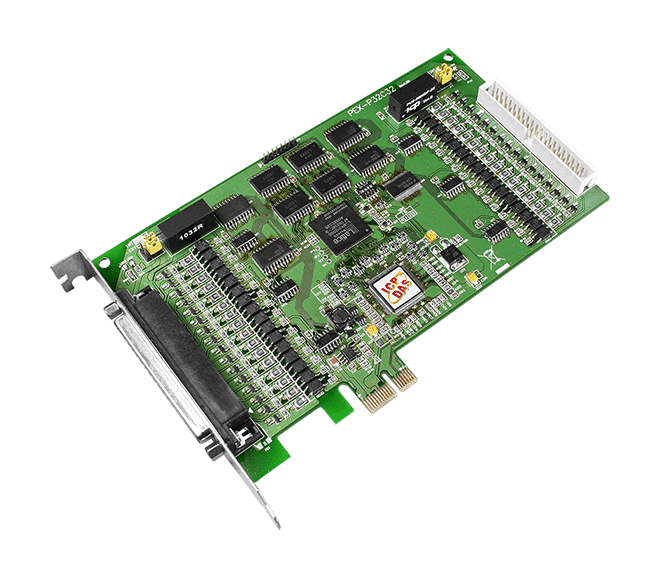

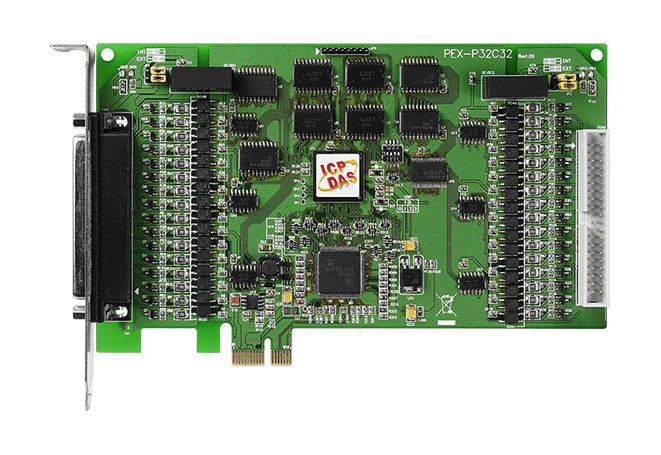

PEX-P32C32 PCI Express Isolated DI/DO Board, 32-ch DI and 32-ch NPN DO
PCI Express x1 DAQ board with 32 optically isolated digital inputs and 32 NPN sink open-collector digital outputs, for factory, test and laboratory automation.
- 32 optically isolated digital inputs, sink/source, dry or wet contact, 9 ~ 24 V wet range
- 32 optically isolated NPN open-collector outputs, 100 mA/+30 V per channel at 100% duty
- 3750 Vrms photo-isolation, with 3000 VDC isolated internal supply option for dry-contact inputs
- Output status readback at register level
- 4-bit Card ID switch for identifying boards in multi-card systems
- 4 kHz typical response speed on both inputs and outputs
261,00 € pro Stück
| 1–9 Stück | 261,00 € | |
|---|---|---|
| 10–30 Stück | 253,00 € | −3 % |
| ab 31 Stück | 248,00 € | −5 % |
Produktinformationen "PEX-P32C32 PCI Express Isolated DI/DO Board, 32-ch DI and 32-ch NPN DO"
PEX-P32C32 CR is a PCI Express x1 digital I/O board that pairs 32 optically isolated digital inputs with 32 optically isolated digital outputs, arranged in four isolated banks. It suits engineers who need to read dry or wet contacts and switch sink-type loads from a host PC while keeping the computer electrically separated from field wiring.
Each input channel uses a photocoupler and can be set by jumper to use either an internal isolated supply for dry-contact sensing or an external supply for wet signals. The outputs are NPN open-collector sinks rated at 100 mA per channel at +30 V, and output status can be read back at register level. An onboard 4-bit Card ID switch lets software identify the board when two or more cards are installed in the same computer.
- Suited to factory automation, product test and laboratory automation applications.
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Ports: | DB37, 40-pin box header |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI Express slot |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 40-pin box header x 1 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 32 |
| Type | Dry + Wet Contact Photocoupler |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: 9 ~ 24 V(Min. 7 V ; Max. 30 V) |
| OFF Voltage Level | Dry: Open Wet: 0 ~ 1 V |
| Response Speed | 4 kHz (Typical) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Using external power) |
| Digital Output | |
| Channels | 32 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Operation Mode | Static Update |
| Load Current | 100 mA/+30 V for each channel @ 100% duty |
| Response Speed | 4 kHz (Typical) |
| Isolation | 3750 Vrms |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 8-bit |
| Power | |
| Consumption | 550 mA @ +3.3 V 350 mA @ +12 V |
| Mechanical | |
| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
