PIO-D96U Universal PCI Digital I/O Board, 96-ch TTL, Twelve 8-bit Ports
Universal PCI digital I/O board with 96 TTL lines arranged as twelve bidirectional 8-bit ports, all buffered on board, for 3.3 V and 5 V PCI slots.
- Universal PCI interface supporting 3.3 V and 5 V PCI slots, 32-bit, 33 MHz
- 96 TTL digital I/O lines in twelve 8-bit bidirectional programmable ports
- All I/O lines buffered on the board, with buffered outputs for higher driving capability
- Typical DI/O response of about 1 MHz (1 μs)
- 4-channel interrupt source
- 4-bit Card ID SMD switch for identifying boards in multi-board systems
179,00 € pro Stück
| 1–9 Stück | 179,00 € | |
|---|---|---|
| 10–30 Stück | 174,00 € | −3 % |
| ab 31 Stück | 170,00 € | −5 % |
Produktinformationen "PIO-D96U Universal PCI Digital I/O Board, 96-ch TTL, Twelve 8-bit Ports"

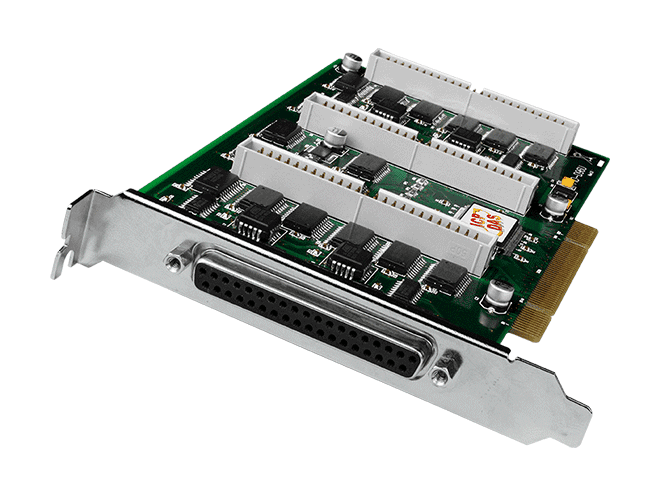

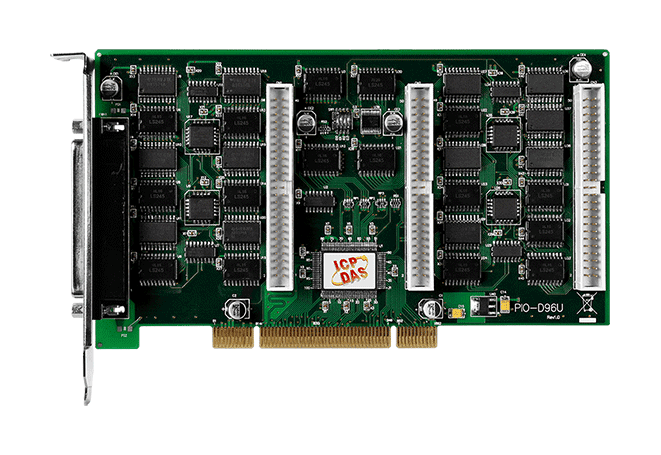

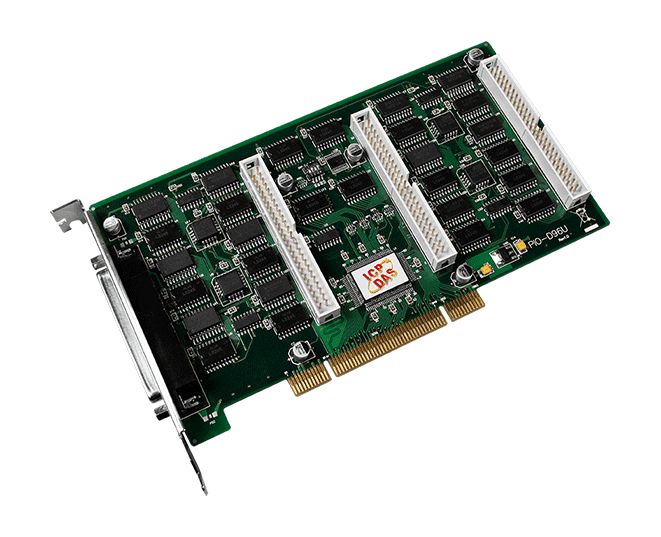

PIO-D96U CR is a universal PCI card for engineers who need a large block of TTL digital I/O in an industrial PC. Its 96 lines are grouped into twelve 8-bit bidirectional ports, so each group of three ports maps to Port A, Port B and Port C. All ports power up as inputs, which gives a safe starting state after power-on or reset.

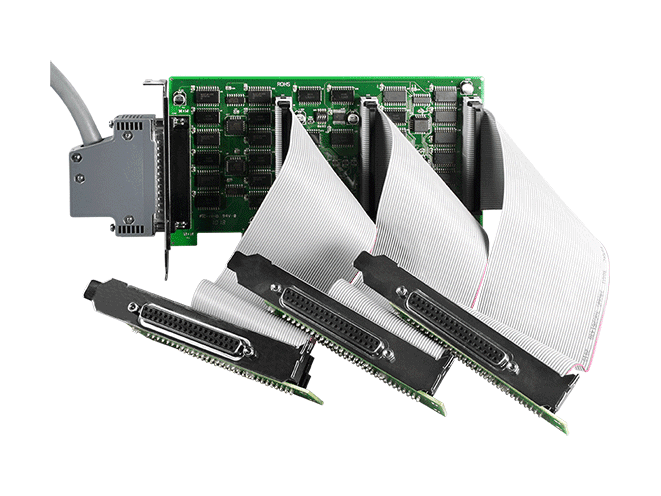

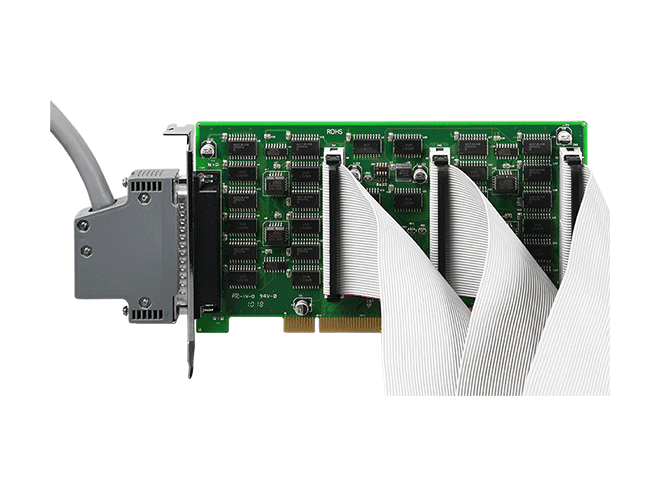

The card runs in both 3.3 V and 5 V PCI slots and provides four connectors for field wiring: one female DB37 and three 50-pin box headers. Every I/O line is buffered on the board, and the buffered outputs offer higher driving capability than unbuffered lines. Pull-high/low jumpers let you define the state of digital inputs when a channel is disconnected or interrupted, rather than leaving it floating.
An onboard 4-bit Card ID switch allows software to identify each board when two or more are installed in the same computer. Software support covers Linux, DOS and Windows, with a DLL, an ActiveX control and sample programs for several development environments, including C#.NET, Visual Basic.NET and LabVIEW.
Applications
- Digital I/O control and monitoring in industrial PCs with a free PCI slot
- Multi-board systems where individual cards must be identified in software
- Interrupt-driven digital input applications using the four-channel interrupt source
| Product type: | DAQ board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 96 |
| Digital outputs: | 96 |
| Ports: | Twelve |
| Power input: | +5 V, 600 mA |
| Operating temperature: | 0 ~ +60°C |
| Mounting: | PCI slot |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 50-pin box header x 3 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 96 (Bi-Direction) |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 96 (Bi-Direction) |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.1 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Response Speed | 1 MHz (Typical) |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 600 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
