PIO-DA16U Universal PCI Analog Output Board, 16-ch 14-bit
16-channel, 14-bit analog output card for 3.3 V/5 V universal PCI slots, with 16 channels of 5 V/TTL digital input and 16 of digital output. Supplied with a CA-4002 D-Sub connector.
- 16 analogue output channels, 14-bit, each individually configurable as ±10 V voltage or 0 ~ 20 mA current output
- Software calibration with calibration data saved in EEPROM, no jumpers or trim-pots required
- 16-channel 5 V/TTL digital input with pull-high and pull-low function
- 16-channel 5 V/TTL digital output
- Three 16-bit timer/counter channels with 4 MHz internal reference clock
- Universal PCI (3.3 V/5 V), 32-bit, 33 MHz interface with 4-bit Card ID (SMD switch) for Version 1.1 or above
525,00 € pro Stück
| 1–9 Stück | 525,00 € | |
|---|---|---|
| 10–30 Stück | 509,00 € | −3 % |
| ab 31 Stück | 499,00 € | −5 % |
Produktinformationen "PIO-DA16U Universal PCI Analog Output Board, 16-ch 14-bit"

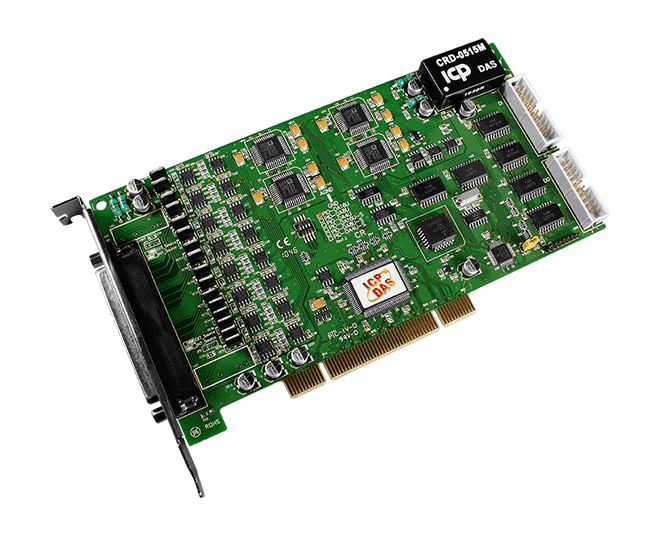

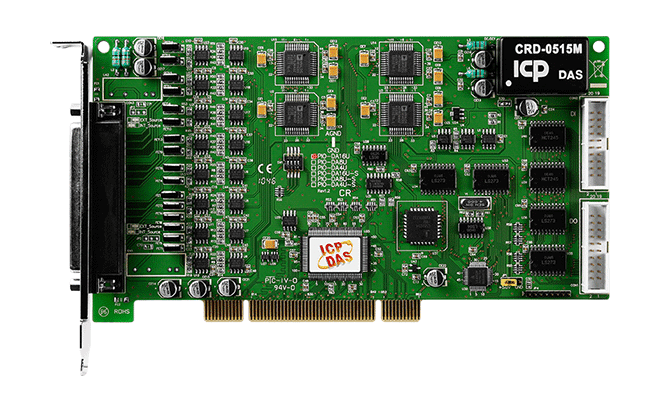

The PIO-DA16U CR is a universal PCI data acquisition card providing 16 analogue output channels at 14-bit resolution. Each channel can be set individually to voltage output (±10 V) or current output (0 ~ 20 mA), which suits mixed actuator and instrument loops in a single PC.
Calibration is performed in software rather than with jumpers and trim-pots, and the calibration data can be stored in EEPROM. The card also carries 16 channels of 5 V/TTL digital input with pull-high and pull-low options, 16 channels of 5 V/TTL digital output, and a 4-bit Card ID switch so that software can identify individual boards when two or more are installed in the same computer. Three 16-bit timer/counter channels with a 4 MHz internal reference are also included.
The card is supplied with one CA-4002 D-Sub connector. Its 14-bit analogue outputs are specified at 0.04% of FSR ±2 LSB at 25 °C for ±10 V, and it operates from 0 to +60°C.
Applications
- High speed data acquisition system
- Process monitor and control
- Vibration analysis
- Digital pattern generator from digital I/O port
| Product type: | DAQ board |
|---|---|
| Interface: | Universal PCI (3.3 V/5 V) |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog outputs: | 16 |
| Ports: | Female DB37 x 1 |
| Operating temperature: | 0 ~ +60°C |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Card ID | Yes(4-bit) for Version 1.1 or above |
| Analog Output | |
| Channels | PIO-DA4U : 4 PIO-DA8U : 8 PIO-DA16U : 16 |
| Range | Voltage: ±10 V Current: 0 ~ 20 mA |
| Resolution | 14-bit |
| Accuracy | 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
| Response Time | 333 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 0.71 V/μs |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | PIO-DA4U : 600 mA@ +5 V PIO-DA8U : 800 mA@ +5 V PIO-DA16U : 1400 maA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105.1 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
