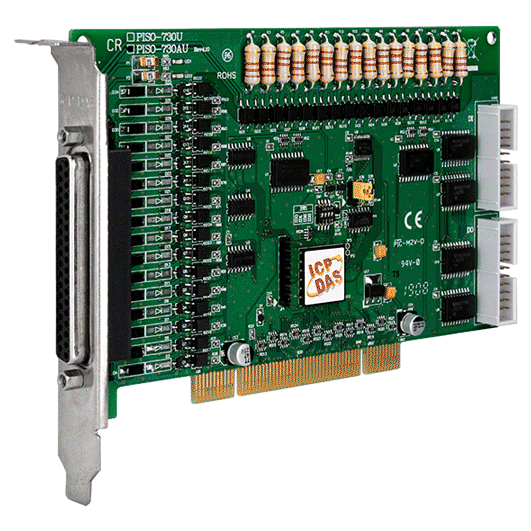

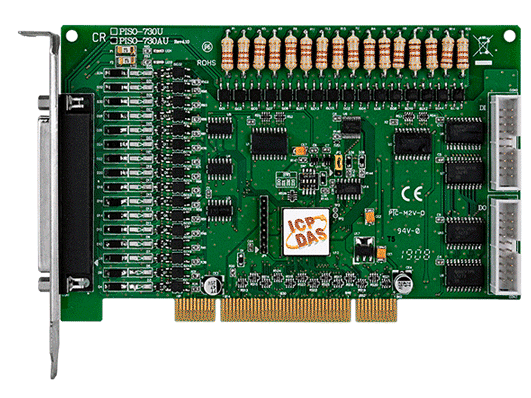

PISO-730AU Universal PCI Card, 32-ch Isolated and 32-ch TTL Digital I/O
Universal PCI digital I/O board with 32 optically isolated channels and 32 TTL channels, rated 3750 Vrms isolation. Supplied with one CA-4002 D-Sub connector.
- 32 isolated digital I/O channels (16 DI and 16 DO) with 3750 Vrms isolation
- 32 TTL-level digital I/O channels (16 DI and 16 DO) for direct logic-level signals
- Isolated outputs are PNP open-emitter type rated at 100 mA/+30 V per channel
- Universal 3.3 V/5 V PCI interface, 32-bit, 33 MHz
- Two interrupt sources and a 4-bit card ID
- Female DB37 connector plus two 20-pin box headers; CA-4002 D-Sub connector included
232,00 € pro Stück
| 1–9 Stück | 232,00 € | |
|---|---|---|
| 10–30 Stück | 225,00 € | −3 % |
| ab 31 Stück | 220,00 € | −5 % |
Produktinformationen "PISO-730AU Universal PCI Card, 32-ch Isolated and 32-ch TTL Digital I/O"
The PISO-730AU CR is a universal PCI card that combines two digital I/O groups on one board: 16 optically isolated input and 16 isolated PNP output channels, plus 16 TTL input and 16 TTL output channels. It suits engineers who need to switch or sense field signals on a PC without a direct electrical connection between the host and the wiring.
The isolated channels provide 3750 Vrms isolation, which helps break ground loops and shields the host computer from voltage spikes. Each isolated output is rated at 100 mA at +30 V per channel at 100% duty, and the outputs are open-emitter PNP type. The board is supplied with one CA-4002 D-Sub connector for field wiring.
- Supports 3.3 V and 5 V universal PCI slots (32-bit, 33 MHz)
- Static update trigger mode with 4 kHz typical response on isolated channels
- Two interrupt sources and a 4-bit card ID for multi-card systems
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | PCI digital I/O board |
|---|---|
| Interface: | PCI |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60 °C |
Technische Daten
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 16 (Isolated) + 16 (Non-isolated) |
| Type | Wet Contact Isolated: Photocoupler Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Wet: 9 ~ 24 V (Min. 7 V; Max. 30 V) TTL: 2.0 V Min. |
| OFF Voltage Level | Wet: 0 ~ 1 V TTL: 0.8 V Max. |
| Response Speed | 4 kHz (Typical) (Isolated) 1.0 MHz (Typical) (Non-isolate) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Isolated) |
| Digital Output | |
| Channels | 16 (Isolated) + 16 (Non-isolated ) |
| Type | Isolated: Open Emitter Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) | Source (PNP) |
| Operation Mode | Static Update |
| Load Voltage | Non-isolated: Logic 0: 0.4 V max. Logic 1: 2.4 V min. |
| Load Current | 100 mA/+30 V for each channel @ 100% duty (Isolated) Sink: 2.4 mA @ 0.8 V (Non-isolated) Source: 0.8 mA @ 2.0 V (Non-isolated) |
| Response Speed | 4 kHz (Typical) (Isolated) 1.2 MHz (Typical) (Non-isolate) |
| Isolation | 3750 Vrms (Isolated) |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 640 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105.06 x 163.68 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
