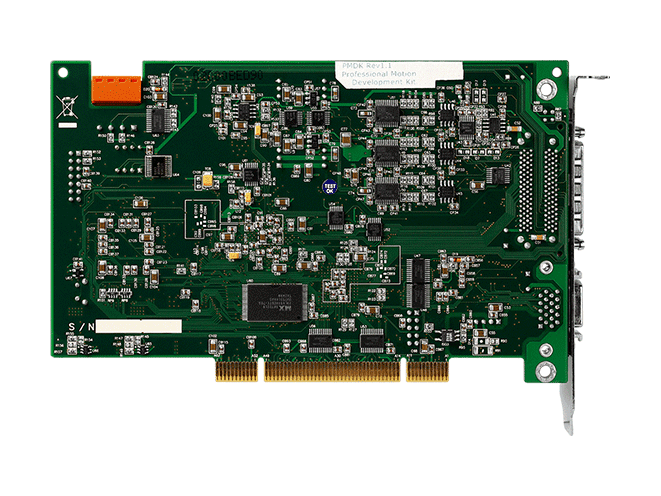

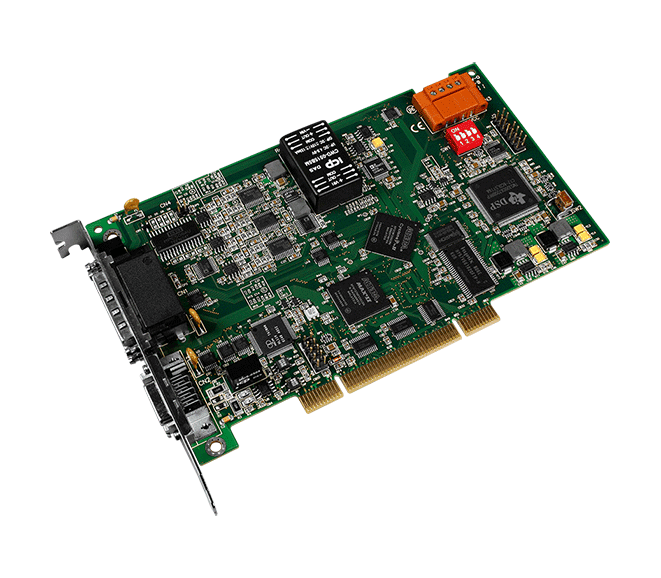

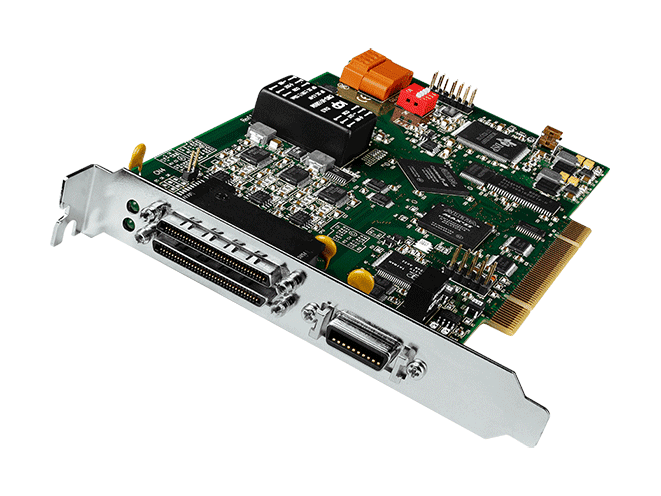

PMDK DSP-based 6-Axis PCI Motion Control Card, Development Kit
PMDK is a DSP-based PCI motion control card offering 6-axis pulse output, encoder input and expandable FRnet remote I/O for developers of custom motion applications.
- 6-axis motion control from a DSP-based PCI card
- Pulse output rate up to 4 MHz (max.)
- Encoder input counting rate of 12 MHz with 32-bit counter
- Home, positive and negative limit inputs for each axis
- High-speed position latching and comparing functions
- Manual pulse generator (MPG) interface
1.377,00 € pro Stück
| 1–9 Stück | 1.377,00 € | |
|---|---|---|
| 10–30 Stück | 1.336,00 € | −3 % |
| ab 31 Stück | 1.308,00 € | −5 % |
Produktinformationen "PMDK DSP-based 6-Axis PCI Motion Control Card, Development Kit"
The PMDK is a DSP-based motion control card for the PCI bus, intended for engineers developing professional motion control applications. It fits any IPC with a 5 V PCI bus and combines a high-speed DSP and an FPGA with I/O buffering circuitry, so it can cover pulse, analogue and digital I/O in a single card.
Motion functions include multi-axis linear and circular interpolation with acceleration and deceleration processing, plus synchronous actions set up through programming. Because the DSP runs on a real-time kernel, motion status and I/O status can be monitored during operation, and the low CPU loading means more than one card can be used in the same IPC.
Remote expansion is available through a single two-wire FRnet port, which supports up to 128 DI and 128 DO channels. Sample software for motion and signal processing tasks is included to shorten development time for custom programs.
Applications
- Semiconductor manufacturing
- Component inspection
- Manufacturing quality control
- Food and beverage inspection
- Microscopy and medical imaging
- Biometrics applications
- X-Y-Z tables
- Fix-pitch stamping machinery
- Transfer machinery
- Spinners
- Load/unload systems
| Product type: | Motion control card |
|---|---|
| Interface: | PCI |
| Protocol: | FRnet |
| Digital inputs: | 128 (expandable) |
| Digital outputs: | 128 (expandable) |
| Ports: | 1 FRnet |
| Isolation: | 2500 Vrms |
| Operating temperature: | -20 ~ +75 °C |
Technische Daten
| Hardware | |
|---|---|
| Connector | 68-pin SCSI-II and 20-pin SCSI-II |
| General | |
| No. of Axes | 6 |
| Servo Update Rate | User Programmable |
| Command Type | Pulse command, V command |
| Axis I/O | |
| Servo Interface Output | SVON, ALM_RST, ERC |
| Latch Input | High-Speed 5 V or 24 V NPN |
| Mechanical Switch Input | Home, LMT+/-, NHOME, EMG |
| Position Compare Output | High-Speed 5 V TTL or 24 V open collector |
| Servo Interface Input | INP, ALM, RDY |
| Encoder Input | |
| Mode | A/B Phase, Up/Down |
| Counting Rate | 12 MHz |
| Counter Width | 32-bit |
| Pulse Output | |
| Mode | CW/CCW, PULSE/DIR |
| Rate | 4 MHz (Max.) |
| Digital Input | |
| Channels | Expandable: 128 DI |
| Isolation | 2500 Vrms optical isolation (with DN-8368) |
| Digital Output | |
| Channels | Expandable: 128 DO |
| Isolation | 2500 Vrms optical isolation (with DN-8368) |
| PC Bus | |
| Type | Universal PCI Bus |
| Power | |
| Consumption | 1.5A |
| Environment | |
| Operating Temperature | -20 ~ +75°C |
| Storage Temperature | -30 ~ +85°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
