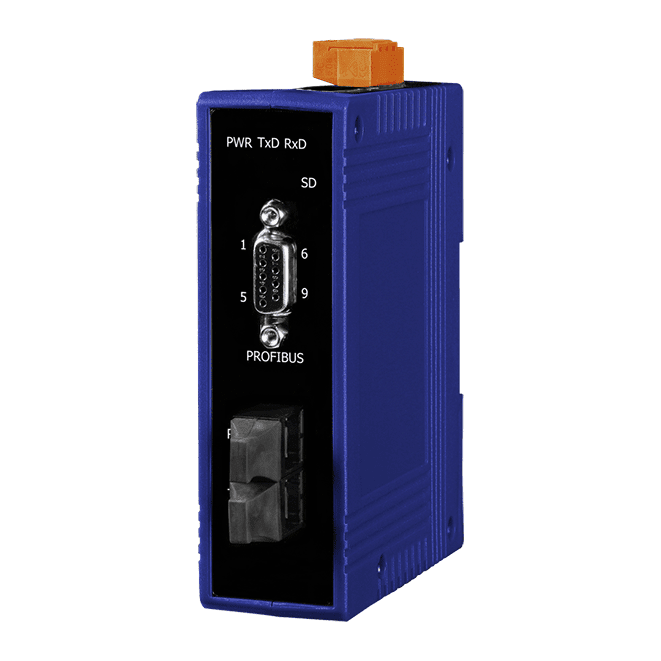

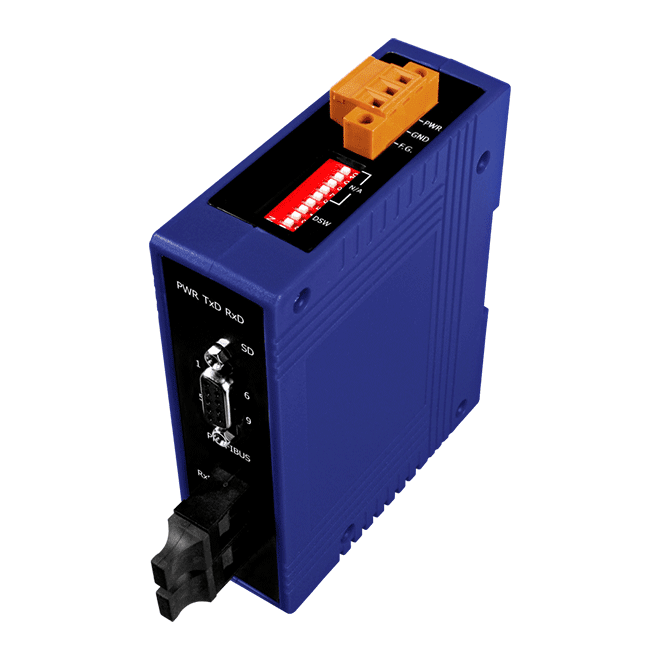

PROFI-2542-SC PROFIBUS to Single-mode Fiber Converter, SC Connector
Converts PROFIBUS DP signals to single-mode fibre over SC connectors, reaching up to 10 km between two units with 3000 VDC isolation on the bus side.
- PROFIBUS DP support with automatic transmission rate detection up to 12 Mbps
- Single-mode fibre link at 1310 nm, up to 10 km between two units
- Transparent data transmission on both the PROFIBUS and fibre sides
- Up to 32 stations per segment on the PROFIBUS side
- 3000 VDC isolation on the PROFIBUS side and 4 kV ESD protection on all terminals

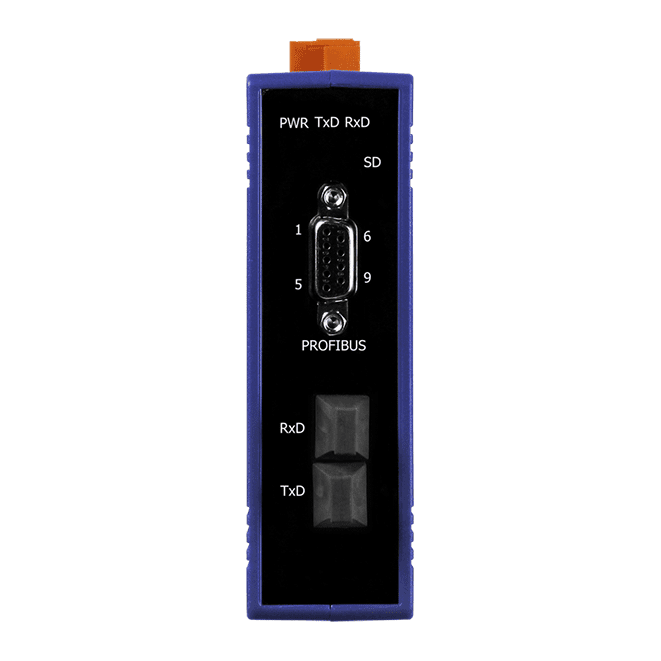

- PWR, TxD and RxD LED indicators
254,00 € pro Stück
| 1–9 Stück | 254,00 € | |
|---|---|---|
| 10–30 Stück | 246,00 € | −3 % |
| ab 31 Stück | 241,00 € | −5 % |
Produktinformationen "PROFI-2542-SC PROFIBUS to Single-mode Fiber Converter, SC Connector"
The PROFI-2542-SC extends a PROFIBUS DP segment over single-mode fibre, which suits runs where electrical noise, surges, lightning or corrosive atmospheres would make copper cabling unreliable. A pair of units links two PROFIBUS sections with a fibre span of up to 10 km, with data passing transparently in both directions.
On the PROFIBUS side the unit detects the transmission rate automatically, up to 12 Mbps, and supports up to 32 stations per segment. The bus side has 3000 VDC isolation, and the fibre side uses a 1310 nm wavelength with SC-type connectors. Status is shown by PWR, TxD and RxD LEDs, which helps with commissioning and fault finding.
Mounting and environment: the unit is designed for DIN-rail installation and is rated for an operating temperature of -25 ~ +75 °C, with a storage range of -30 ~ +85 °C and humidity of 5 ~ 95% RH, non-condensing.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Media converter |
|---|---|
| Interface: | PROFIBUS, single-mode fibre (SC) |
| Protocol: | PROFIBUS DP |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |

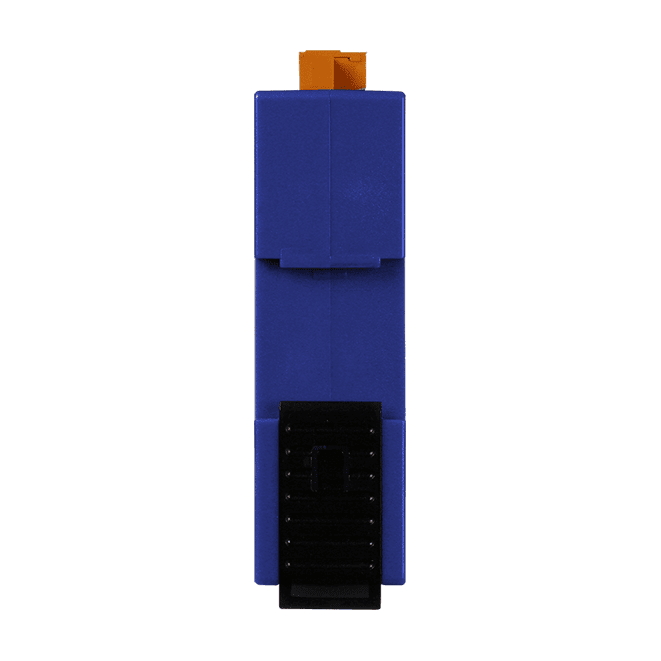

| Mounting: | DIN-rail |
Technische Daten
| LED Indicators | |
|---|---|
| Status | PWR LED, TxD LED, RxD LED |
| Fiber | |
| Fiber Cable | 9 / 125 μm recommended |
| Wavelength | 1310 nm |
| PROFIBUS | |
| Transceiver | ADI ADM2486 |

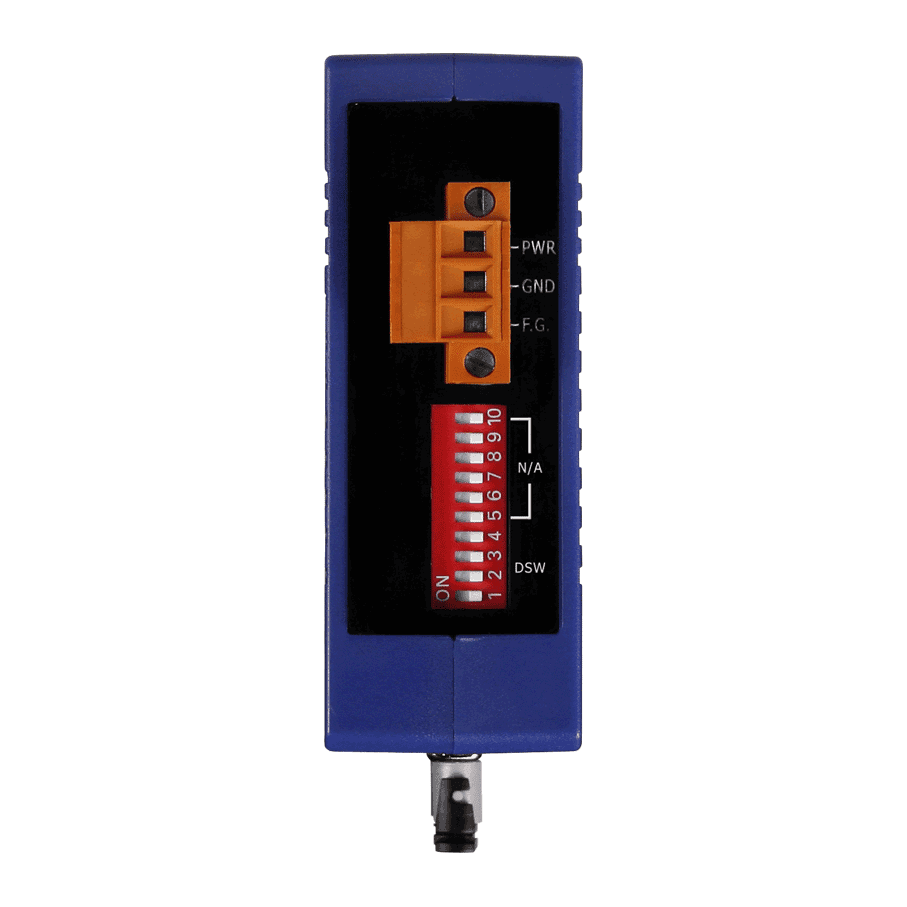

| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M set by DIP switch |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Power | |
| Consumption | 1 W |
| Mechanical | |
| Dimensions (mm) | 33.0 x 126.8 x 104.5 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
