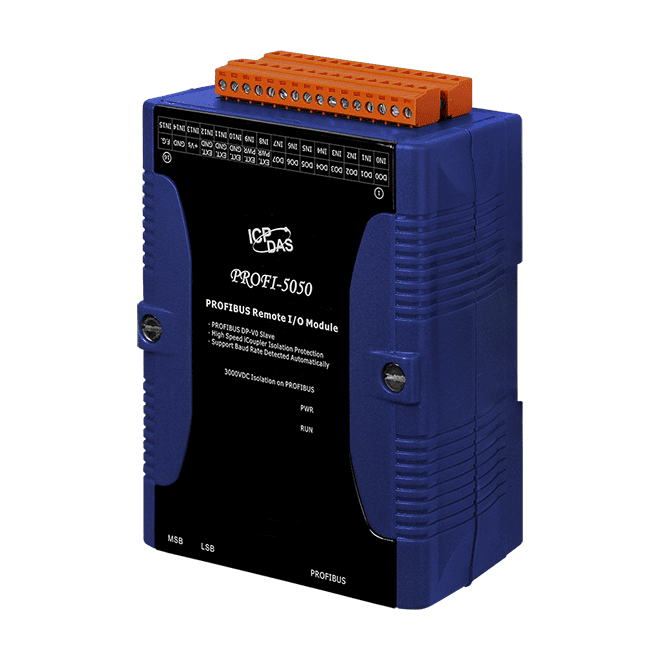

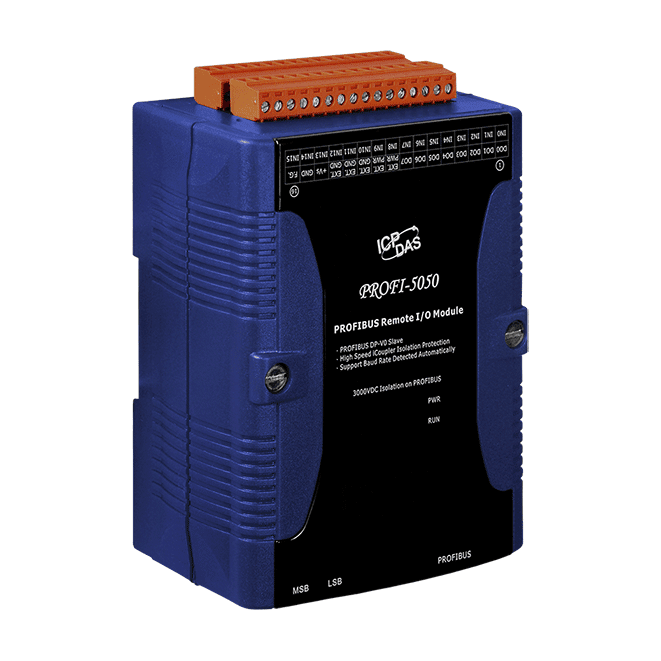

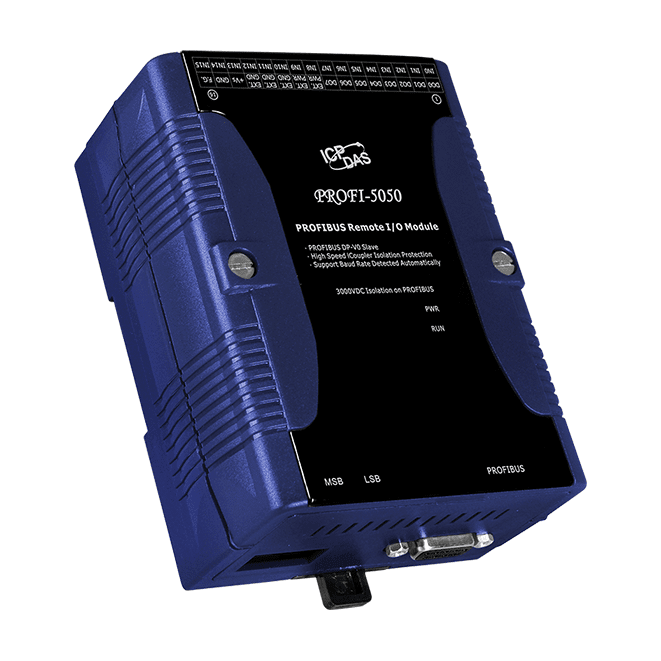

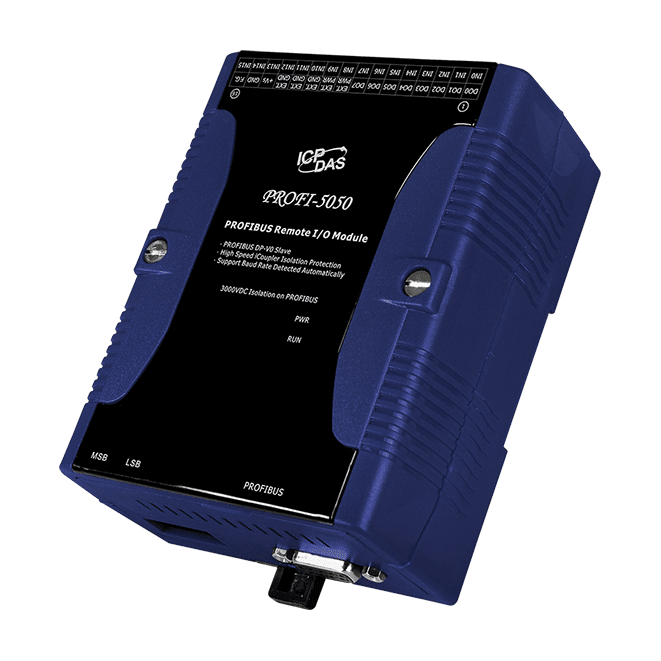

PROFI-5050 PROFIBUS DP Remote I/O Module, 16-ch DI / 8-ch DO
PROFIBUS DP-V0 slave remote I/O module with 16 non-isolated digital inputs and 8 non-isolated digital outputs, configured through its GSD file in any PROFIBUS configurator.
- PROFIBUS DP-V0 slave with 16 digital inputs (sink or source) and 8 digital outputs (sink)
- I/O configured by GSD file in any PROFIBUS configurator
- Rotary switch addressing from 0 to 99
- Transmission rate detected automatically, 9.6 k to 12 M baud
- 3000 VDC isolation on the PROFIBUS side and high-speed iCoupler network isolation
- 4 kV ESD protection on each terminal
237,00 € pro Stück
| 1–9 Stück | 237,00 € | |
|---|---|---|
| 10–30 Stück | 230,00 € | −3 % |
| ab 31 Stück | 225,00 € | −5 % |
Produktinformationen "PROFI-5050 PROFIBUS DP Remote I/O Module, 16-ch DI / 8-ch DO"
PROFI-5050 is a PROFIBUS DP-V0 slave remote I/O module that brings 16 digital inputs and 8 digital outputs onto a PROFIBUS network. The inputs accept sink or source wiring, and the outputs are sink type, so the module suits a wide range of field devices such as switches, sensors and small loads.
Addressing is set on rotary switches across the range 0 to 99, and the transmission rate is detected automatically across the PROFIBUS rates from 9.6 kbit/s up to 12 Mbit/s. The I/O configuration is handled through the GSD file, so the module can be added to any PROFIBUS configurator without custom tooling.
For electrically noisy plants, the PROFIBUS side is isolated to 3000 VDC and the network is protected by high-speed iCoupler isolation. Each terminal has 4 kV ESD protection. The module is DIN-rail mounted and rated for an operating range of -25 to +75 ℃.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O module |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | DP-V0 |
| Digital inputs: | 16 |
| Digital outputs: | 8 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| LED Indicators | |
|---|---|
| Status | PWR LED, RUN LED |
| Digital Input | |
| Channels | 16 Channels (Sink or Source), Non-Isolated with common ground(or source) Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V |
| Digital Output | |
| Channels | 8 Channels (Sink), Non-Isolated with common ground Load Voltage: +10 ~ +30V Maximum Load Current: 30mA w/o Short-Circuit Protection |
| PROFIBUS | |
| Controller | Profichip VPCLS2 |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 1 W |
| Mechanical | |
| Dimensions (mm) | 91 x 128 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
