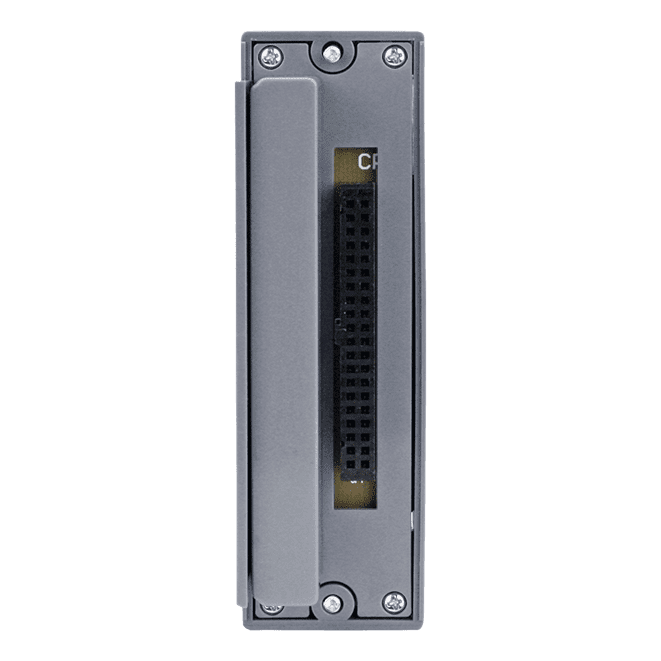

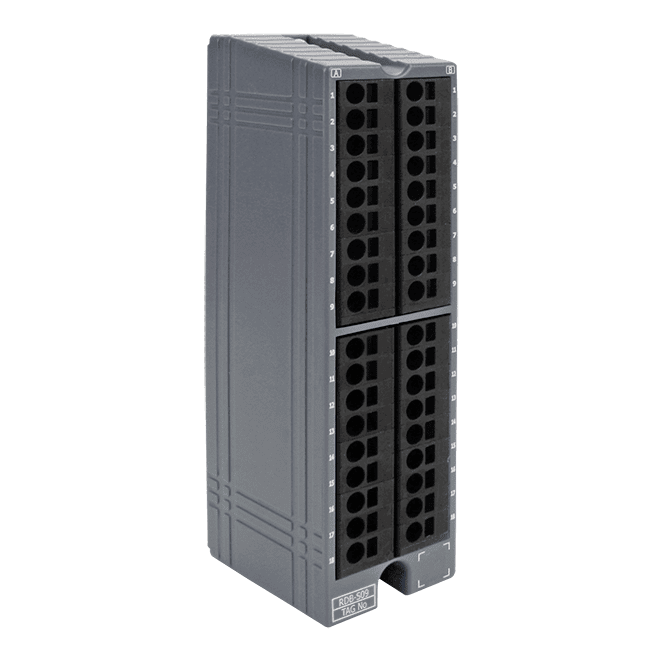

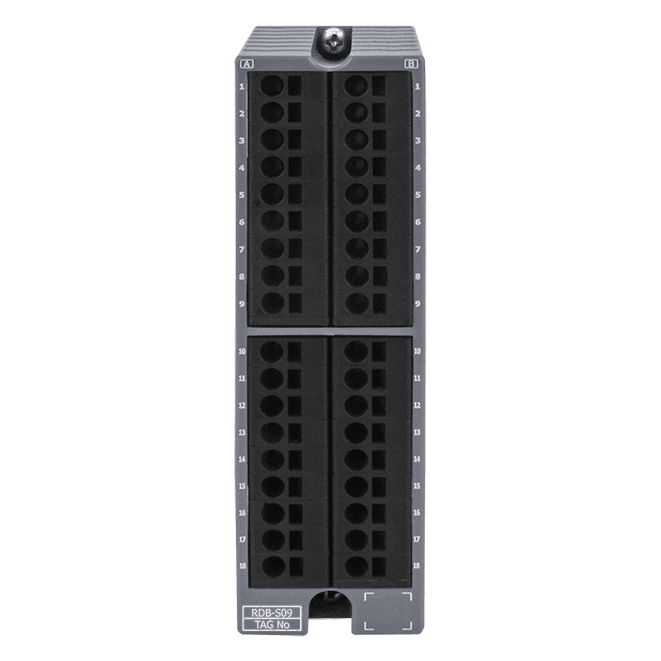

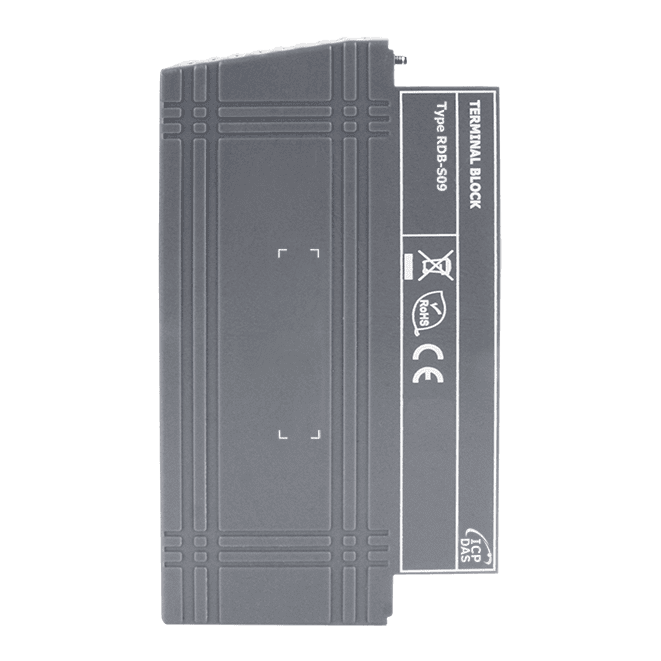

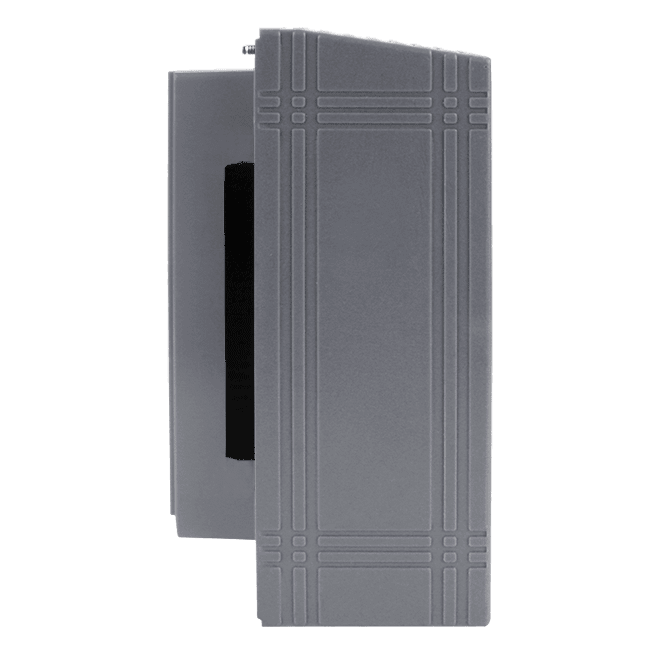

RDB-S09 Single I/O Termination Board, Spring Clamp, Disconnection Detection
Spring clamp termination board for single isolated analog current/voltage and pulse modules, with disconnection detection. RoHS ordering version for R-9017C1H, R-9028V1, R-9028CH and R-9084.
- Spring clamp terminals for faster, simpler signal wiring
- Termination board disconnection detection with alarm on separation from the I/O module
- Supports R-9017C1H, R-9028V1, R-9028CH and R-9084 I/O modules
- 32 analog input channels
- Compact 32 x 115 x 60 mm housing
- Operating temperature -25 °C to 70 °C, 5 to 95% RH non-condensing
153,00 € pro Stück
| 1–9 Stück | 153,00 € | |
|---|---|---|
| 10–30 Stück | 149,00 € | −3 % |
| ab 31 Stück | 146,00 € | −5 % |
Produktinformationen "RDB-S09 Single I/O Termination Board, Spring Clamp, Disconnection Detection"
The RDB-S09 CR is a single I/O termination board for wiring isolated analog current/voltage and pulse modules. Its spring clamp terminals speed up field wiring and reduce installation time, which helps when commissioning larger systems.
The board is compatible with the R-9017C1H, R-9028V1, R-9028CH and R-9084 I/O modules. It monitors its connection to the I/O module and raises an alarm if the termination board becomes disconnected, so faults are flagged quickly rather than going unnoticed.
This RoHS version suits engineers specifying reliable signal wiring for industrial environments where stable operation and early fault detection are required. Mechanical size is 32 x 115 x 60 mm, with an operating range of -25 °C to 70 °C.
Applications
- Wiring of isolated analog current/voltage signals
- Wiring of pulse signals
- Industrial automation systems requiring high wiring reliability
| Product type: | Termination board |
|---|---|
| Analog inputs: | 32 |
| Operating temperature: | -25 ~ +70 °C |
Technische Daten
| Analog Input | |
|---|---|
| Channels | 32 |
| Mechanical | |
| Dimensions (mm) | 32 x 115 x 60 |
| Environment | |
| Operating Temperature | -25 °C ~ 70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
