TPD-283-H 2.8-inch Touch HMI Device with PoE Ethernet
Compact 2.8-inch colour touch HMI for wall mounting, powered over Ethernet (IEEE 802.3af), with Modbus TCP support and a free HMIWorks development tool.
- 2.8-inch high-resolution colour TFT touch screen, 240 x 320 pixels, 65535 colours
- Power over Ethernet (IEEE 802.3af, Class 1, 48 V) with 1.5 W consumption
- Modbus TCP protocol support over a single RJ-45 10/100 Base-TX port
- Free HMIWorks development tool with GUI design
- Ladder Designer for PLC users and C language environment for programmers
- Supports custom communication protocols written in C
157,00 € pro Stück
| 1–9 Stück | 157,00 € | |
|---|---|---|
| 10–30 Stück | 152,00 € | −3 % |
| ab 31 Stück | 149,00 € | −5 % |
Produktinformationen "TPD-283-H 2.8-inch Touch HMI Device with PoE Ethernet"

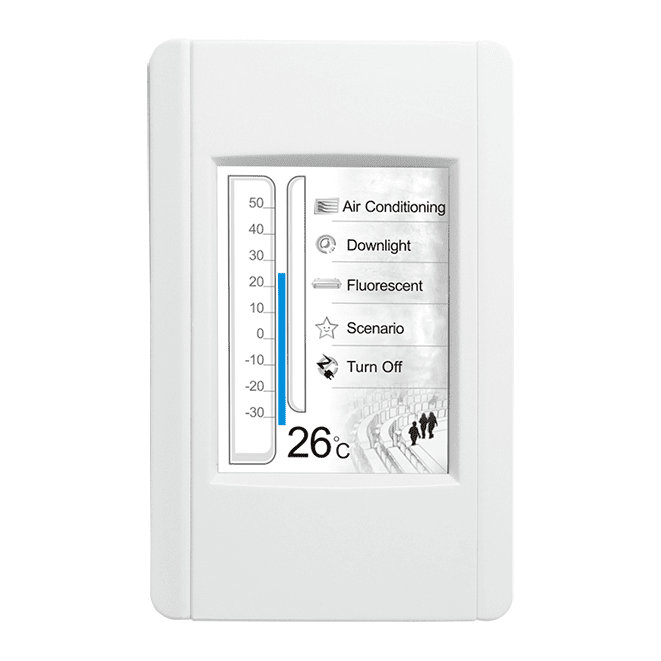

TPD-283-H CR is a compact touch HMI with a 2.8-inch high-resolution colour TFT screen, designed for building and home automation. Power is supplied over the Ethernet cable through PoE, so the unit needs only one cable for both data and power, and it mounts on a standard wall outlet.
Engineers can build the user interface with the free HMIWorks tool. PLC-oriented users can work in Ladder Designer, while those with programming experience can use the C language environment. The source notes that creating a basic application in Ladder Designer takes no more than 30 minutes to learn.
With a Modbus TCP protocol option, a buzzer, a rotary switch and a touch panel, the TPD-283-H CR suits projects that replace mechanical switches with intelligent control pads. Support for custom communication protocols written in C allows integration beyond the standard protocol.
Applications
- Building automation
- Home automation
- Replacing mechanical switches with intelligent control pads
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP |
| Ports: | 1 |
| PoE: | Yes |
| Power input: | PoE (48 V) |
| Operating temperature: | -20 ~ +70°C |
| Mounting: | Wall mounting |
Technische Daten
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Display | |
| Type | LCD 2.8 TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Yes |
| HMI | |
| Buzzer | Yes |

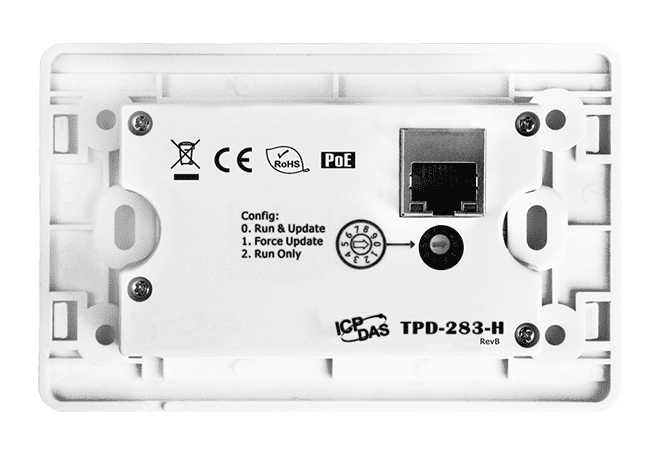

| Rotary Switch | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| Power | |
| Consumption | 1.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Mechanical | |
| Dimensions (mm) | 119 mm x 76 mm x 32 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
