U-7526M OPC UA I/O Module with PoE and 2-port Ethernet Switch
OPC UA I/O module with 2 DI, 2 DO, 6 AI and 2 AO channels, supporting OPC UA, MQTT and RESTful API, powered over PoE, with a dual-port Ethernet switch for daisy-chain wiring.
- OPC UA Server / Client, MQTT Client and RESTful API (HTTP and HTTPS), executable simultaneously
- 2 x DI, 2 x DO, 6 x differential AI (voltage or current, jumper selectable) and 2 x AO (voltage or current)
- Dual-port 10/100 Base-TX Ethernet switch for daisy-chain topology, with LAN bypass
- IEEE 802.3af (Class 3) compliant Power over Ethernet (PoE)
- Analog input scaling, IF/THEN/ELSE rule settings and scheduled rule execution
- 2-way isolation, I/O: 2500 VDC
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "U-7526M OPC UA I/O Module with PoE and 2-port Ethernet Switch"

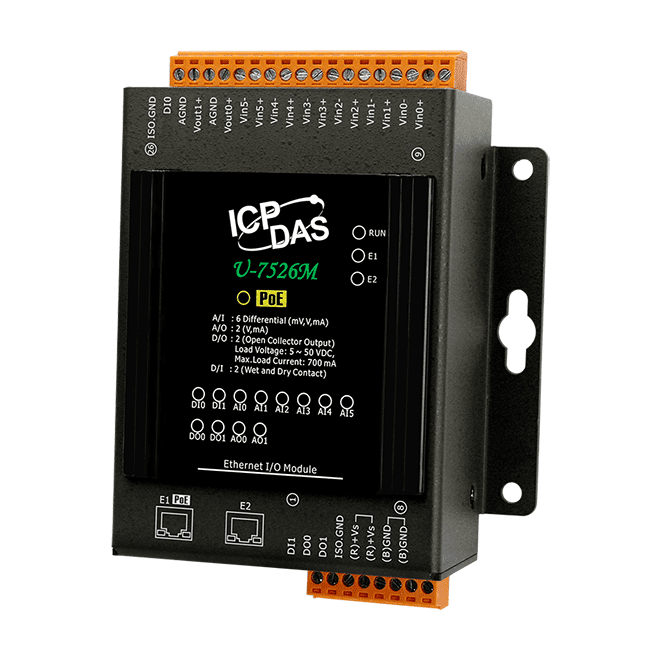

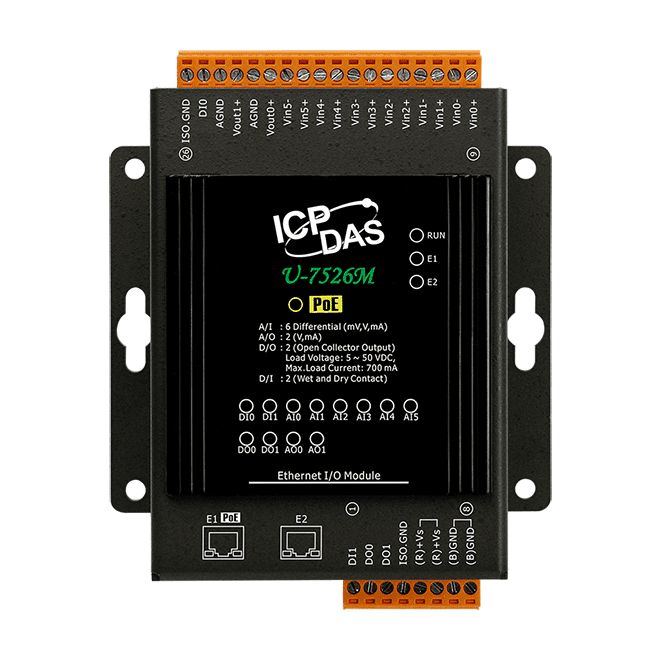

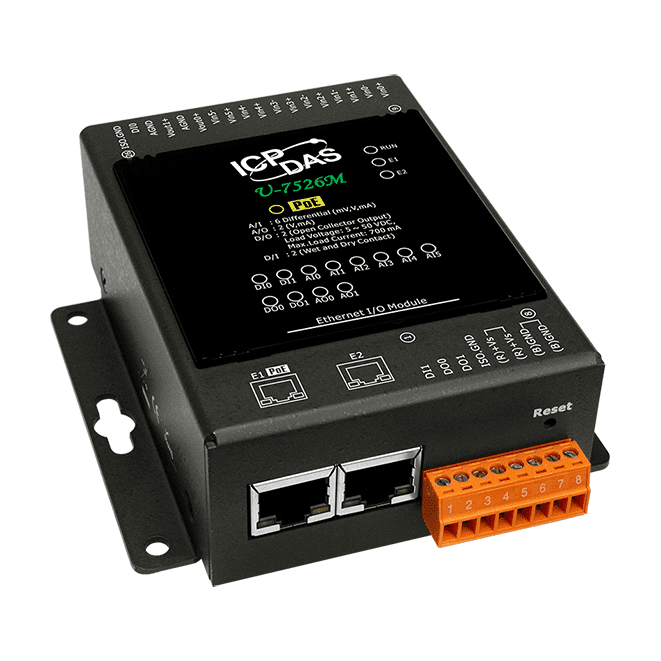

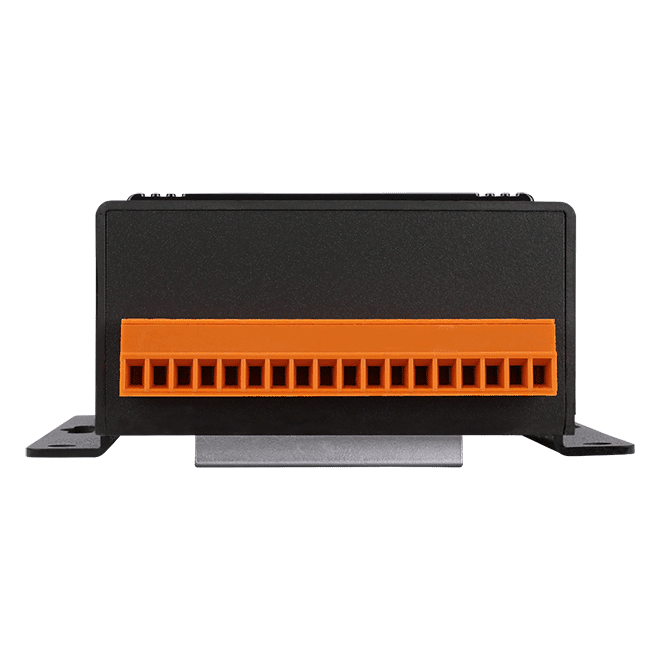

The U-7526M is an OPC UA I/O module that combines 2 digital inputs, 2 digital outputs, 6 differential analog inputs and 2 analog outputs in a single DIN-rail unit. It communicates through OPC UA Server or Client, MQTT Client and RESTful API, and can run all three at the same time, so engineers can choose the networking mode that suits each installation.
A built-in two-port 10/100 Base-TX switch allows modules to be daisy-chained, reducing cabling and the number of switches required. The unit also accepts IEEE 802.3af (Class 3) Power over Ethernet, or can be powered from a +12 ~ +48 VDC terminal block. Analog inputs support scaling, so raw signals can be presented as more readable values, and rule logic (IF, THEN, ELSE) and scheduled actions can be set for I/O and virtual points.
Configuration, control and monitoring are handled through the built-in web user interface, with no additional application required. I/O values can be sent to cloud or field control systems, and I/O trigger messages can be logged to a CSV file or line for device tracking. This is the ordering code U-7526M CR.
Applications
- Transmitting built-in I/O values to cloud systems for display, analysis or control strategy
- Supplying I/O values to field control systems over OPC UA, MQTT or RESTful API
- Local logic and scheduled control of digital and analog I/O
- Device tracking through I/O trigger messages logged to CSV file or line
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Analog inputs: | 6 |
| Analog outputs: | 2 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 6 (Differential) |
| Type | Voltage, Current |
| Range | ±500 mV, ±1V, ±5 V, ±10 V 0 to 20 mA, ±20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 samples/second (Total) Fast Mode: 50 samples/second (Total) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Mode Rejection | 86 dB (min.) |
| Normal Mode Rejection | 100 dB |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 ~ 20 mA only |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Analog Output | |
| Channels | 2 |
| Type | Voltage, Current |
| Range | +0 to +5 VDC, ±5 VDC, +0 to +10 VDC, ±10 VDC, 0 to 20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input/Counter | |
| Channels | 2 |
| Type | Dry Contact Wet Contact |
| ON Voltage Level | Dry: Close to GND Wet: +1 VDC (max.) |
| OFF Voltage Level | Dry: Open Wet: +3.5 to +30 VDC |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Overvoltage Protection | +30 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA/Channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

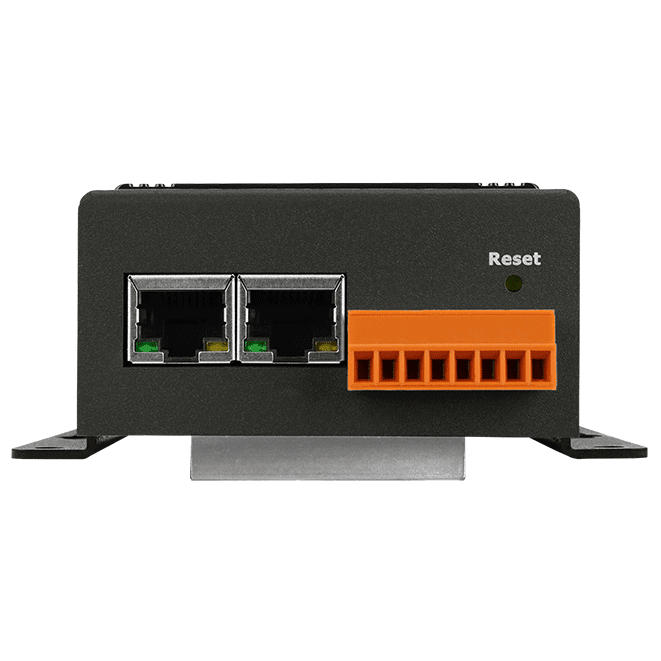

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 7.1 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

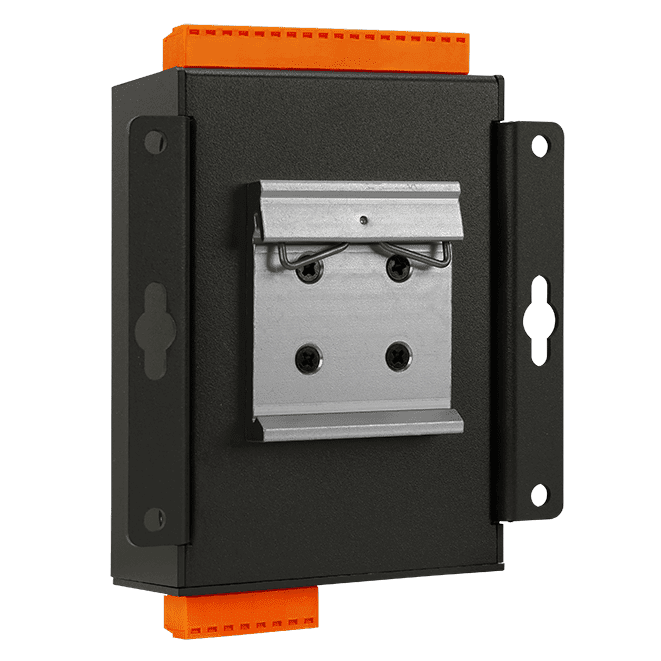

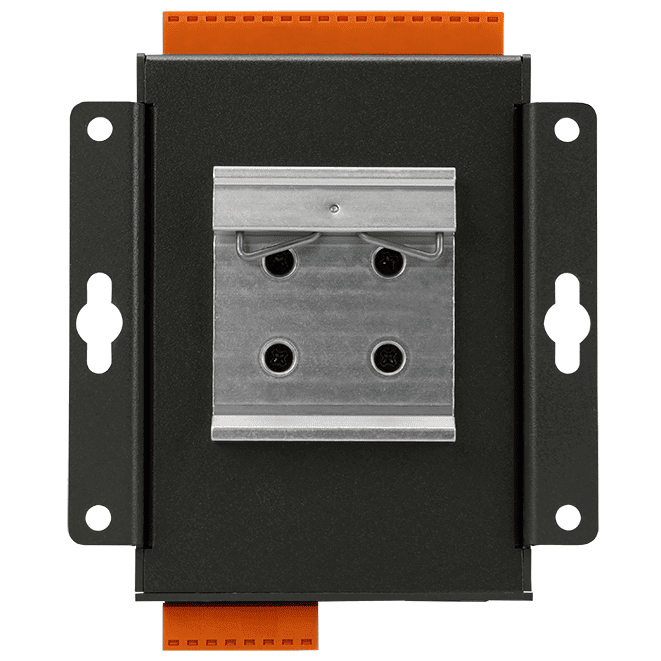

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
