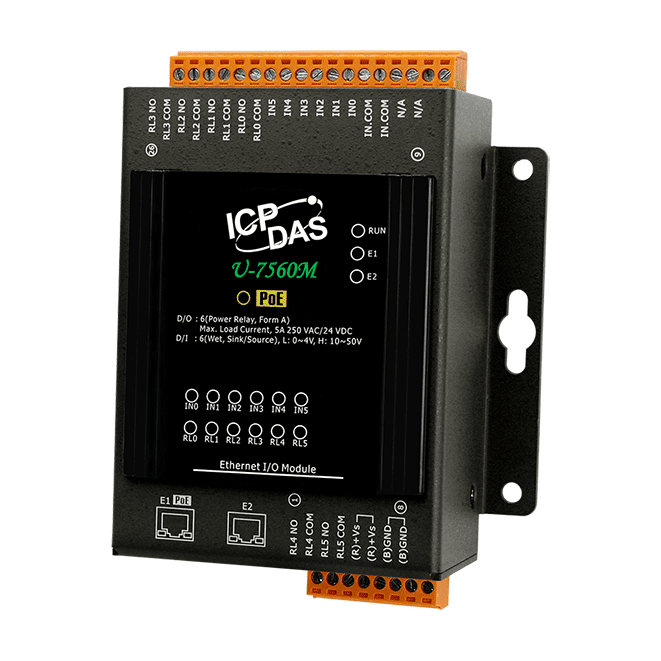

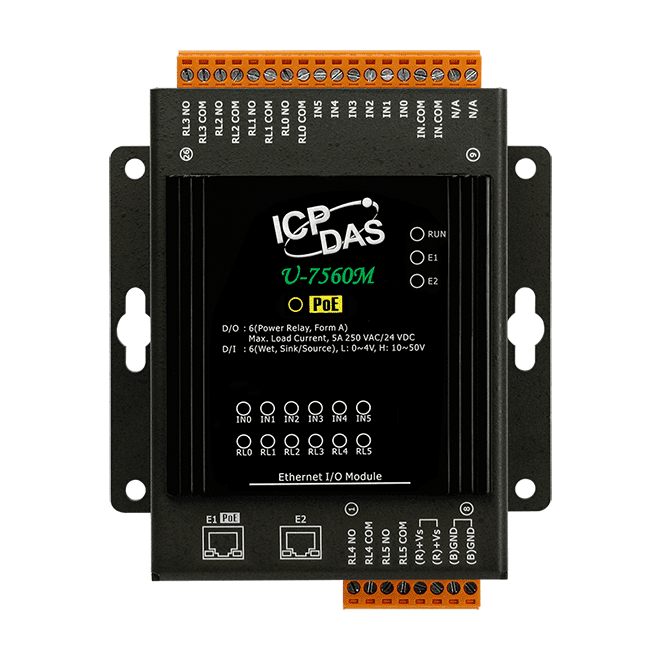

U-7560M OPC UA I/O Module, 6-ch DI, 6-ch Relay and 2-port Ethernet Switch
OPC UA I/O module with 6 digital inputs, 6 relay outputs and a 2-port Ethernet switch for daisy-chaining. Supports OPC UA, MQTT and RESTful API, powered by PoE or +12 ~ +48 VDC.
- OPC UA Server / Client, MQTT Client and RESTful API, all executable simultaneously
- IF, THEN, ELSE rule setting for I/O and virtual points, with schedule-based execution
- 6 x digital inputs (wet contact, sink/source) and 6 x Form A power relays rated 5 A @ 250 VAC/24 VDC (resistive)

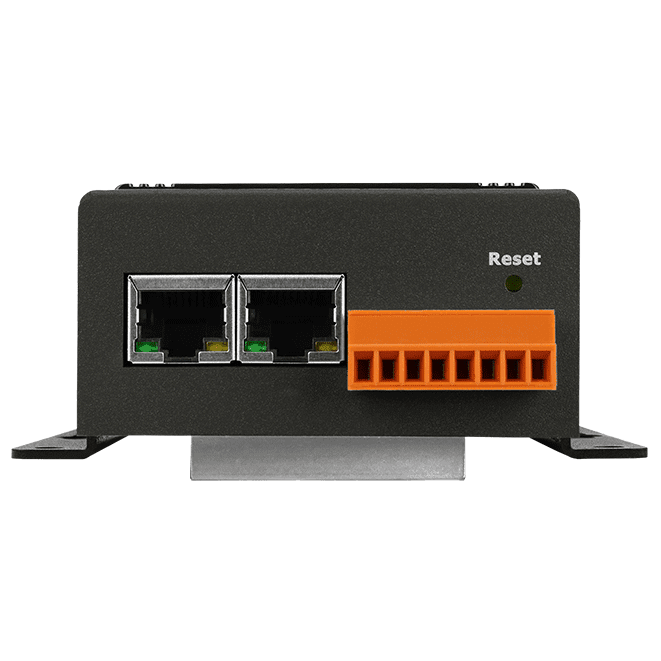

- Dual-port 10/100 Base-TX Ethernet switch for daisy-chain topology, with LAN bypass
- IEEE 802.3af (Class 3) PoE, or +12 ~ +48 VDC terminal block power
- Built-in web user interface, I/O trigger messages to CSV file or Line, and IoTstar cloud management support
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "U-7560M OPC UA I/O Module, 6-ch DI, 6-ch Relay and 2-port Ethernet Switch"
The U-7560M is an OPC UA I/O module for engineers who need digital inputs and relay outputs on an Ethernet network without a separate gateway. It provides six wet-contact digital inputs and six Form A power relays, and can publish I/O values to a cloud platform or field control system for display, analysis or control strategy.
Communication options include an OPC UA Server or Client, an MQTT Client and a RESTful API over HTTP or HTTPS. These can run at the same time, so a single module can serve several systems. Logic rules using IF, THEN and ELSE conditions can act on physical I/O and virtual points, and scheduled execution runs rules at set times.

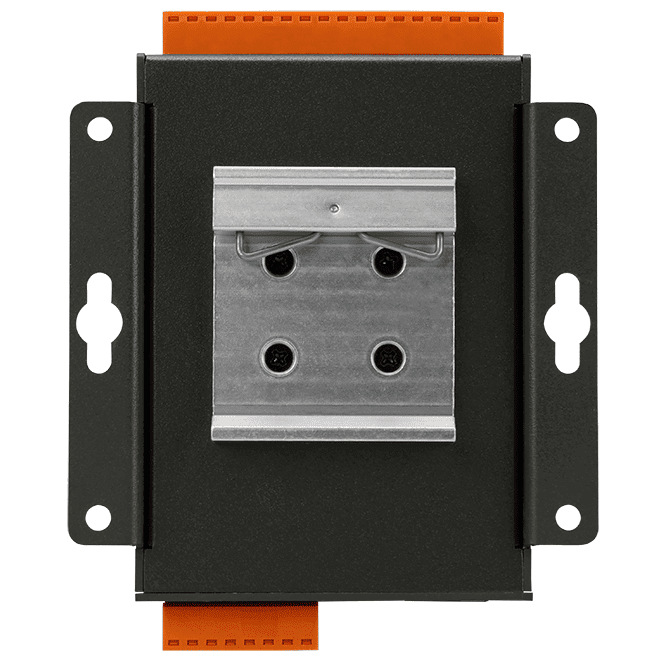

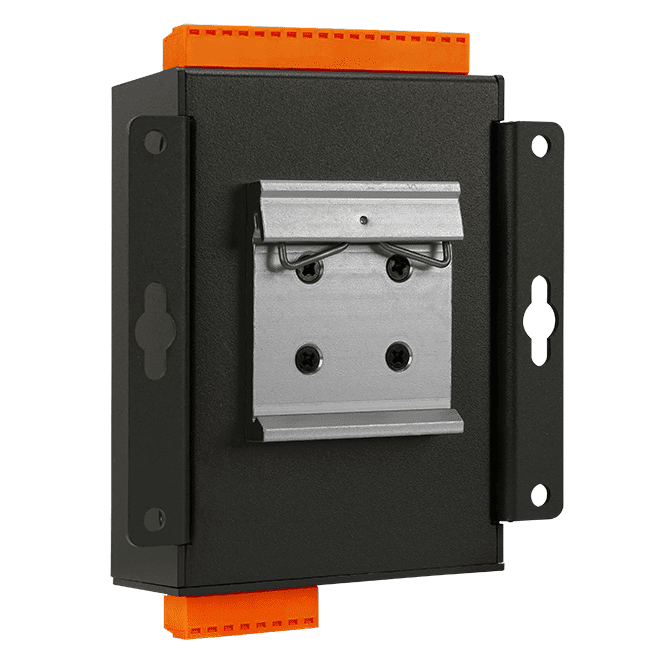

A built-in dual-port switch allows daisy-chain wiring, reducing cable and switch requirements. The module accepts IEEE 802.3af (Class 3) Power over Ethernet or a +12 ~ +48 VDC terminal block supply, and is configured through a built-in web interface with no additional app required. It mounts on a DIN rail.
Applications
- Transmitting digital input status to cloud or field control systems for display, analysis or control strategy
- Remote switching of loads through relay outputs over an Ethernet network
- Device tracking through I/O trigger messages logged to CSV file or Line
- Daisy-chained I/O distribution in systems where cabling and switch count need to be reduced
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 6 |
| Relay outputs: | 6 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 3000 VDC |
| Power input: | +12 ~ +48 VDC, IEEE 802.3af |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input/Counter | |
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Relay Output | |
| Channels | 6 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time | 10 ms (max.) |
| Release Time | 5 ms (max.) |
| Electrical Endurance | 10^5 ops. |
| Mechanical Endurance | 2 × 10^7 ops |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6.8 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
