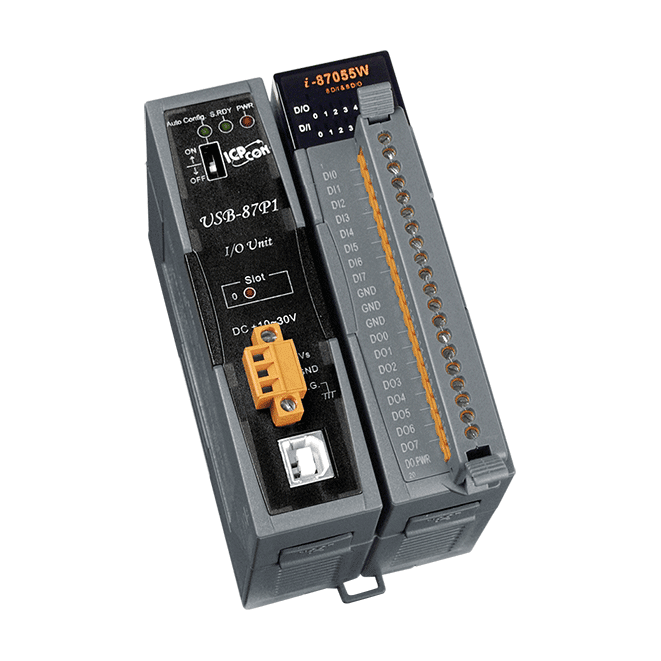

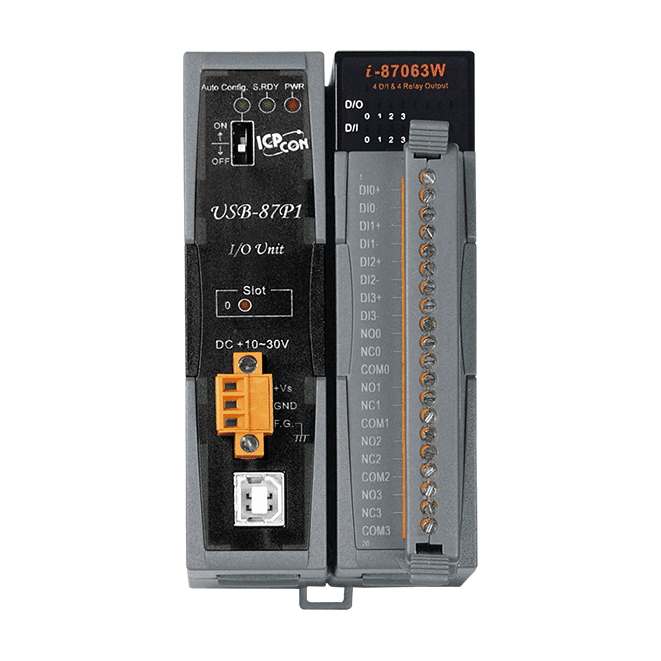

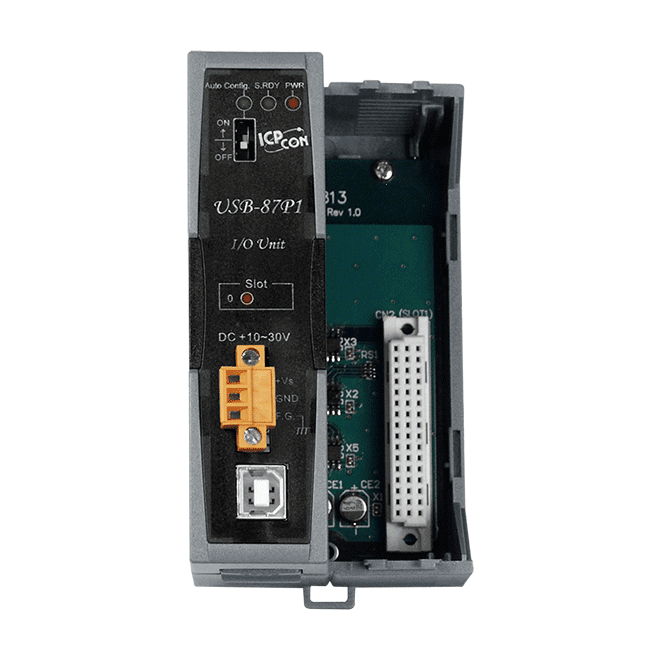

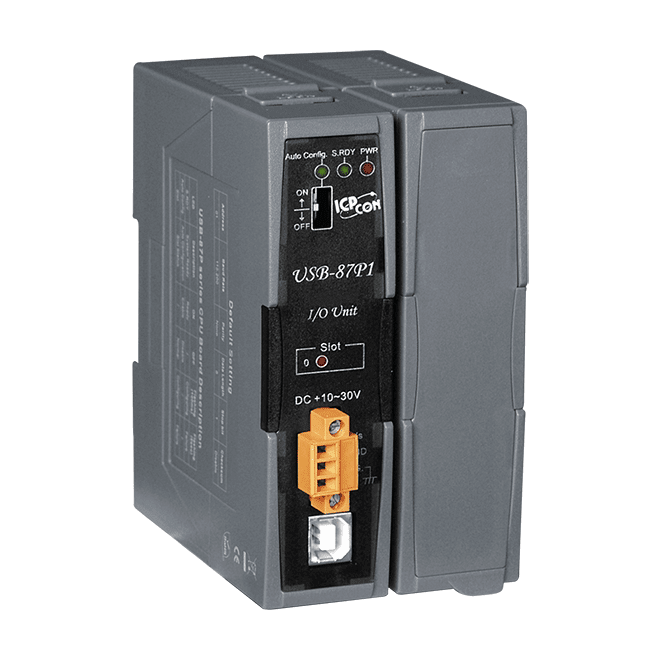

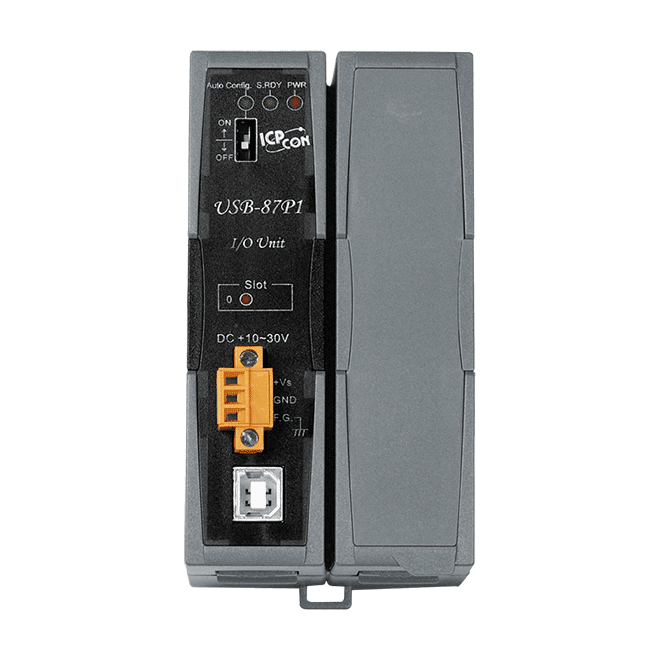

USB-87P1-G 1-Slot USB I/O Expansion Unit with DCON Intelligent CPU
1-slot USB I/O expansion unit for I-87K series modules, using the ASCII-based DCON protocol. Grey cover variant with 10 ~ 30 VDC input and -25 ~ +75 °C operation.
- One USB port connects the expansion unit to the host, with a Type B connector rated 3000 VDC
- One slot for I-87K series I/O modules, with hot swap allowed
- Auto configuration controlled by a 1-bit DIP switch
- LED indicators for power, system, auto configuration and slot status
- DCON protocol (ASCII-based) for communication
- Wide 10 ~ 30 VDC power input with isolated power input, 1.0 W consumption
235,00 € pro Stück
| 1–9 Stück | 235,00 € | |
|---|---|---|
| 10–30 Stück | 228,00 € | −3 % |
| ab 31 Stück | 223,00 € | −5 % |
Produktinformationen "USB-87P1-G 1-Slot USB I/O Expansion Unit with DCON Intelligent CPU"
USB-87P1-G CR extends a host system's I/O over a single USB connection. It takes one I-87K series module and includes an intelligent CPU module that communicates using the ASCII-based DCON protocol. Over 30 I-87K series I/O types, covering analogue and digital input and output, counter and frequency functions, are supported with the unit.
The unit is built for harsh and electrically noisy sites. It accepts a wide 10 ~ 30 VDC power input, has an isolated power input and runs across a -25 ~ +75 °C operating range. Installation and maintenance are simplified by hot swap support, automatic configuration and LED indicators for fault detection.
Software support includes DLL, LabVIEW driver, InduSoft driver, Linux driver and OPC server options, so the I-87K modules fitted to the unit can be integrated into a range of software systems. The grey cover (G) variant is the one supplied under this ordering code.
Applications
- Expanding I/O to a host system over USB in harsh or noisy environments
- Distributed data acquisition and control using I-87K series modules
| Product type: | USB I/O expansion unit |
|---|---|
| Interface: | USB |
| Protocol: | DCON |
| Ports: | 1 |
| Isolation: | Isolated power input |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| Main Unit | |
|---|---|
| 64-bit Hardware Serial Number | Yes |
| LED Indicators | |
| Status | 1 x Power, 1 x System, 1 x Auto Configuration, 1 x Slot |
| I/O Expansion | |
| I/O Type | I-87K series |
| Slots | 1 |
| HMI | |
| DIP Switch | 1-bit for auto configuration |
| USB | |
| Connector | 1 x USB (Type B, 3000 VDC) |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 1.0 W |
| Mechanical | |
| Dimensions (mm) | 64 x 120 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
