VP-6201-CE7 15-inch WinCE ViewPAC, Cortex-A8 HMI/PAC with Touch Panel
The VP-6201-CE7 combines computing, I/O expansion and a 15-inch touch HMI in one panel-mount unit running Windows CE 7.0 on a 1 GHz Cortex-A8 CPU.
- 1.0 GHz Cortex-A8 CPU running Windows CE 7.0

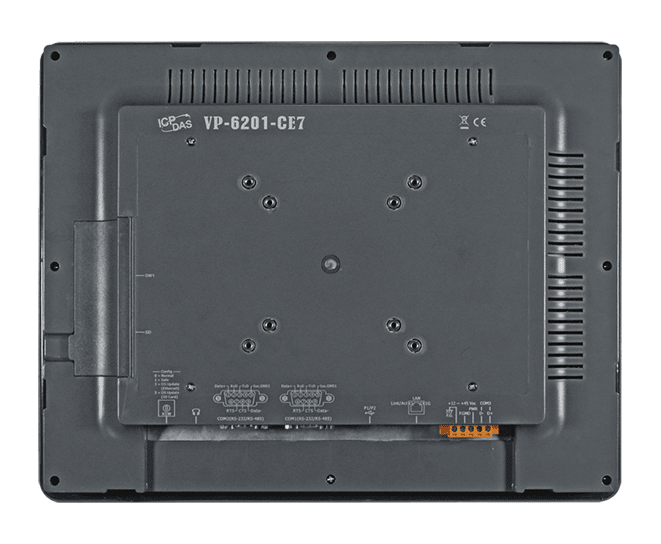

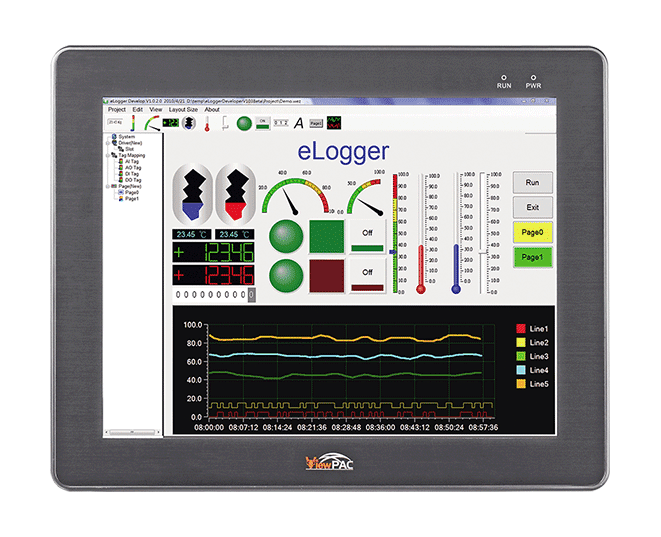

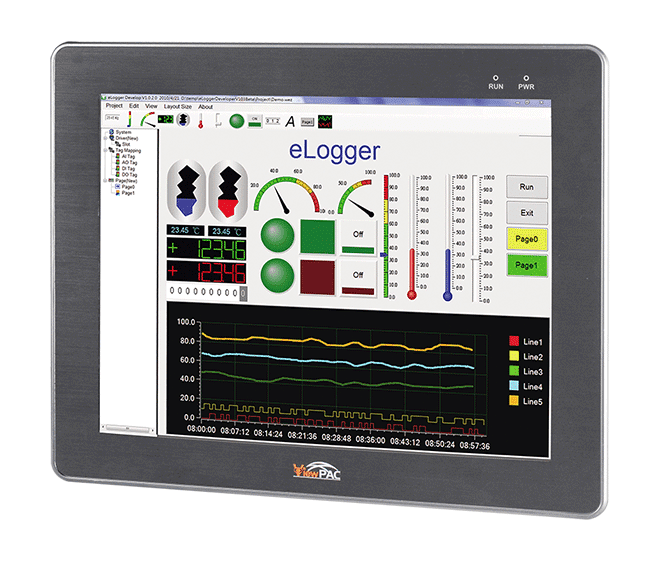

- 15-inch 1024 x 768 TFT LCD with 5-wire resistive touch panel
- 512 MB DDR3 SDRAM, 256 MB flash, 128 KB MRAM and 16 KB EEPROM
- One 10/100/1000 Ethernet port, three RS-232/RS-485 serial ports and two USB 2.0 host ports
- Built-in real-time clock and dual watchdog timer
- NEMA 4/IP65 rated front panel for panel mounting
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "VP-6201-CE7 15-inch WinCE ViewPAC, Cortex-A8 HMI/PAC with Touch Panel"
The VP-6201-CE7 CR is a 15-inch ViewPAC that brings the operator interface, controller and communications into a single fanless panel-mount unit. It suits projects where an engineer wants HMI, data acquisition and control in one device rather than a separate panel PC and PAC.

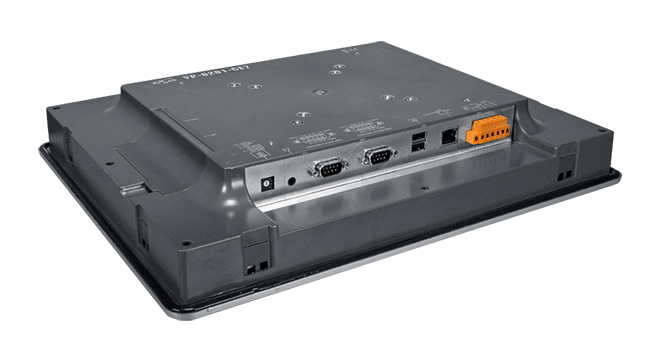

The unit is built around a 1.0 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM, 256 MB flash and 128 KB MRAM for data retention. A 1024 x 768 TFT display carries a resistive 5-wire touch panel. Connectivity includes one 10/100/1000 Ethernet port, three RS-232/RS-485 serial ports with 2500 VDC isolation, two USB 2.0 host ports and an optional SD card of up to 32 GB. Power can be supplied from +12 to 48 VDC or from PoE.
Windows CE 7.0 provides the runtime, with .NET Compact Framework 3.5, an FTP server, a web server and SQL Compact Edition 3.5 included. The front panel is rated NEMA 4/IP65 and the operating range is -10 to +60 °C. The CR variant is listed as the standard 15-inch model with RoHS compliance.
Applications
- Combined HMI, data acquisition and control in a single panel-mounted PAC
- Machine and panel-mounted operator stations
- Industrial environments exposed to water spray, humidity and dust
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB 2.0 |
| Ports: | 1 Ethernet, 3 serial, 2 USB |
| PoE: | Yes |
| Isolation: | 2500 VDC (serial) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel, VESA |
| Housing: | Plastic, IP65 front panel |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage | SD Card (supports up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | TFT LCD |
| Size | 15" (4:3) |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Color | 16 bit RGB, 64 K full Colors |
| Contrast Ratio | 500:1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 (2500 VDC Isolated), 2 x RS-232/RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC (1 kV Isolated ) |
| Consumption | 16.0 W |
| Powered from PoE | Yes |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 381 x 305 x 63 (W x L x H) |
| Panel Cut-out (mm) | 362 x 286, ±1 (W x H) |
| Installation | Panel mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 2865 g |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
