VPD-173X-64 7-inch Touch HMI, 800 x 480 TFT, 2 x RS-232/RS-485, PoE
7-inch 800 x 480 colour touch HMI with two isolated serial ports, Ethernet with PoE, RTC and 64 MB Flash, for wall-mounted building and industrial automation panels.
- 7-inch 800 x 480 TFT colour touch screen with 65535 colours and 400 cd/m2 brightness
- Two RS-232 or RS-485 serial ports, 2500 VDC isolated
- Ethernet RJ-45 port with PoE (IEEE 802.3af, Class 1, 48 V)
- 64 MB SDRAM and 64 MB Flash memory
- Real-time clock and buzzer
- XV-board expansion for additional I/O
494,00 € pro Stück
| 1–9 Stück | 494,00 € | |
|---|---|---|
| 10–30 Stück | 479,00 € | −3 % |
| ab 31 Stück | 469,00 € | −5 % |
Produktinformationen "VPD-173X-64 7-inch Touch HMI, 800 x 480 TFT, 2 x RS-232/RS-485, PoE"

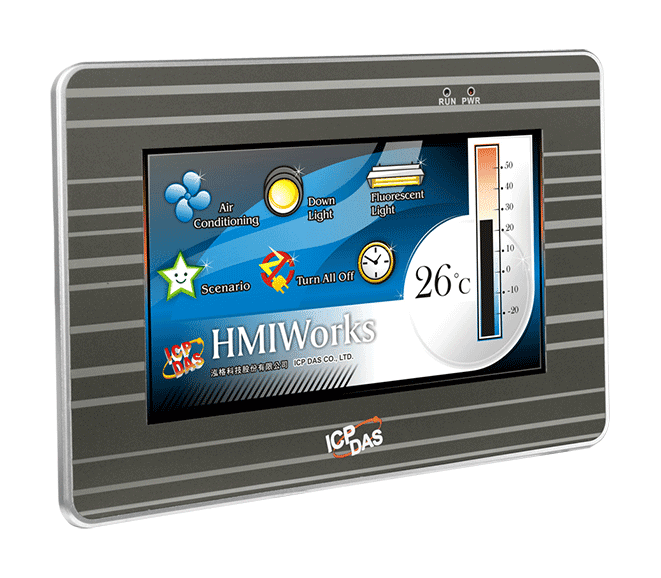

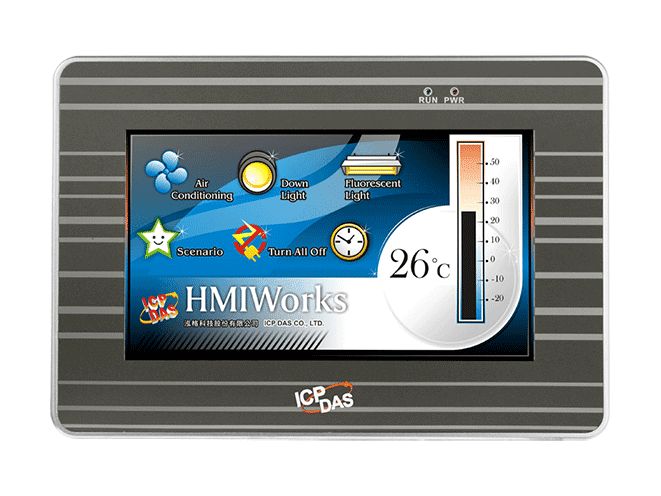

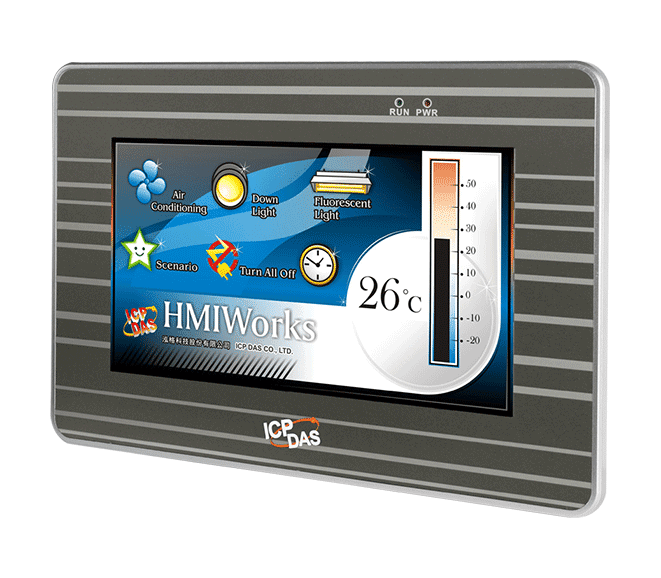

The VPD-173X-64 is a 7-inch touch HMI from the VPD Series, designed for operator control in building, home and industrial automation. Its high-resolution colour TFT touch screen replaces mechanical switches with a configurable graphical interface, and the unit mounts on a standard wall outlet box.

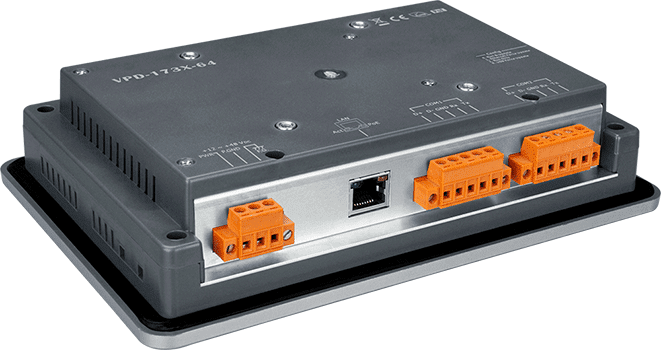

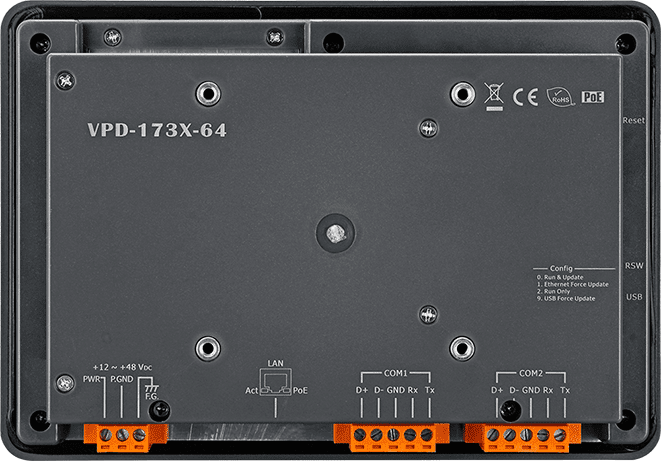

Connectivity centres on two serial ports, each selectable as RS-232 or RS-485 and isolated to 2500 VDC, plus a 10/100 Base-TX Ethernet port that can be powered over PoE (IEEE 802.3af, Class 1). The -64 suffix denotes the expanded memory of this variant, with 64 MB SDRAM and 64 MB Flash. A real-time clock, a buzzer and XV-board expansion complete the hardware.
Programming is handled with the free HMIWorks tool, which offers a Ladder Designer for PLC users and a C language environment for software developers. The front panel is rated NEMA 4 / IP65. The unit is listed with CE, UKCA, FCC, RoHS and WEEE certifications.
Applications
- Building automation
- Home automation
- Industrial automation
- Operator control panels replacing mechanical switches
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB |
| Ports: | 2 serial, 1 Ethernet |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 2500 VDC (serial ports) |
| Power input: | +12 ~ 48 VDC or PoE |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Wall |
| Housing: | IP65 front panel |
Technische Daten
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 64 MB SDRAM/64 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 2 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: NEMA 4 /IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
