VPD-173X 7-inch Touch HMI Device, 2 x RS-232/RS-485, Ethernet PoE
7-inch 800 x 480 colour touch HMI with two isolated RS-232/RS-485 serial ports, 10/100 Ethernet with PoE, real-time clock and XV-board expansion for wall-mounted control.
- 7-inch 800 x 480 TFT colour touch screen, 65535 colours, 250 cd/m2 brightness
- Two RS-232 or RS-485 serial ports (3-pin), 2500 VDC isolated
- Ethernet 10/100 Base-TX with PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC supply
- 16 MB SDRAM and 16 MB Flash memory with real-time clock
- XV-board I/O expansion support
- IP65 / NEMA 4 waterproof front panel, wall-mount installation
443,00 € pro Stück
| 1–9 Stück | 443,00 € | |
|---|---|---|
| 10–30 Stück | 430,00 € | −3 % |
| ab 31 Stück | 421,00 € | −5 % |
Produktinformationen "VPD-173X 7-inch Touch HMI Device, 2 x RS-232/RS-485, Ethernet PoE"

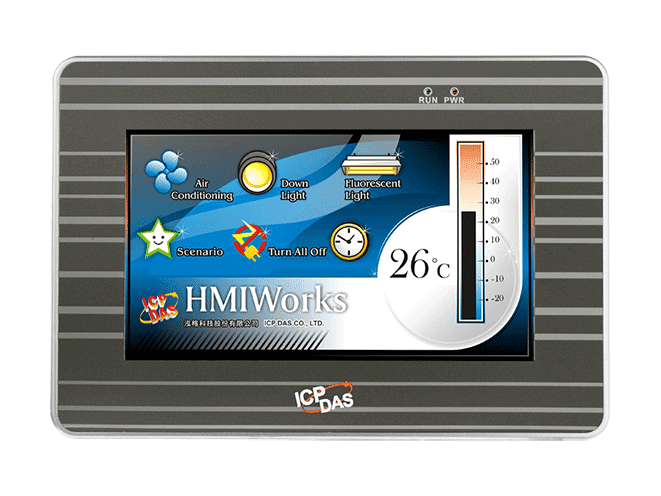

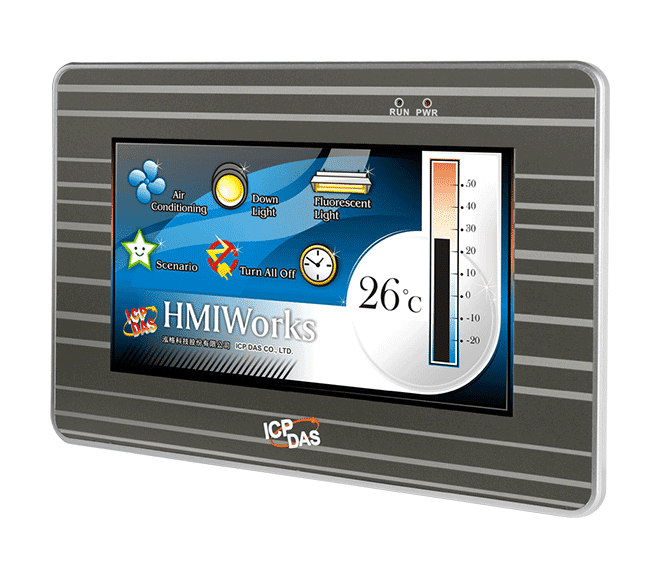

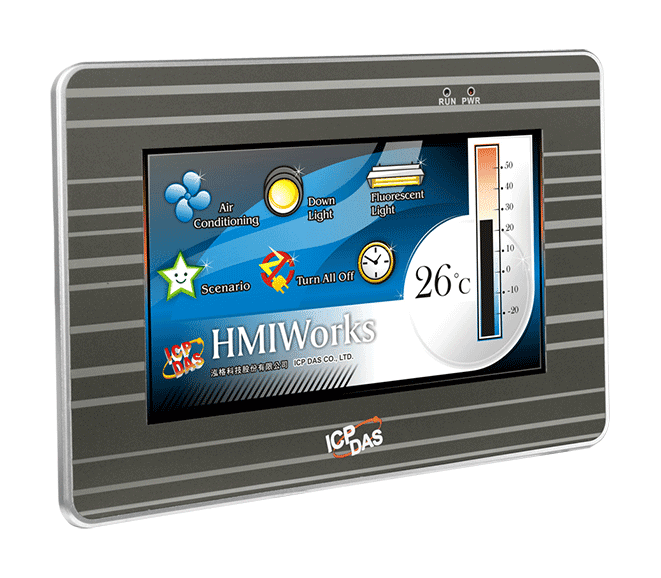

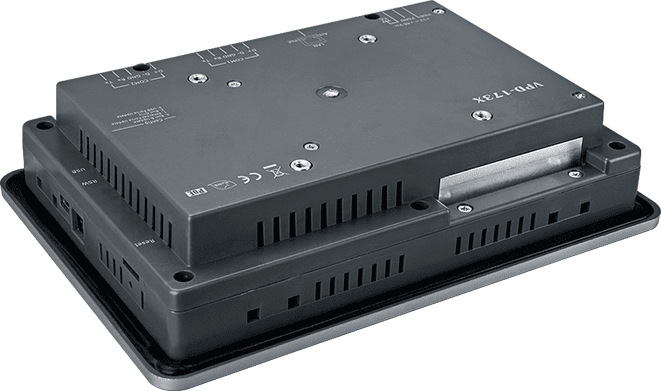

The VPD-173X CR is a 7-inch touch HMI from the VPD series, built for wall-mounted control panels in building, home and industrial automation. Its 800 x 480 TFT colour touch screen (65535 colours) and 250 cd/m2 brightness make it suitable for replacing mechanical switch panels with intelligent, graphical control pads.

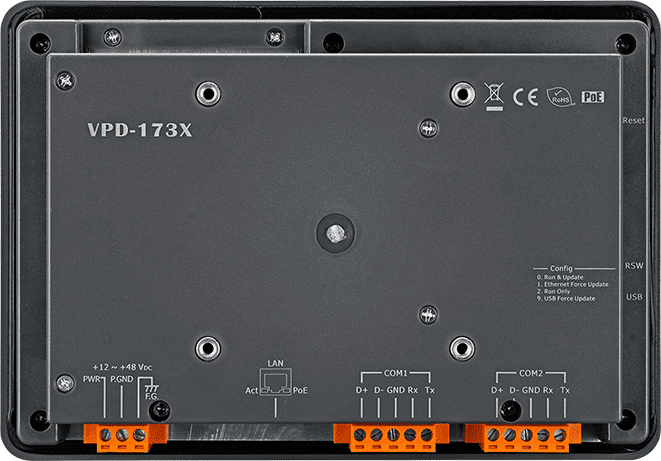

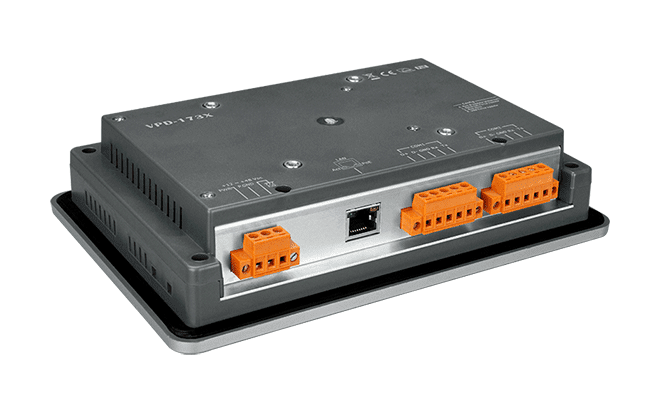

The unit is powered either by PoE (IEEE 802.3af, Class 1) or from a +12 ~ 48 VDC terminal block. It provides 16 MB SDRAM and 16 MB Flash, a real-time clock, one 10/100 Base-TX Ethernet port and two serial ports that can be configured as RS-232 or RS-485. The COM ports are 2500 VDC isolated. XV-board I/O expansion boards can be added for extra I/O.
Programming is carried out with the free HMIWorks tool, which offers a Ladder Designer for PLC users and a C language environment for IT users. The front panel is rated IP65 / NEMA 4, with a rotary switch, reset button, buzzer and status LEDs.
Applications
- Building automation
- Home automation
- Industrial automation
- Upgrading mechanical switch panels to intelligent control pads
| Product type: | HMI |
|---|---|
| Interface: | Ethernet, RS-232/RS-485 |
| Ports: | 2 x RS-232/RS-485, 1 x Ethernet |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ 48 VDC or PoE |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Wall-mount |
| Housing: | IP65 front panel |
Technische Daten
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 250 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 2 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: NEMA 4 /IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
