VXC-118U/D2 Universal PCI Serial Communication Board, 8-Port RS-232
Universal PCI card adding eight RS-232 serial ports, with a 256-byte hardware FIFO per port and speeds up to 115200 bps. Suited to bar code readers, serial printers and instrumentation.
- Eight RS-232 ports on a short PCI card
- 256-byte hardware FIFO for each port
- Baud rates from 50 to 115200 bps with full-duplex communication
- Supports 3.3 V and 5 V PCI bus
- COM port number assigned automatically or selected under software control
- Parity, data bit and stop bit options for flexible serial configuration
216,00 € pro Stück
| 1–9 Stück | 216,00 € | |
|---|---|---|
| 10–30 Stück | 210,00 € | −3 % |
| ab 31 Stück | 206,00 € | −5 % |
Produktinformationen "VXC-118U/D2 Universal PCI Serial Communication Board, 8-Port RS-232"

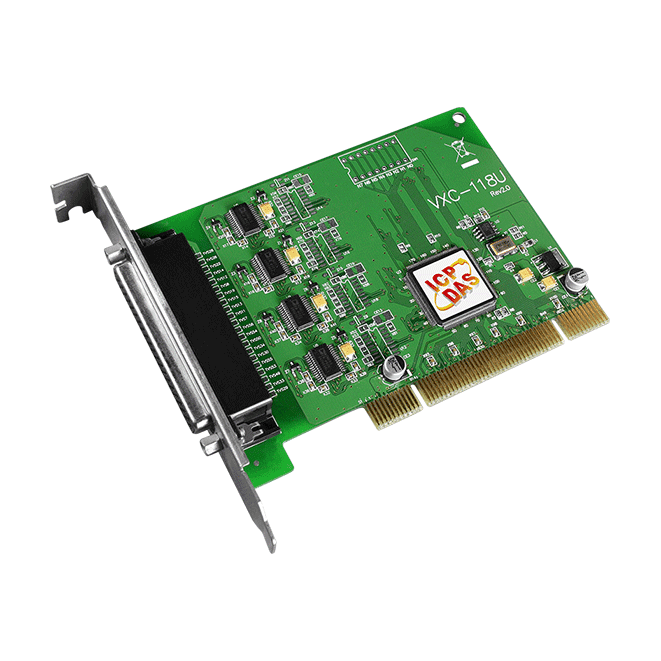

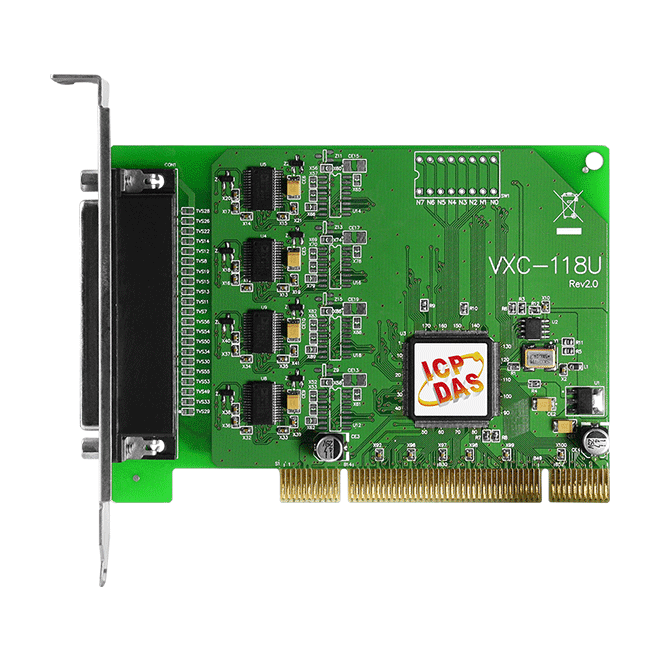

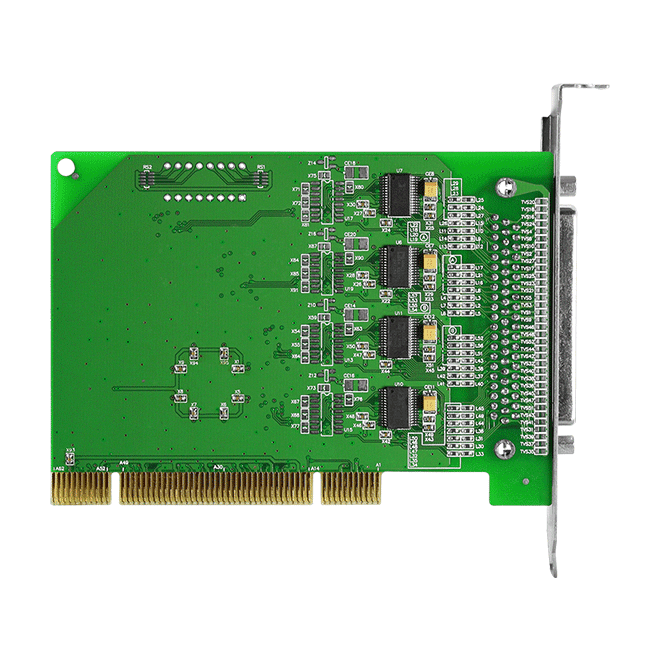

The VXC-118U/D2 is a universal PCI card that adds eight RS-232 serial ports to a host computer. It suits engineers connecting bar code readers, serial printers, intelligent sensors and instrumentation to a PCI-equipped PC.
Each port has its own 256-byte hardware FIFO and runs at rates from 50 to 115200 bps with full-duplex operation. Parity can be set to None, Even, Odd, Mark or Space, with 5 to 8 data bits and 1, 1.5 or 2 stop bits. The card supports both 3.3 V and 5 V PCI bus signalling, and the COM port number can be assigned automatically or chosen under software control.
Check the cabling accessory before ordering. The price list description for this code refers to a CA-9-6210 cable, while the ordering description for the VXC-118U CR lists a CA-PC62M D-Sub connector. The card has a female DB-62 connector.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
| Product type: | Serial communication board |
|---|---|
| Interface: | PCI, RS-232 |
| Ports: | 8 |
| Operating temperature: | 0 ~ +60°C |
Technische Daten
| Hardware | |
|---|---|

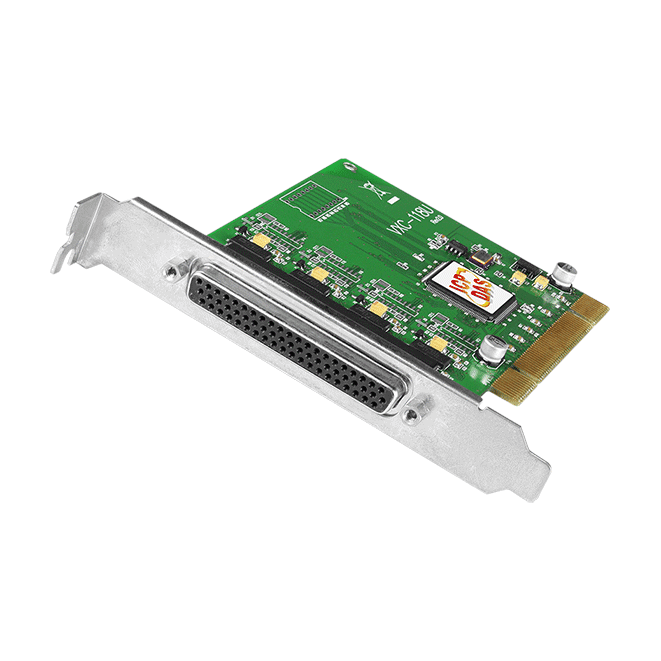

| Connector | Female DB-62 |
| COM Ports | |
| Ports | 8 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND) |
| Baud Rate | 50 - 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 121 x 132 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
