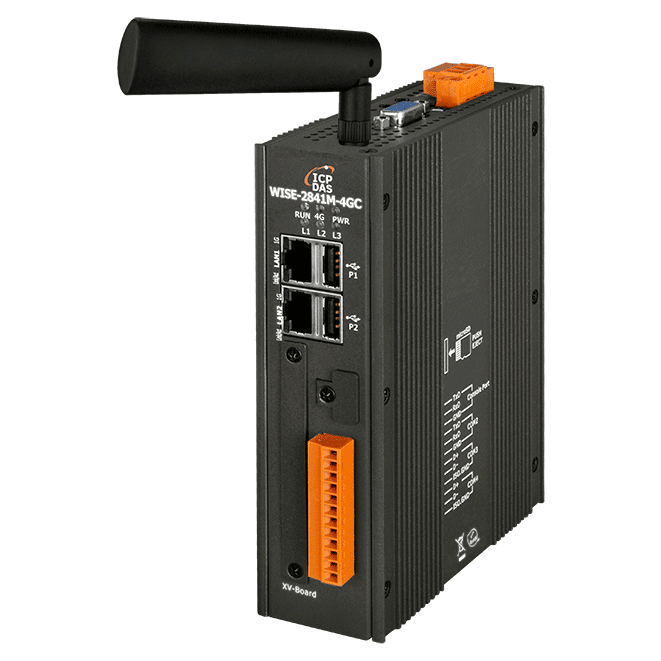

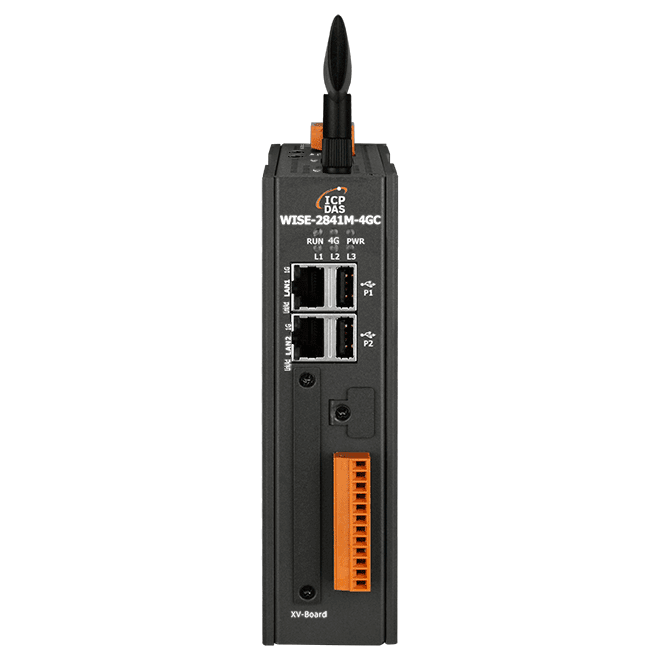

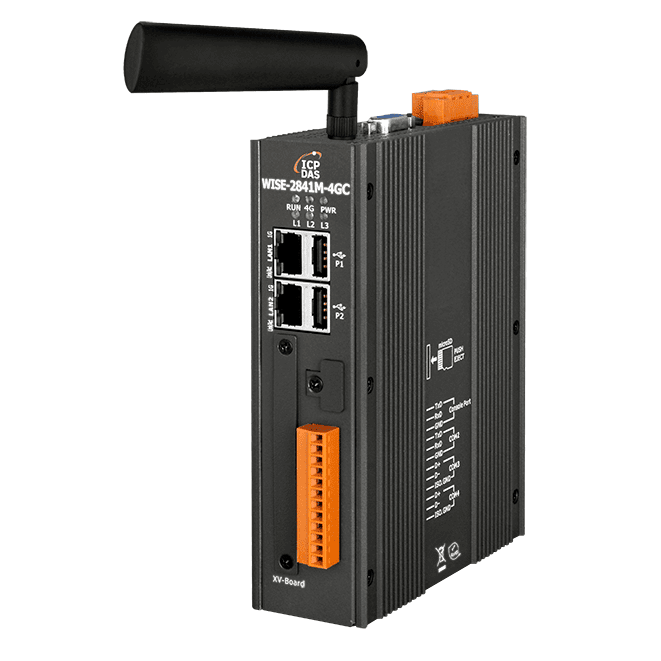

WISE-2841M-4GC IIoT Edge Controller with 4G Communication, Metal Case
Metal-cased IIoT edge controller with browser-based configuration, IF-THEN-ELSE logic and 4G wireless data links, supplied for the China frequency band.
- Browser-based setup and control logic editing, no extra software tool required
- IF-THEN-ELSE logic rules, timers, schedules and data logger functions
- Supports DCON or Modbus RTU slave modules (up to 32) and Modbus TCP slave modules (up to 16)
- Modbus TCP/RTU, MQTT, SNMP v2c/v3 and FTP client/server, with HTTPS, SFTP and FTPS encryption
- VPN function and blacklist/whitelist filtering for controlled network access
- Real-time messaging via LINE, Telegram, WeChat, SMS and email, plus AWS IoT, Microsoft Azure and IBM Bluemix connection
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WISE-2841M-4GC IIoT Edge Controller with 4G Communication, Metal Case"
The WISE-2841M-4GC CR is an IIoT edge controller that collects data from field I/O, runs local control rules and forwards results to hosts, IT systems and cloud platforms. Configuration and monitoring are carried out entirely in a web browser, so no additional software tool is needed and control logic is edited through web pages rather than programmed.
Engineers will value the rule engine and the breadth of connectivity. IF-THEN-ELSE logic, timers, schedules and data logging can run on the unit, while Modbus TCP and Modbus RTU, DCON, MQTT and SNMP v2c/v3 cover common device and network integration. Encrypted links are available through HTTPS, SFTP and FTPS, and a VPN function is provided for access to isolated secure network segments.

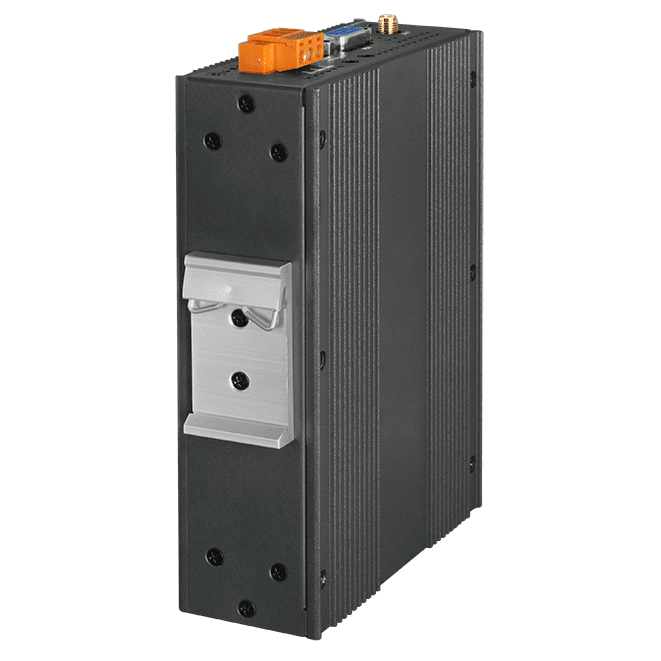

The -4GC CR variant adds 4G wireless communication and is listed for the China frequency band and for China only. Dual RJ-45 Ethernet ports, one RS-232 port and two isolated RS-485 ports give flexible wiring, and the unit mounts on a wall or DIN rail with an operating range of -25 ~ +75 °C.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis and testing equipment
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 2 x RJ-45 Ethernet |
| Isolation: | 2500 VDC (COM3/COM4) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall / DIN-rail |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client (Support SFTP/FTPS) & Server (Support TLS Encryption) • SNMP v2c/v3 & SNMP Trap • MQTT Client (Message Publish & Subscribe; Support SSL/TLS) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS • VPN |
| Function | • Web Interface for Configuration (Support HTTPS) • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (100 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify, Telegram, WeChat) • non-SSL & SSL Email sending function • SMS message sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Amazon Web Services IoT Cloud platform • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | Quad-core ARM CPU, 1.6 GHz/Core |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 2 TB microSDXC card) |
| LED Indicators | |
| Status | 1 x Power 1 x Running 1 x Modem Status |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps |
| Frequency Band | WCDMA 900/2100 MHz; TD-SCDMA 1900/2100 MHz; CDMA2000 (BC0) 800 MHz |
| 4G System | |
| Data Transmission Rate | Download: Max. 100 Mbps; Upload: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B8 MHz; TDD LTE: B38/B39/B40/B41 MHz |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 2, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 15W |
| Mechanical | |
| Dimensions (mm) | 42 × 164 × 129 (W x L x H) |
| Installation | Wall Mounting / DIN-Rail Installation; Optional |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
