WISE-5231 IIoT Edge Controller with Web-Based IF-THEN-ELSE Logic
Plastic-case WISE IIoT edge controller that runs IF-THEN-ELSE logic from a web browser, with DCON and Modbus I/O connectivity and MQTT cloud links.
- Browser-based configuration with IF-THEN-ELSE rule logic and no programming required
- Connects XV-board, DCON or Modbus RTU slave modules (up to 32) and Modbus TCP slave modules (up to 16)
- Timer, schedule, data logger and recipe functions for local automation
- Modbus TCP/RTU, SNMP, FTP, MQTT and CGI command support
- LINE and SSL/non-SSL email alert messaging
- Connection to Microsoft Azure and IBM Bluemix IoT platforms and IoTstar cloud management software
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WISE-5231 IIoT Edge Controller with Web-Based IF-THEN-ELSE Logic"

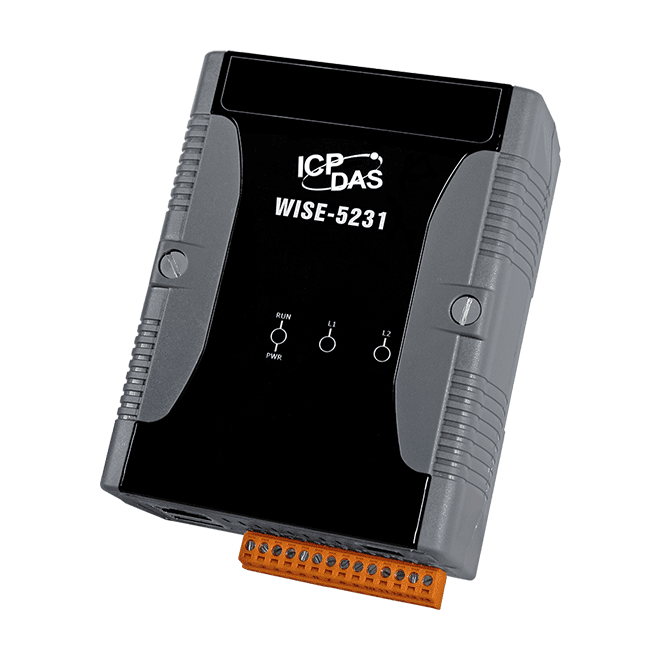

WISE-5231 CR is a plastic-case IIoT edge controller for engineers who need local control logic and I/O concentration without writing code. Logic is configured through built-in web pages in a browser, so no separate software tool is needed. IF-THEN-ELSE rules, timers, schedules and recipes run on the controller itself.
The unit collects field data from several sources at once. It supports XV-board, DCON or Modbus RTU slave modules (up to 32, with COM3 and COM4 each taking up to 16) and Modbus TCP slave modules (up to 16). Data logging with file transfer, active I/O sending, and CGI command exchange with IP cameras and network devices are also supported. Communication runs over Modbus TCP/RTU, SNMP, FTP and MQTT, with LINE and email alerts for real-time notifications.
For cloud integration, the controller connects to Microsoft Azure and IBM Bluemix IoT platforms and works with the IoTstar cloud management software. The CR ordering variant is supplied in a plastic case with a 12 ~ 48 VDC power input, a -25 ~ +75 °C operating range and DIN-rail mounting.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
- Unmanned Facility Room Monitoring
- Environment Monitoring
- Access Control
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | FTP, Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | 1 Ethernet, 3 COM |
| Isolation: | COM4 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Technische Daten
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (200 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1.0 GHz) |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power/Running |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Dimensions (mm) | 91 × 132 × 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
