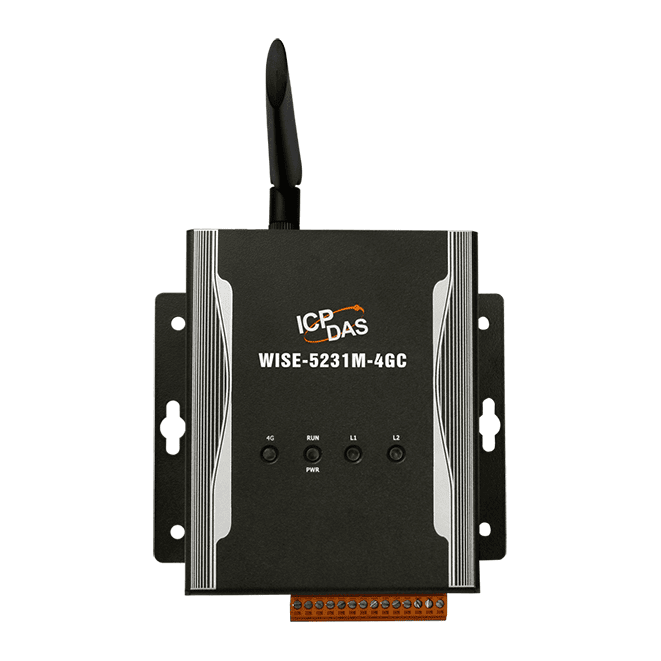

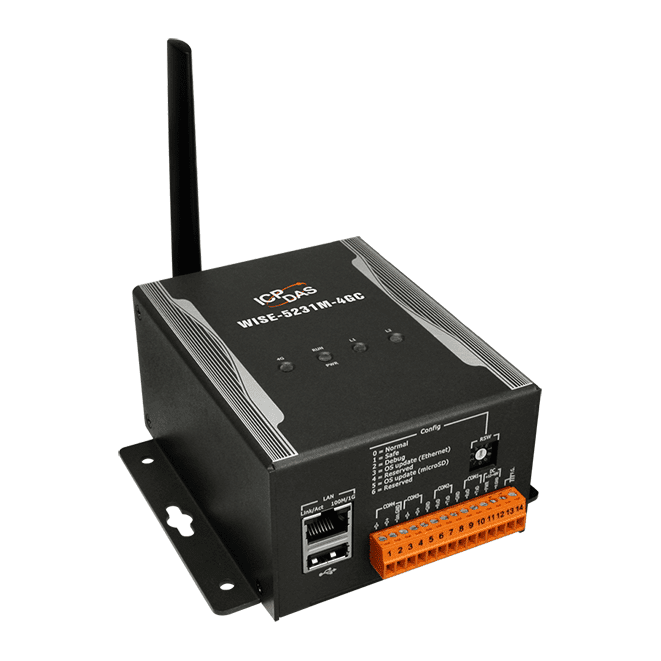

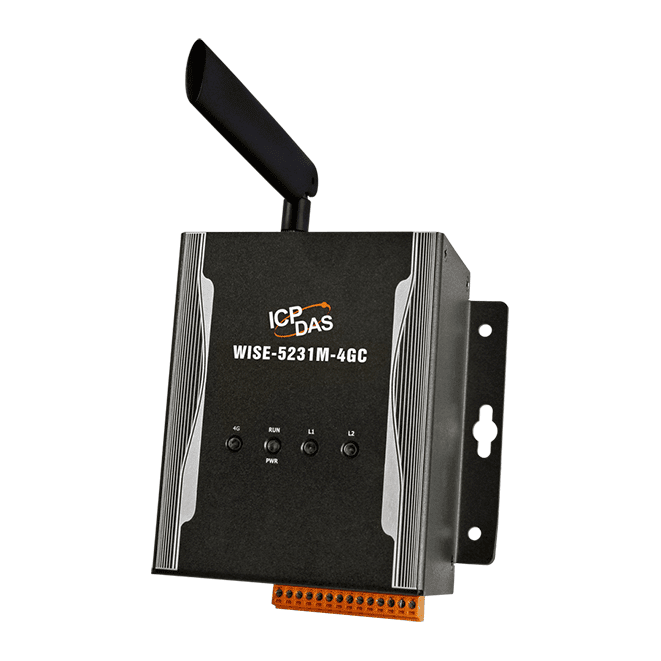

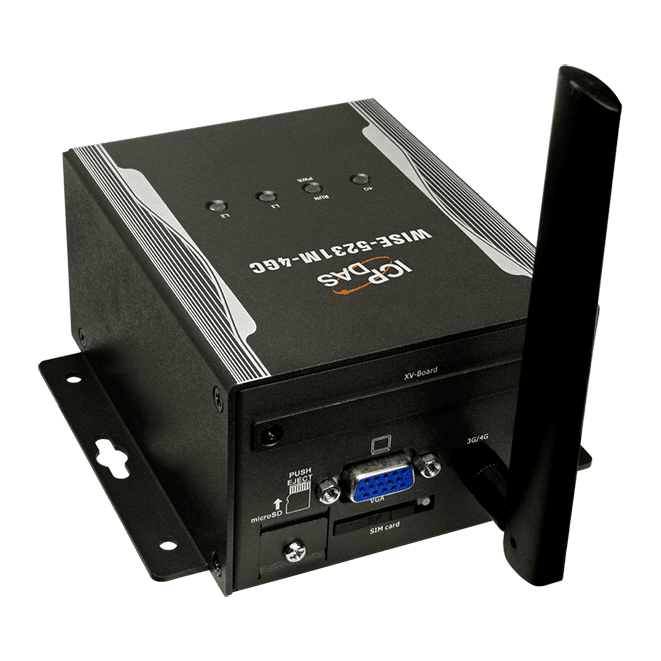

WISE-5231M-4GC IIoT Edge Controller with 4G Communication, Metal Case
Metal-cased WISE edge controller with 4G/3G wireless data links, browser-configured IF-THEN-ELSE logic and Modbus TCP/RTU and MQTT connectivity for remote monitoring and control.
- Browser-based configuration with no extra software tool; control logic is set up through web pages
- IF-THEN-ELSE logic engine with unlimited rules, plus timer, schedule and data logger functions
- Supports XV-board, DCON or Modbus RTU slave modules (up to 32, with COM3 and COM4 each taking up to 16) and Modbus TCP slave modules (up to 16)
- Modbus TCP/RTU, SNMP, FTP and MQTT protocols, with non-SSL and SSL options for MQTT and email
- Real-time alerts by LINE, SMS and email, and connection to Microsoft Azure, IBM Bluemix and IoTstar
- 4G/3G wireless data communication on the frequency band for China, with a 1.0 GHz 32-bit ARM CPU and built-in 32 GB microSD card
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WISE-5231M-4GC IIoT Edge Controller with 4G Communication, Metal Case"
The WISE-5231M-4GC CR is a metal-cased IIoT edge controller for remote logic control and monitoring. Its 4G wireless data communication uses the frequency band for China, making it suited to sites where cellular backhaul is needed instead of a fixed network connection.
Control logic is created entirely in the built-in web pages, so no separate software tool or programming is needed. The IF-THEN-ELSE rule engine supports unlimited rules, alongside timer, schedule, data logger and recipe functions, with mathematical operations and internal registers available for process logic.
On the field side, the controller accepts XV-board, DCON and Modbus RTU slave modules, plus Modbus TCP slave modules, and can exchange data with IP cameras and network devices through CGI commands. Data reaches IT, MES or SCADA systems over Modbus TCP/RTU, SNMP, FTP or MQTT, and it can publish directly to Microsoft Azure, IBM Bluemix or IoTstar cloud services.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
- Unmanned Facility Room Monitoring
- Environment Monitoring
| Product type: | IIoT Edge Controller |
|---|---|
| Interface: | RJ-45, RS-232, RS-485 |
| Protocol: | FTP, Modbus TCP/RTU, MQTT, SNMP |
| Ports: | RJ-45 x 1, COM2-COM4 |
| Isolation: | COM4 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • I/O channel monitoring and control • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Data Logger operation (Unlimited set supported) • Internal Register operation (200 set supported) • Recipe operation (Unlimited set supported) • Instant message sending function (LINE Notify) • non-SSL & SSL Email sending function • SMS message sending function • SNTP Time Synchronization |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1.0 GHz) |
| Storage Expansion | Built-in one 32 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power/Running 1 x Modem Status 1 x Mobile Network Status |
| 2G System | |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10; GPRS station class B |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps |
| Frequency Band | WCDMA 900/2100 MHz; TD-SCDMA 1900/2100 MHz; CDMA2000 (BC0) 800 MHz |
| 4G System | |
| Data Transmission Rate | Download: Max. 100 Mbps; Upload: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B8 MHz; TDD LTE: B38/B39/B40/B41 MHz |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | I-7000/M-7000/tM/DL/CL/DLW/LC/IR/iSN Series Module WISE-7100/(P)ET-7000/WF-2000 Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| IP Camera | iCAM Series Module |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 6.5W |
| Mechanical | |
| Dimensions (mm) | 117 × 126 × 58 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
