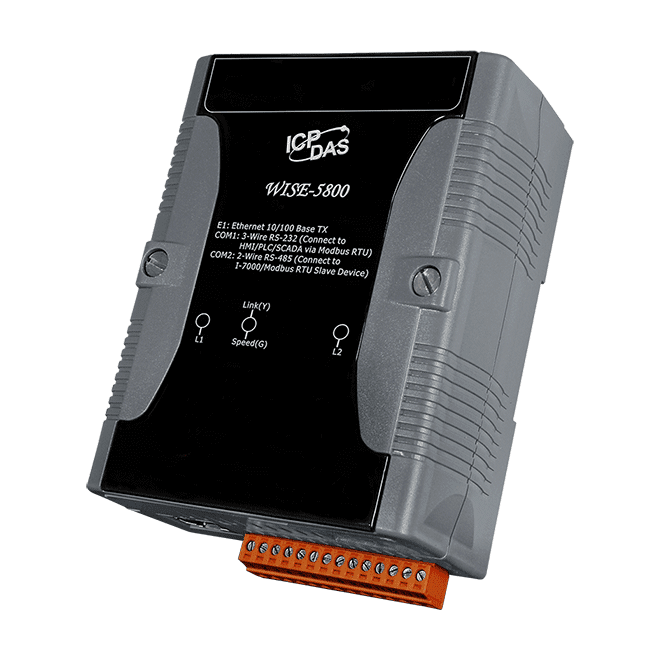

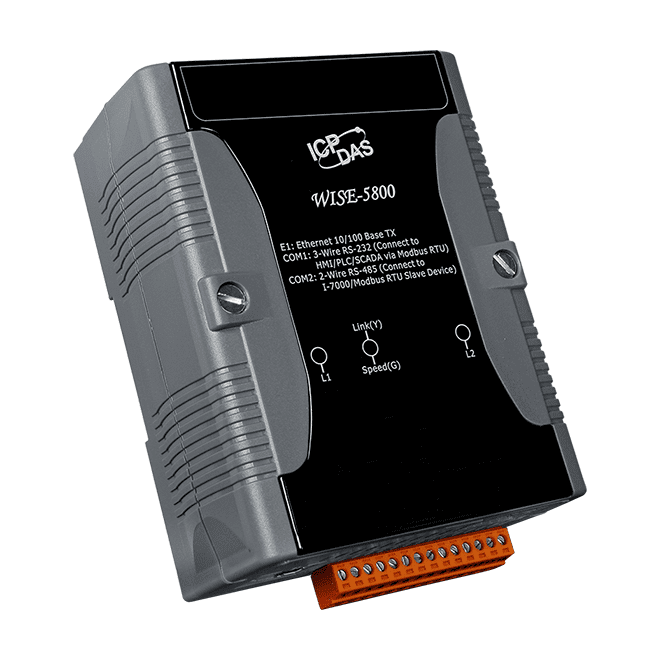

WISE-5800 Web-Configured I/O Controller for Modbus RTU and DCON Devices
Browser-configured WISE controller with IF-THEN-ELSE logic, XW-Board I/O expansion and support for up to 16 I-7000 modules or 10 Modbus RTU slave devices.
- Browser-based configuration with no extra software tool required
- IF-THEN-ELSE logic supporting 36 rules
- XW-Board I/O expansion bus for D/I, D/O, A/D and D/A functions
- Supports up to 16 I-7000 remote I/O modules or 10 Modbus RTU slave devices
- Modbus TCP and Modbus RTU protocols for SCADA integration
- microSD data logger with event-triggered or periodic recording and FTP or Email file transfer
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WISE-5800 Web-Configured I/O Controller for Modbus RTU and DCON Devices"
WISE-5800 CR is a web-configured controller for remote logic control and monitoring. Control logic is set up through its built-in web pages in a browser, so no separate software tool is needed and no conventional programming is involved. IF-THEN-ELSE rules, timers, schedules and recipes are all configured this way.
The unit extends its I/O through an XW-Board expansion bus for digital and analogue channels, and it can also drive remote I/O from the I-7000 series (up to 16 modules) or Modbus RTU slave devices (up to 10). This lets engineers mix I/O types and vendors to suit the application.
For supervisory systems, the controller speaks Modbus TCP and Modbus RTU for straightforward SCADA integration. An onboard microSD data logger records I/O values on an event trigger or at regular intervals, and the files can be sent by FTP or non-SSL Email.
- Typical areas include building, factory and machine automation.
- Suited to remote maintenance and remote diagnosis or testing equipment.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis and testing equipment
| Product type: | I/O Controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 3 |
| Isolation: | Non-isolated COM ports |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client • CGI Command (Sending) • Active I/O (Modbus TCP Master) |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (36 rule supported) • I/O channel monitoring and control • Timer operation (12 set supported) • Schedule operation (12 set supported) • Data Logger operation (1 set supported) • Internal Register operation (48 set supported) • Recipe operation (12 set supported) • non-SSL Email sending function • SNTP Time Synchronization |
| CPU Module | |
| CPU | 16-bit CPU (80 MHz) |
| Storage Expansion | Support 1G/2G/4G/8G/16G/32G microSD card |
| LED Indicators | |
| Status | 1 x System Status 1 x MicroSD Card Status 1 x Ethernet Link Status |
| I/O Expansion | |
| I/O Type | XW-board |
| Remote Module Support | I-7000 Series Module Modbus RTU Slave Module |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: RS-232 (TxD, RxD, RTS, CTS, GND), non-isolated, Speed: 115200 bps max. COM 2: RS-485 (Data+, Data-) with internal self-tuner ASIC; non-isolated, Speed: 115200 bps max. |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | 12 ~ 48 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 91 × 123 × 52 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
