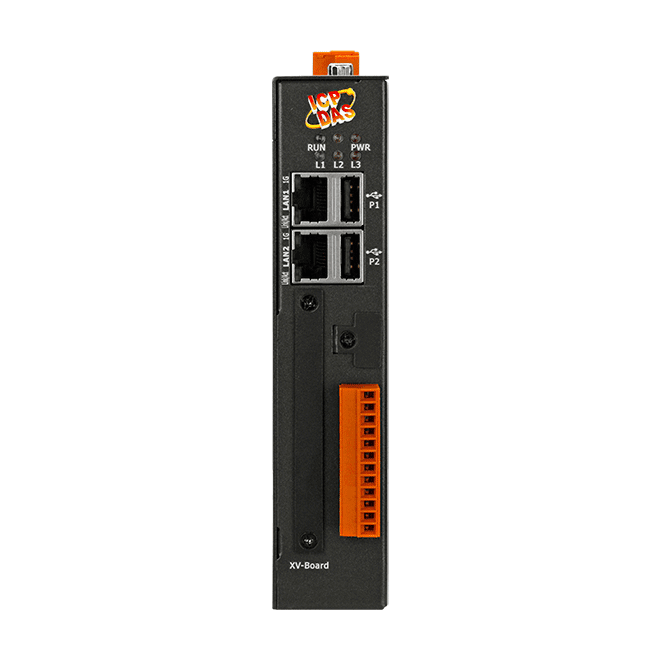

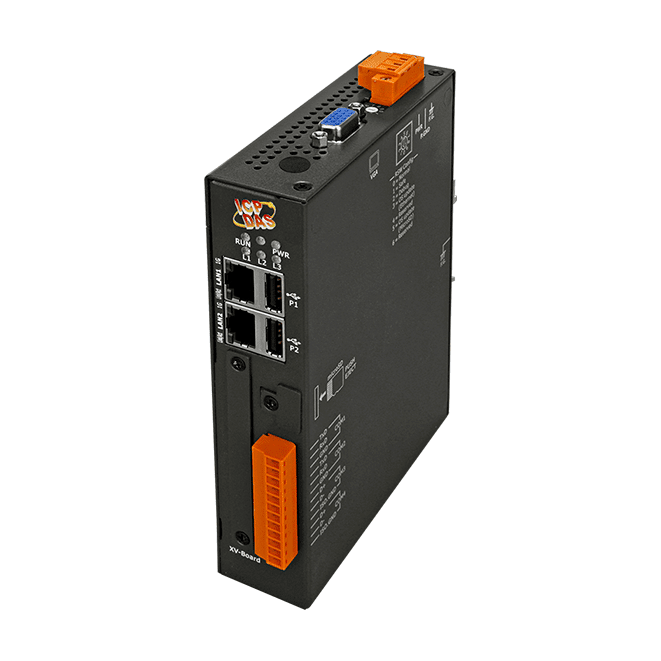

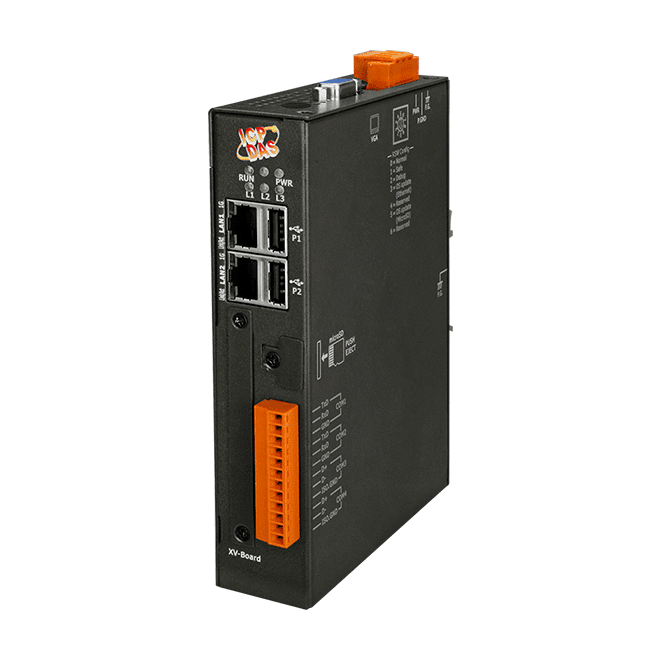

WP-2241M-CE7 WinCE 7.0 PAC with Cortex-A8 1 GHz CPU and I/O Expansion Bus
Metal-cased Windows CE 7.0 programmable automation controller built on a 1 GHz Cortex-A8 CPU, with two 10/100/1000BASE-T Ethernet ports, four serial ports and an I/O expansion bus.
- Cortex-A8 1 GHz CPU running Windows CE 7.0 Professional with hard real-time capability
- 512 MB DDR3 SDRAM, 256 MB Flash and microSD storage up to 32 GB
- 64 KB FRAM for data retention
- 2 x 10/100/1000BASE-T Ethernet, 2 x RS-232 and 2 x RS-485 serial ports (RS-485 2500 VDC isolated)
- 2 x USB 2.0 host ports and built-in VGA output
- I/O expansion bus interface for the optional XV-board high-protection I/O
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WP-2241M-CE7 WinCE 7.0 PAC with Cortex-A8 1 GHz CPU and I/O Expansion Bus"
The WP-2241M-CE7 is a WinCE PAC for engineers who need a Windows CE 7.0 controller with a 1 GHz Cortex-A8 processor and hard real-time capability in a metal housing. Its 512 MB SDRAM, 256 MB Flash and microSD slot (up to 32 GB) provide space for application programs, images and data, and 64 KB of FRAM is available for data retention.
Connectivity centres on two 10/100/1000BASE-T Ethernet ports, two RS-232 and two RS-485 serial ports (the RS-485 ports 2500 VDC isolated), two USB 2.0 host ports and a built-in VGA output. An I/O expansion bus interface accepts the XV-board, an optional expansion board providing high-protection I/O.
The unit includes a real-time clock, a dual watchdog timer and a 64-bit hardware serial number for software protection. It is designed for DIN-rail mounting with an IP30 rating and an operating range of -25 ~ +75 °C.
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0 |
| Ports: | 2 x Ethernet, 4 x serial, 2 x USB 2.0 |
| Isolation: | 2500 VDC (RS-485) |

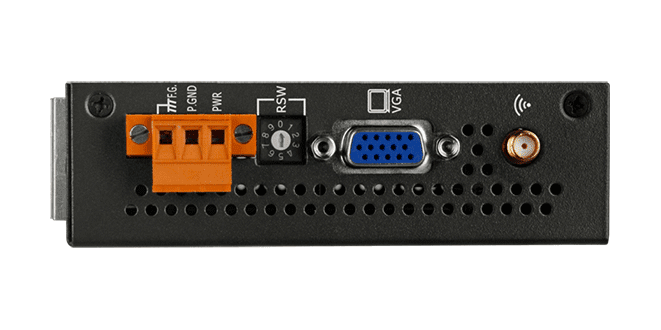

| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 Professional |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 3 x Programmable |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 2 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 35 x 167 x 119 (W x L x H) |
| Installation | DIN-Rail mounting |
| Ingress Protection Rating | IP30 |
| Weight | 600 g |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
