WP-5239-CE7 WinPAC-5000 InduSoft PAC with Windows CE 7.0
Cortex-A8 1GHz WinPAC-5000 controller with InduSoft (300 tags) runtime pre-installed on Windows CE 7.0, offering a 10/100/1000M Ethernet port and four serial ports.
- 1GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- Windows CE 7.0 Professional with InduSoft (300 tags) runtime pre-installed
- Hard real-time capability
- 10/100/1000M Ethernet port plus four serial ports (RS-232 and RS-485, one isolated)
- Optional XV-board on the I/O expansion bus
- 64-bit hardware serial number for software protection
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WP-5239-CE7 WinPAC-5000 InduSoft PAC with Windows CE 7.0"
The WP-5239-CE7 CR is a WinPAC-5000 programmable automation controller built around a 1GHz Cortex-A8 processor and Windows CE 7.0 Professional. The InduSoft runtime, licensed for 300 tags, is pre-installed, so the controller can run InduSoft applications directly on the device for engineers who want a Windows CE platform with SCADA-style tag handling.

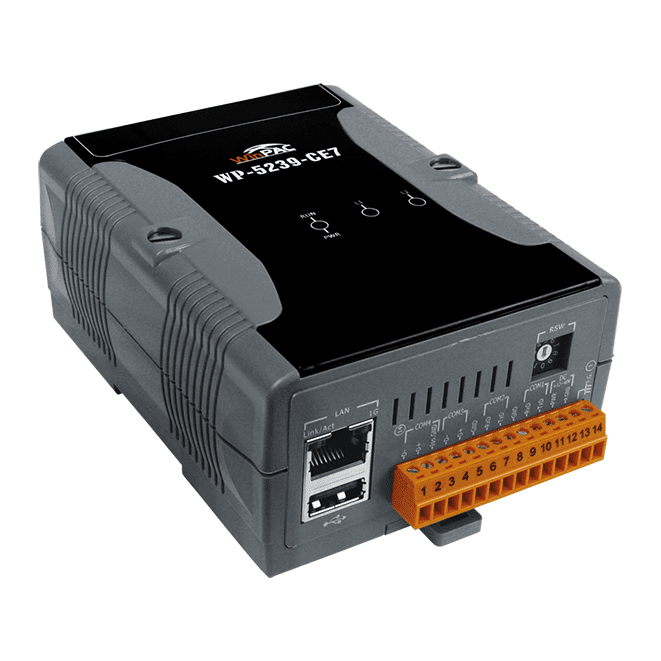

Connectivity is provided by a 10/100/1000M Ethernet port, two non-isolated RS-232 ports, two RS-485 ports (one non-isolated, one isolated to 2500 VDC) and a USB port. An optional XV-board can be fitted to the I/O expansion bus to add input and output channels. Program files, images and data can be stored in the 256 MB built-in Flash or on the microSD socket, which ships with a 4 GB card.
The unit is designed for DIN-rail installation and accepts a +12 to +48 VDC supply. It operates from -25 to +75 °C and is listed as RoHS and WEEE compliant. The CR suffix in the ordering code corresponds to the InduSoft 300-tag variant with RoHS listing.
Applications
- Industrial automation controllers running InduSoft applications
- Systems requiring VGA display output and multiple serial device connections
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Ports: | 1 Ethernet, 4 serial |
| Isolation: | 2500 VDC (one RS-485 port) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | DDR3 SDRAM: 512 MB |

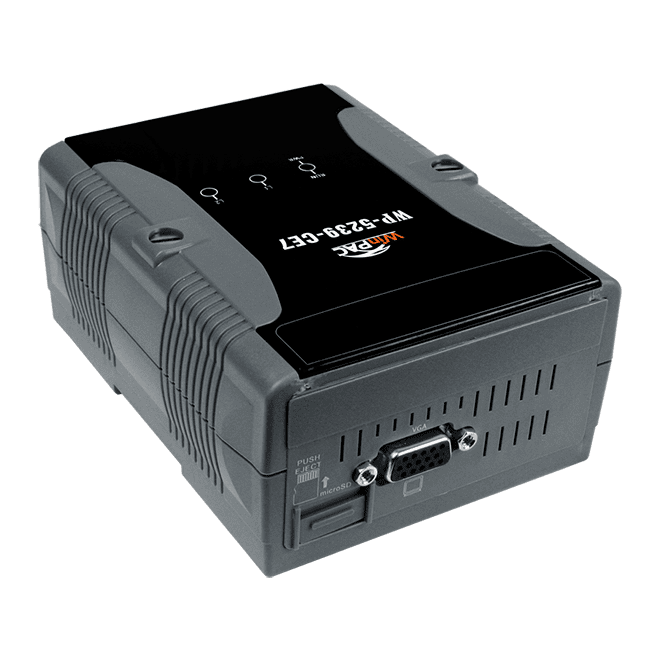

| Storage | MicroSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card); Flash 256 MB; |
| Non-Volatile Memory | FRAM: 64 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |

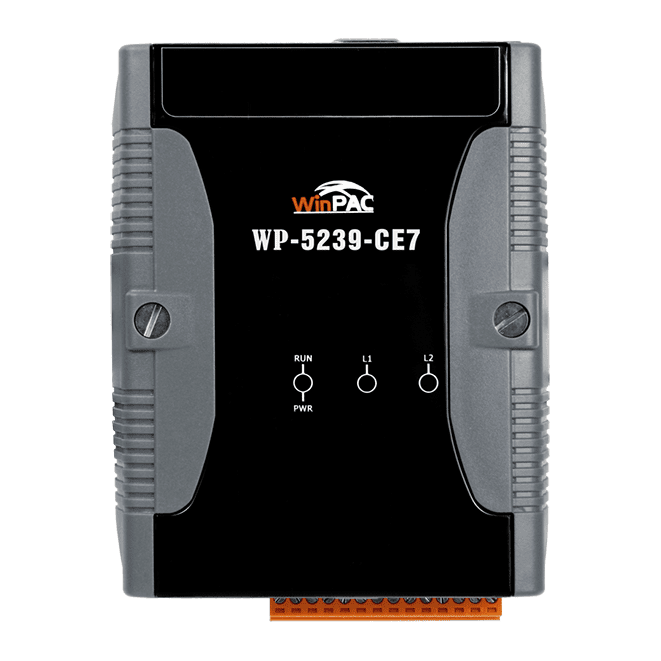

| Status | 1 x Power and Communication 2 x User defined |
| I/O Expansion | |
| I/O Type | Yes, one optional XV-board |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, Non-isolated; 1 x RS-485, Non-isolated; 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 1 x USB |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
