WP-8428-CE7 4-Slot Win-GRAF PAC, Cortex-A8 1 GHz, Windows CE 7.0
4-slot Win-GRAF PAC with a 1.0 GHz Cortex-A8 CPU and Windows CE 7.0, running IEC 61131-3 soft logic and accepting I-8K and I-87K I/O expansion modules.
- Four expansion slots for I-8K and I-87K I/O modules
- 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- Windows CE 7.0 with embedded Win-GRAF SoftLogic (IEC 61131-3)
- Modbus RTU/TCP master and slave, Modbus ASCII master and OPC UA server
- Hard real-time capability with dual watchdog timer
- VGA output at 800 x 600 and 1024 x 768 with eLogger HMI
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WP-8428-CE7 4-Slot Win-GRAF PAC, Cortex-A8 1 GHz, Windows CE 7.0"

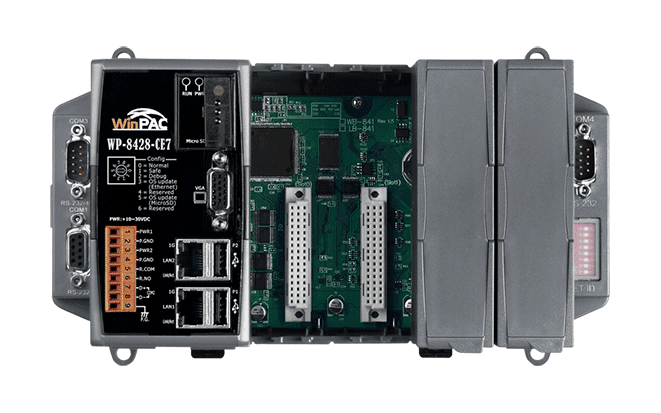

WP-8428-CE7 is a Win-GRAF programmable automation controller built on Windows CE 7.0, with a 1.0 GHz Cortex-A8 processor and a rugged plastic casing. It runs Embedded Win-GRAF SoftLogic programmed to IEC 61131-3, so control logic can be developed in a standard PLC environment and deployed on a PC-like operating system.
The controller provides four expansion slots for I-8K (parallel-type) and I-87K (serial-type) I/O modules. Its hard real-time capability supports deterministic control, and the built-in dual watchdog timer adds a further level of supervision. Communication options include OPC UA, Modbus RTU/TCP master and slave, and Modbus ASCII master, together with DCON and user-defined protocols.
Engineers can build HMI and data management applications on the VGA output, using the eLogger HMI function, the embedded SQL server and the FTP and web servers. The CR ordering suffix identifies this 4-slot variant; the 1-slot WP-8128-CE7 and 8-slot WP-8828-CE7 are the other members of the series.
Applications
- Logic control applications developed to IEC 61131-3
- HMI and data management applications
- Data logging and file access
- Modular I/O expansion for automation tasks
| Product type: | Win-GRAF PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Protocol: | Modbus RTU/TCP, OPC UA |
| Ports: | 2 x RJ-45 |
| Isolation: | 3000 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 512 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1x Power, 1 x System/Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | WP-8128-CE7: 1 WP-8428-CE7: 4 WP-8828-CE7: 8 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | WP-8128-CE7: 7.3W WP-8428-CE7: 9.1W WP-8828-CE7: 9.6W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | WP-8128-CE7: 95 x 132 x 111 (W x L x H) WP-8428-CE7: 231 x 132 x 111 (W x L x H) WP-8828-CE7: 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
