WP-8828-CE7 Win-GRAF PAC, 8-Slot, Cortex-A8 1 GHz, Windows CE 7.0
8-slot Win-GRAF soft PLC with a 1.0 GHz Cortex-A8 CPU and Windows CE 7.0, supporting I-8K and I-87K expansion I/O and redundant power inputs.
- Eight expansion slots for I-8K (parallel-type) and I-87K (serial-type) I/O modules
- 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- Windows CE 7.0 with embedded Win-GRAF SoftLogic (IEC 61131-3) and hard real-time capability
- Modbus TCP/IP and Modbus RTU master and slave, OPC UA server and DCON protocols
- Two 10/100/1000 Base-TX Ethernet ports, RS-232 and 3000 VDC isolated RS-485
- VGA output at 800 x 600 or 1024 x 768 with eLogger HMI support
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WP-8828-CE7 Win-GRAF PAC, 8-Slot, Cortex-A8 1 GHz, Windows CE 7.0"

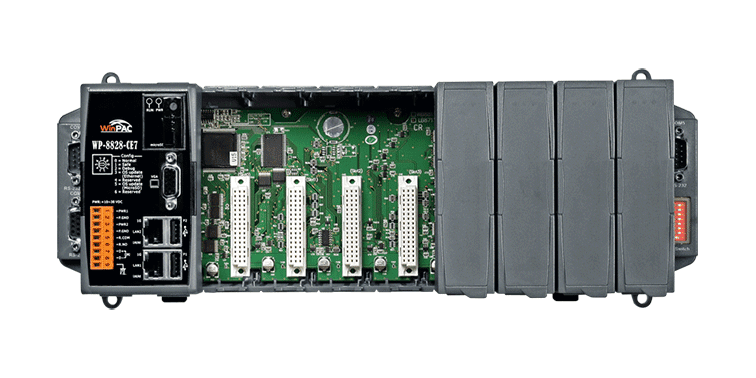

The WP-8828-CE7 CR is the eight-slot model in the Win-GRAF WinPAC-8000-CE7 range from ICP DAS. It pairs a 1.0 GHz Cortex-A8 controller with Windows CE 7.0 and an embedded Win-GRAF SoftLogic runtime. Its eight expansion slots accept I-8K (parallel-type) and I-87K (serial-type) I/O modules, so the controller can be configured for larger I/O counts than the one- or four-slot variants.
Windows CE 7.0 provides hard real-time capability and deterministic control, with a PC-like display and operating environment. Control logic is developed in Win-GRAF following IEC 61131-3, while HMI and data management applications can be written in VB .NET or C# and exchange data with the Win-GRAF logic.
Communication options include an OPC UA server, Modbus TCP/IP and Modbus RTU master and slave, and DCON protocols. Two RJ-45 10/100/1000 Base-TX ports, one RS-232 port and one RS-485 port (3000 VDC isolated) are fitted, alongside two USB 2.0 ports, a VGA output and redundant power inputs.
Applications
- Logic control applications developed in Win-GRAF (IEC 61131-3)
- HMI and data management applications developed in VB .NET or C#
- Automation tasks requiring expandable I/O with I-8K and I-87K modules
| Product type: | Win-GRAF PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Protocol: | DCON, Modbus RTU, Modbus TCP, OPC UA |
| Ports: | 2 x RJ-45, 2 x USB 2.0, 1 x RS-232, 1 x RS-485 |
| Isolation: | 3000 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC, redundant |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 512 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1x Power, 1 x System/Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | WP-8128-CE7: 1 WP-8428-CE7: 4 WP-8828-CE7: 8 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | WP-8128-CE7: 7.3W WP-8428-CE7: 9.1W WP-8828-CE7: 9.6W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | WP-8128-CE7: 95 x 132 x 111 (W x L x H) WP-8428-CE7: 231 x 132 x 111 (W x L x H) WP-8828-CE7: 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
