WP-9821-CE7 WinCE 7.0 PAC, 8-slot Metal Controller with Cortex-A8 CPU
8-slot Windows CE 7.0 PAC with a 1.0 GHz Cortex-A8 CPU, dual Gigabit Ethernet, four isolated serial ports and I-9K/I-97K expansion slots for DIN-rail or wall mounting.
- Cortex-A8 CPU at 1.0 GHz running Windows CE 7.0 with hard real-time capability
- 8 expansion slots for I-9K and I-97K series I/O modules
- 2 x 10/100/1000BASE-T Ethernet ports with auto MDI/MDI-X
- 4 x RS-232/RS-485 serial ports, each with 3000 VDC isolation
- 2 x USB 2.0 host ports and VGA display output
- 512 MB SDRAM, 256 MB Flash, optional microSD up to 32 GB, 128 KB MRAM and 16 KB FRAM for data retention
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "WP-9821-CE7 WinCE 7.0 PAC, 8-slot Metal Controller with Cortex-A8 CPU"

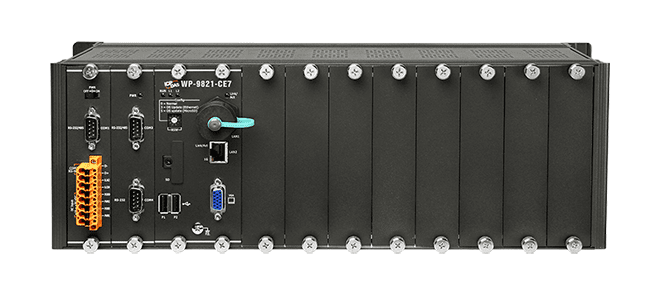

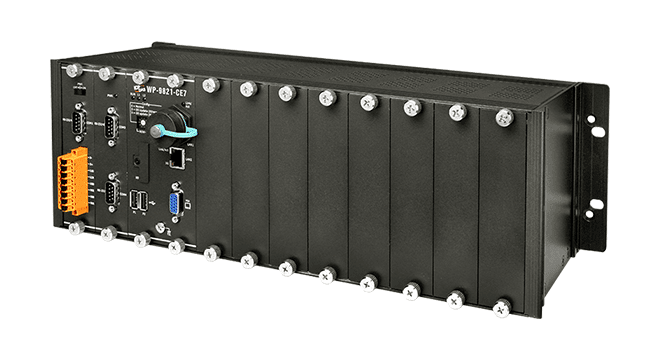

The WP-9821-CE7 is an 8-slot programmable automation controller built around a Cortex-A8 processor at 1.0 GHz running Windows CE 7.0. It suits engineers who want a PC-style software environment for machine control, data handling and supervisory tasks, with eight expansion slots for I-9K (parallel-type) and I-97K (serial-type) I/O modules.
Connectivity is covered by two 10/100/1000BASE-T Ethernet ports, four serial ports configurable as RS-232 or RS-485 with 3000 VDC isolation, two USB 2.0 host ports and a built-in VGA output for a local display. Memory comprises 512 MB SDRAM, 256 MB Flash and a microSD slot for storage expansion, while 128 KB MRAM and 16 KB FRAM support data retention.
The metal casing is rated IP30 and operates from -25 ~ +75 °C. Dual watchdog timers, a redundant power input with an alarm relay and a 64-bit hardware serial number help with system reliability and software protection. Choose the WP-9821-CE7 CR when you need the full eight-slot configuration; the WP-9221-CE7 and WP-9421-CE7 offer two and four slots respectively.
Applications
- PC-based control software such as Visual Basic.NET, Visual C# and Visual C++
- SCADA systems
- Soft PLC applications
- Machine control with I-9K and I-97K expansion I/O
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0, VGA |
| Ports: | 2 Ethernet, 4 serial, 2 USB |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | WP-9221-CE7: 2 WP-9421-CE7: 4 WP-9821-CE7: 8 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Capacity | WP-9221-CE7: 3.7 A, 5 V supply to CPU and backplane; 3.3 A, 5 V supply to I/O expansion slots, total 35 W WP-9421-CE7: 3.8 A, 5 V supply to CPU and backplane; 3.2 A, 5 V supply to I/O expansion slots, total 35 W WP-9821-CE7: 4.0 A, 5 V supply to CPU and backplane; 3.0 A, 5 V supply to I/O expansion slots, total 35 W |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | WP-9221-CE7: 16.6 W (0.69 A @ 24 VDC) WP-9421-CE7: 16.8 W (0.7 A @ 24 VDC) WP-9821-CE7: 18 W (0.75 A @ 24 VDC) |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | WP-9221-CE7: 239 x 133 x 164 WP-9421-CE7: 300 x 133 x 164 WP-9821-CE7: 422 x 133 x 164, (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Ingress Protection Rating | IP30 |
| Weight | WP-9221-CE7: 2235 g WP-9421-CE7: 2760 g WP-9821-CE7: 3455 g |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
